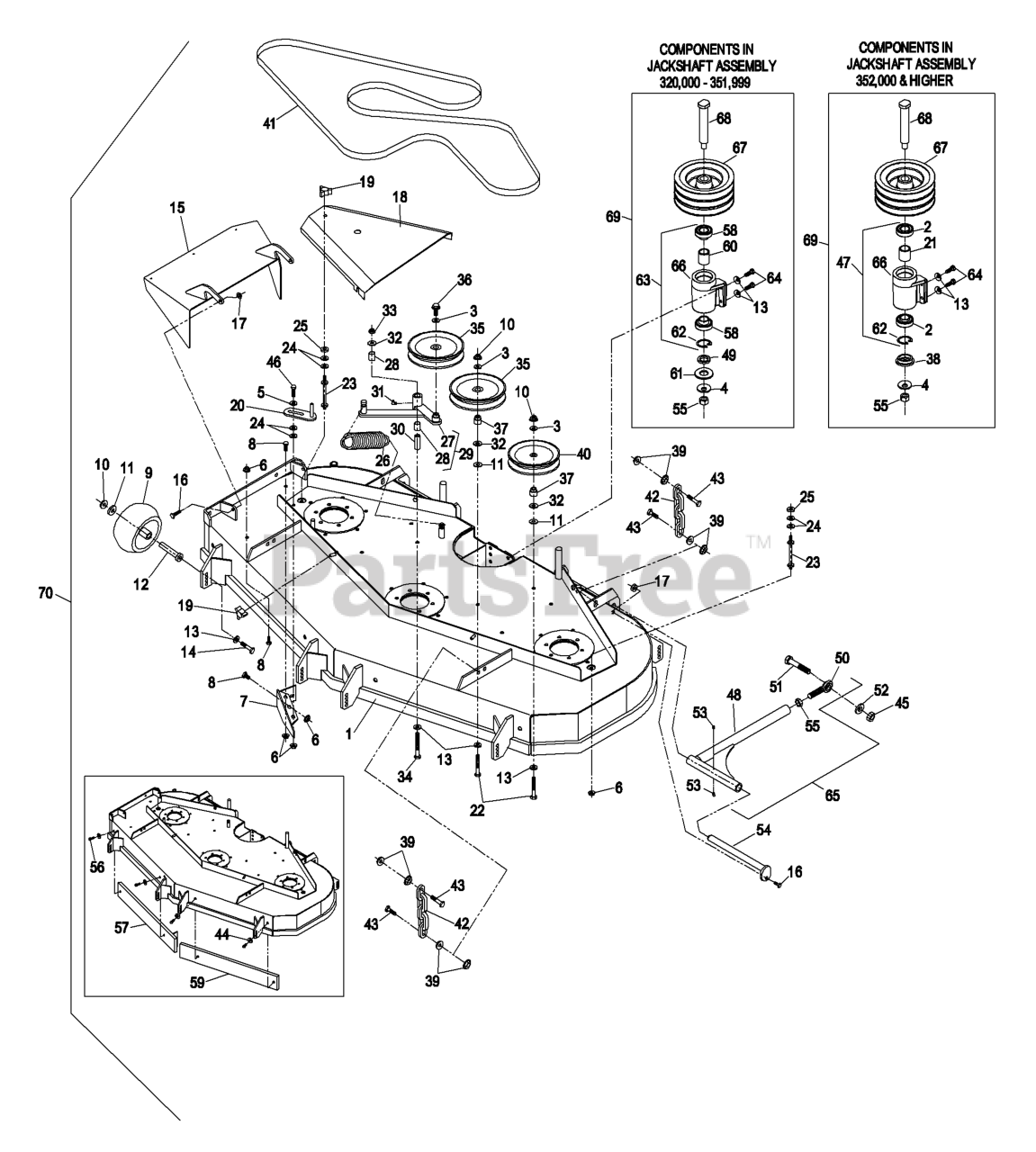

LZ27DD724 - Exmark 72" Lazer Z XP Zero-Turn Mower, 27hp Briggs & Stratton (SN: 320000 - 369999) (2002) 60" Deck Group Parts Diagram

72" Lazer Z XP Zero-Turn Mower, 27hp Briggs & Stratton

60" Deck Group Parts Diagram

  • Title

1

Exmark 103-1423-01

103-1589
(Superseded to 103-1589)

$

$

Not available

Exmark 103-1589

ASM,DECK W/DECALS XP604

$

$

Not available

2

Exmark 103-2477

BEARING-JACKSHAFT

Note: For Serial Nos. 352,000 and higher. Apply Mobil HTS grease (or a food-grade antisieze) between the jackshaft & bearings and jackshaft & sheaves. DO NOT use a copper or nickel based antisieze.

$67.99

$

In Stock, Qty 9

0

3

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Exmark 1-513208

WASHER-SPRING

$10.99

$

Usually ships in 3-6 days

0

5

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

6

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

7

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

$56.99

$

Usually ships in 3-6 days

0

8

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

9

Exmark 1-603299

ROLLER-SCALP, ANTI

Note: Kit P/N 103-3168 includes antiscalp roller, bushing, and mounting hardware.

$26.99

$

In Stock, Qty 20+

0

10

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

11

Exmark 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

12

Exmark 1-603602

BUSHING-ROLLER

$26.99

$

In Stock, Qty 20+

0

13

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

14

Exmark 98-5961

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

15

Exmark 103-1469-01

103-5840-01
(Superseded to 103-5840-01)

$206.99

$

Usually ships in 3-6 days

0

16

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Exmark 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Exmark 1-633084-01

SHIELD,BELT

$120.99

$

In Stock, Qty 5

0

Exmark 103-1470-01

DISCONTINUED

$

$

Not available

19

Exmark 1-323385

KNOB-3 PRONG

$5.99

$

In Stock, Qty 20+

0

20

Exmark 1-322110

GUIDE-BELT

$13.99

$

In Stock, Qty 7

0

21

Exmark 103-2534

SPACER-BEARING

Note: For Serial Nos. 352,000 and higher.

$9.49

$

In Stock, only 3 left!

0

22

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

23

Exmark 1-303537

STUD-SHIELD, BELT (SHORT)

$6.99

$

In Stock, Qty 9

0

24

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Exmark 1-323417

WASHER

$3.99

$

In Stock, Qty 20+

0

26

Exmark 1-633151

116-6317
(Superseded to 116-6317)

$31.99

$

In Stock, Qty 20+

0

27

Exmark 1-632119-01

103-5693
(Superseded to 103-5693)

$182.99

$

In Stock, Qty 7

0

28

Exmark 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

29

Exmark 1-634244

103-5693
(Superseded to 103-5693)

$182.99

$

In Stock, Qty 7

0

30

Exmark 1-603044

BUSHING

$15.99

$

In Stock, Qty 20+

0

31

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.99

$

In Stock, Qty 20+

0

32

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

33

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

34

Unknown

$

$

Not available

35

Exmark 1-633109

126-7685
(Superseded to 126-7685)

$68.99

$

In Stock, Qty 16

0

36

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

37

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

38

Exmark 103-2535

SPACER-GUARD, BOTTOM

Note: For Serial Nos. 352,000 and higher.

$13.99

$

In Stock, only 2 left!

0

39

Exmark 32128-37

NUT-HF

$4.99

$

In Stock, Qty 20+

0

40

Exmark 1-603805

PULLEY-IDLER

$67.99

$

In Stock, Qty 6

0

41

Exmark 1-633127

BELT,BLADE DRIVE
(Superseded to 1-633127-SL)

$136.99

$

In Stock, Qty 20+

0

42

Exmark 1-633447

CHAIN-LIFT, DECK

$11.99

$

In Stock, only 1 left!

0

43

Exmark 103-1898

SCREW-HH

$2.49

$

In Stock, Qty 19

0

44

Exmark 1-513435

WASHER-SPRING

$6.49

$

In Stock, Qty 20+

0

45

Exmark 3217-11

NUT-HEX

$3.99

$

In Stock, Qty 15

0

46

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

47

Exmark 103-2544

103-9746
(Superseded to 103-9746)

$287.99

$

In Stock, only 3 left!

0

48

Exmark 103-1355-01

109-1184
(Superseded to 109-1184)

$153.99

$

Usually ships in 3-6 days

0

49

Exmark 1-323533

SPACER-PULLEY/BEARING

Note: For Serial Nos. 320,000 - 351,9999.

$5.99

$

In Stock, only 4 left!

0

50

Exmark 1-633029

BALLJOINT-SPHERICAL

$71.99

$

In Stock, Qty 11

0

51

Exmark 327-28

SCREW-HH

$19.99

$

In Stock, Qty 5

0

52

Exmark 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

53

Exmark 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

0

54

Exmark 1-632199-01

PIN-STRUT

$38.99

$

In Stock, Qty 10

0

55

Exmark 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

56

Exmark 325-4

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

57

Exmark 103-1522-01

WEIGHT BAR ASM

$278.99

$

Usually ships in 3-6 days

0

58

Exmark 1-513016

BEARING

Note: For Serial Nos. 320,000 - 351,9999. Apply Mobil HTS grease (or a food-grade antisieze) between the jackshaft & bearings and jackshaft & sheaves. DO NOT use a copper or nickel based antisieze.

$92.99

$

In Stock, Qty 20+

0

59

Exmark 103-1515-01

DISCONTINUED

$

$

Not available

60

Exmark 1-323528

SPACER-BEARING

Note: For Serial Nos. 320,000 - 351,9999.

$9.99

$

In Stock, Qty 6

0

61

Exmark 1-633573

GUARD-BEARING, BOTTOM

Note: For Serial Nos. 320,000 - 351,9999.

$5.99

$

In Stock, Qty 12

0

62

Exmark 32120-8

RING-SNAP

$2.99

$

In Stock, Qty 20+

0

63

Asm,Jackshaft Housing W/Brgs

Note: For Serial Nos. 320,000 - 351,9999. This assembly is now serviced by P/N 103-2544.

$

$

Not available

64

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

65

Exmark 103-1356

STRUT ASM

$362.99

$

In Stock, Qty 5

0

66

Exmark 103-0280

103-9746
(Superseded to 103-9746)

$287.99

$

In Stock, only 3 left!

0

67

Exmark 103-0924

103-5382
(Superseded to 103-5382)

Note: Apply Mobil HTS grease (or a food-grade antisieze) between the jackshaft & bearings and jackshaft & sheaves. DO NOT use a copper or nickel based antisieze.

$944.99

$

Usually ships in 3-6 days

0

68

Exmark 103-0926

JACKSHAFT,LAZER XP

Note: Apply Mobil HTS grease (or a food-grade antisieze) between the jackshaft & bearings and jackshaft & sheaves. DO NOT use a copper or nickel based antisieze.

$

$

Not available

69

Exmark 103-0929

ASM,JACKSHAFT

$1212.99

$

Usually ships in 3-6 days

0

70

Exmark 103-1588

Complete Deck Assy

$

$

Currently unavailable
