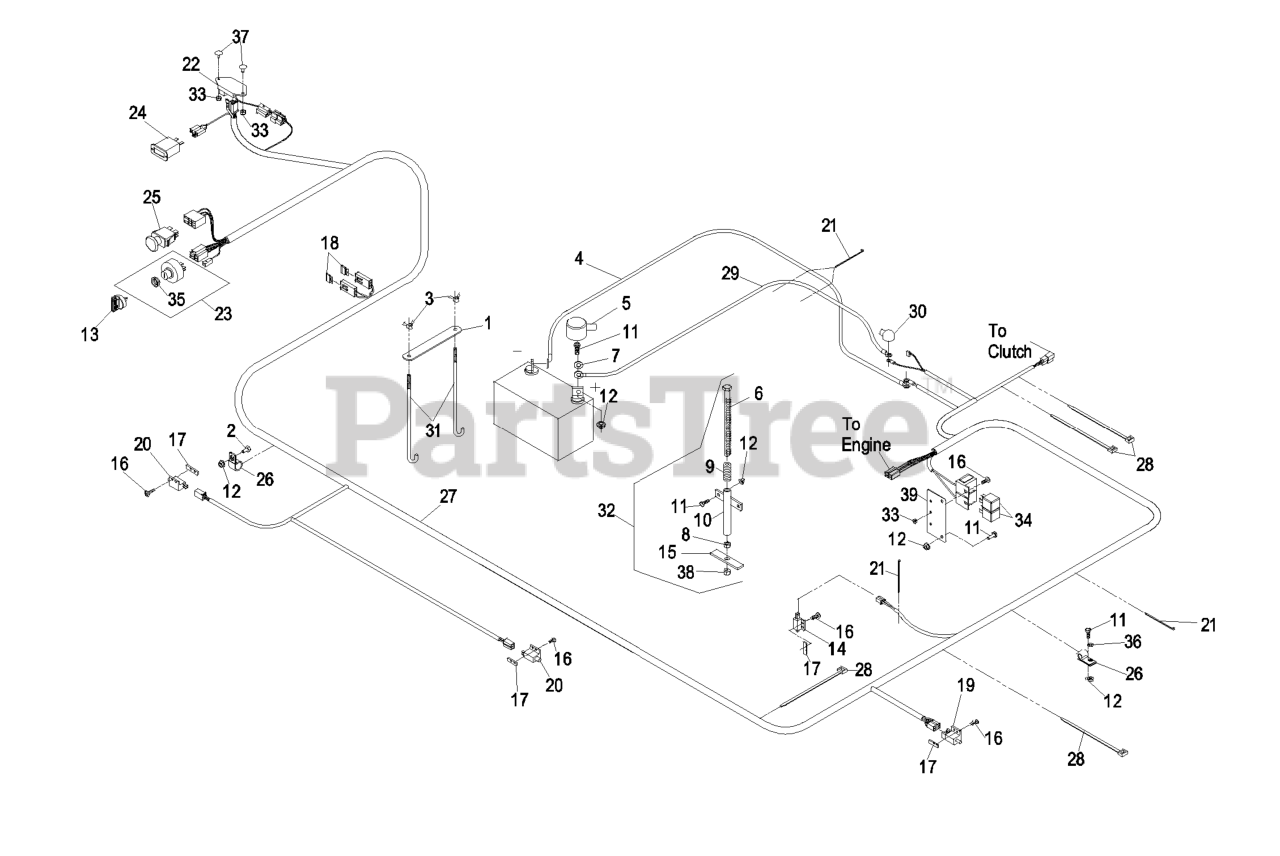

LZ27KC604 - Exmark 60" Lazer Z Zero-Turn Mower, 27hp Kohler (SN: 720000 - 789999) (2008) Electrical Group Parts Diagram

60" Lazer Z Zero-Turn Mower, 27hp Kohler

Electrical Group Parts Diagram

  • Title

1

Exmark 107-9277-03

STRAP-HOLDDOWN, BATTERY

$6.99

$

In Stock, only 4 left!

0

2

Exmark 321-2

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

3

Exmark 1-543792

WINGNUT

$6.99

$

In Stock, Qty 20+

0

4

Exmark 1-633307

WIRE-GROUND

$

$

Not available

5

Exmark 109-2407

INSULATOR-BATTERY

$5.99

$

In Stock, only 2 left!

0

6

Exmark 1-800282

SCREW-HH

$5.99

$

In Stock, only 1 left!

0

7

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 18

0

8

Exmark 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

9

Exmark 1-523415

SPRING-SWITCH, SEAT

$37.99

$

In Stock, only 1 left!

0

10

Exmark 1-522424-03

MOUNT-SPRING, SEAT

$41.99

$

Usually ships in 3-6 days

0

11

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

13

Exmark 103-2106

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.99

$

In Stock, Qty 16

0

14

Exmark 1-513152

SWITCH-CLOSED, NORMALLY

$14.99

$

In Stock, Qty 10

0

15

Exmark 1-513180

PLATE-SWITCH, SEAT

$18.99

$

In Stock, only 2 left!

0

16

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

17

Exmark 1-633181

PLATE-TAPPED

$7.49

$

In Stock, only 3 left!

0

18

Exmark 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.99

$

In Stock, only 3 left!

0

19

Exmark 1-633111

SWITCH

$23.99

$

In Stock, Qty 5

0

20

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$21.99

$

In Stock, Qty 13

0

21

Exmark 1-303287

TIE-CABLE

Note: (Small)

$1.49

$

Usually ships in 3-6 days

0

22

Exmark 103-5218

MODULE-DELAY, SEAT

$49.99

$

In Stock, only 2 left!

0

23

Exmark 109-4736

ASM,SWITCH W/NUT

$45.99

$

In Stock, Qty 15

0

24

Exmark 1-513374

METER-HOUR
(Superseded to 120-2244)

$76.99

$

In Stock, Qty 5

0

25

Exmark 103-5221

SWITCH-PTO

$63.99

$

In Stock, Qty 5

0

26

Exmark 1-633396

CLIP-LOOM

$5.99

$

Usually ships in 3-6 days

0

27

Exmark 109-0125

HARNESS, WIRE LAZER KC

Note: Use dielectric grease on all wiring harness connectors.

$461.99

$

Usually ships in 3-6 days

0

28

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

Note: (Large)

$0.99

$

In Stock, Qty 8

0

29

Exmark 109-7630

POSITIVE BATTERY CABLE AS

$46.99

$

In Stock, only 2 left!

0

30

Exmark 1-543393

INSULATOR-SOLENOID

$5.99

$

Usually ships in 3-6 days

0

31

Exmark 1-633651

BOLT-HOLDDOWN

$8.99

$

In Stock, Qty 20+

0

32

Exmark 103-5652

ASM,SEAT SWITCH ACTUATOR

$122.99

$

Usually ships in 3-6 days

0

33

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Exmark 1-643275

RELAY

$26.99

$

In Stock, Qty 19

0

35

Exmark 103-0498

NUT-SWITCH, IGNITION

$3.99

$

In Stock, Qty 10

0

36

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

37

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

38

Exmark 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

39

Exmark 109-7679-03

MOUNT-RELAY

$

$

Not available
