LZ27KC604 - Exmark 60" Lazer Z Zero-Turn Mower, 27hp Kohler (SN: 720000 - 789999) (2008) Engine Deck Group Parts Diagram

60" Lazer Z Zero-Turn Mower, 27hp Kohler

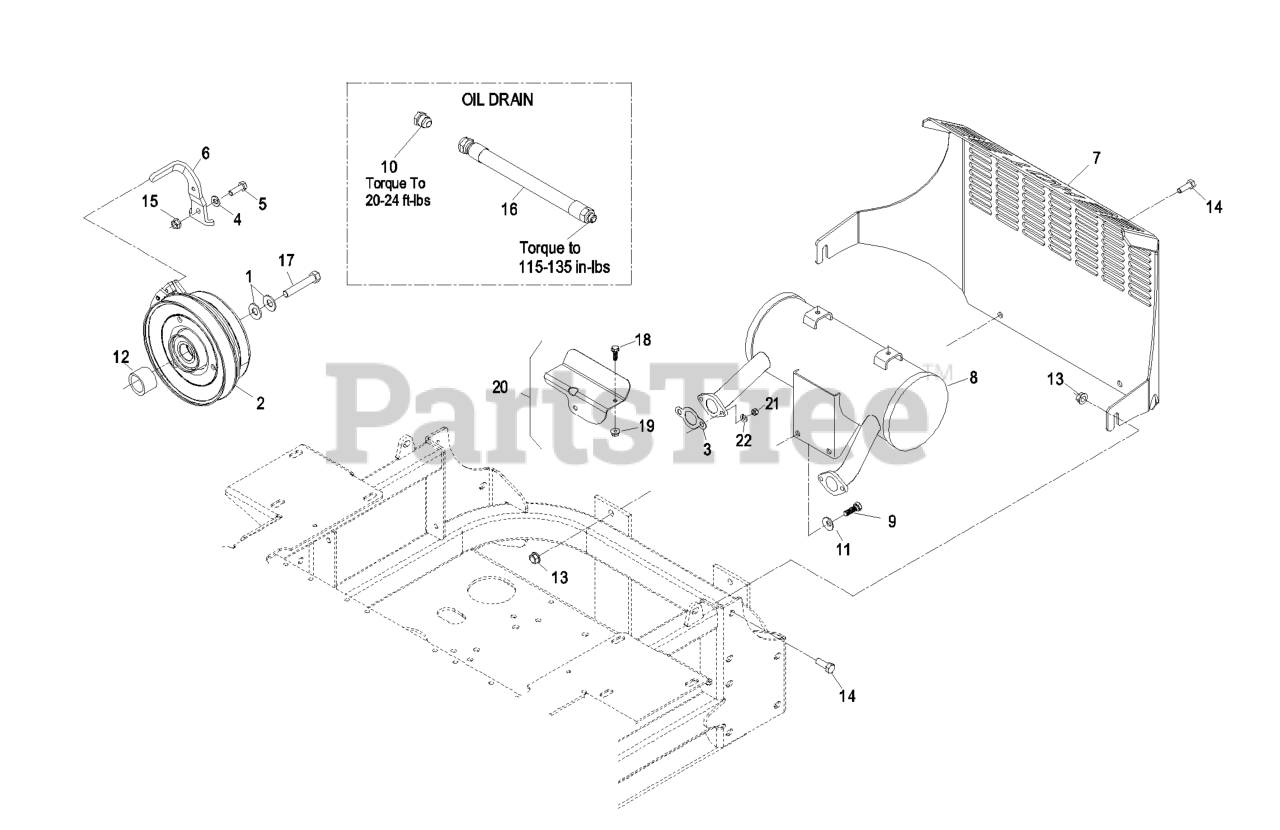

Engine Deck Group Parts Diagram

  • Title

1

Exmark 1-603610

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

0

2

Exmark 109-7665

KIT,SPOT BRAKE CLUTCH 1.1

$785.99

$

Usually ships in 3-6 days

0

3

Exmark 1-653291

110-6697
(Superseded to 110-6697)

$7.49

$

Usually ships in 3-6 days

0

4

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

5

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Exmark 109-7083-03

ANCHOR-CLUTCH

$56.99

$

Usually ships in 3-6 days

0

7

Exmark 109-8119-03

GUARD, REAR KC

$

$

Not available

8

Exmark 103-7480

KIT,MUFFLER KOHLER

Note: Includes items #20 & #23.

$280.99

$

In Stock, only 1 left!

0

9

Exmark 324-2

SCREW-HH

$5.49

$

In Stock, only 3 left!

0

10

Exmark 109-1012

PLUG

$9.49

$

Usually ships in 3-6 days

0

11

Exmark 325-36

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Exmark 1-633179

SPACER-CLUTCH

$22.99

$

In Stock, only 4 left!

0

13

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

14

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

15

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

16

Exmark 109-2987

116-5327
(Superseded to 116-5327)

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$50.99

$

Usually ships in 3-6 days

0

17

Exmark 3212-10

SCREW-HH

$6.99

$

In Stock, Qty 11

0

18

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

20

Exmark 103-3535

CABLE HEAT SHIELD KIT

$120.99

$

Usually ships in 3-6 days

0

21

Exmark 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

22

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 19

0
