LZ31BV665 - Exmark 66" Lazer Z Zero-Turn Mower, 31hp Briggs & Stratton (SN: 720000 - 789999) (2008) Engine Deck Group - (cont.) Parts Diagram

66" Lazer Z Zero-Turn Mower, 31hp Briggs & Stratton

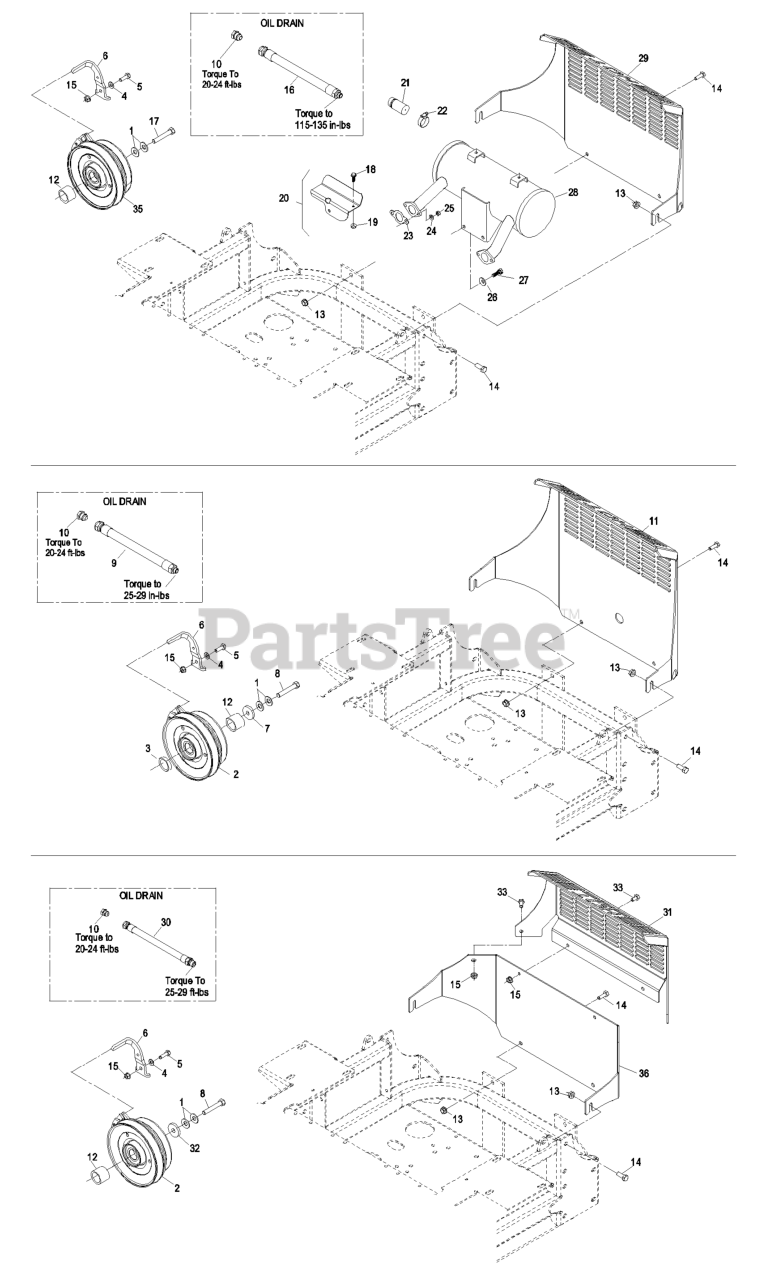

Engine Deck Group - (cont.) Parts Diagram

  • Title

1

Exmark 1-603610

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

0

2

Exmark 109-7666

SPOT BRAKE CLUTCH KIT

$768.99

$

Usually ships in 3-6 days

0

3

Exmark 109-6874

SPACER,CLUTCH

$18.99

$

Usually ships in 3-6 days

0

4

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

5

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Exmark 109-7083-03

ANCHOR-CLUTCH

$56.99

$

Usually ships in 3-6 days

0

7

Exmark 1-543610

WASHER-CLUTCH

$6.99

$

In Stock, Qty 20+

0

8

Exmark 3212-6

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on clutch bolt.

$2.99

$

In Stock, Qty 12

0

9

Exmark 109-4324

ASM,HOSE OIL DRAIN BVG W/
(Superseded to 116-5329)

$

$

Not available

10

Exmark 109-1012

PLUG

$9.49

$

Usually ships in 3-6 days

0

11

Exmark 109-5499-03

GUARD,MUFFLER

$

$

Not available

12

Exmark 1-633179

SPACER-CLUTCH

$22.99

$

In Stock, only 4 left!

0

13

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

14

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

15

Exmark 32128-20

NUT-HF

Note: (Briggs & Kohler)

$1.49

$

In Stock, Qty 20+

0

Exmark 32128-20

NUT-HF

Note: (Kawasaki)

$1.49

$

In Stock, Qty 20+

0

16

Exmark 109-2987

116-5327
(Superseded to 116-5327)

Note: (Kohler) Use a Teflon Pipe Sealant or equivalent on threads.

$50.99

$

Usually ships in 3-6 days

0

17

Exmark 3212-10

SCREW-HH

$6.99

$

In Stock, Qty 11

0

18

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

20

Exmark 103-3535

CABLE HEAT SHIELD KIT

Note: (Kohler)

$120.99

$

Usually ships in 3-6 days

0

21

Exmark 103-1513

ARRESTER-SPARK

Note: (1.25) (28HP KOH EFI)

$

$

Not available

22

Exmark 103-1514

CLAMP-MUFFLER

Note: (1.38) (28HP KOH EFI)

$

$

Not available

23

Exmark 1-653291

110-6697
(Superseded to 110-6697)

Note: (Kohler)

$7.49

$

Usually ships in 3-6 days

0

24

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 19

0

25

Exmark 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

26

Exmark 325-36

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Exmark 324-2

SCREW-HH

$5.49

$

In Stock, only 3 left!

0

28

Exmark 103-7480

KIT,MUFFLER KOHLER

Note: (27HP) Includes items #20 & #23.

$280.99

$

In Stock, only 1 left!

0

Exmark 103-7483

KIT,MUFFLER KOHLER-EFI

Note: (28HP KOH EFI) Includes items #20, #21, #22, & #23.

$370.99

$

Usually ships in 3-6 days

0

29

Exmark 109-8119-03

GUARD, REAR KC

Note: (Kohler)

$

$

Not available

30

Exmark 109-4490

116-4924
(Superseded to 116-4924)

Note: (Kawasaki)

$42.99

$

In Stock, Qty 6

0

31

Exmark 109-7713-03

GUARD,MUFFLER

Note: (Kawasaki)

$

$

Not available

32

Exmark 103-0152

KEEPER-CLUTCH

Note: (Kawasaki)

$14.99

$

In Stock, only 2 left!

0

33

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

35

Exmark 109-7665

KIT,SPOT BRAKE CLUTCH 1.1

$785.99

$

Usually ships in 3-6 days

0

36

Exmark 109-7712-03

GUARD,CLUTCH

$

$

Not available
