LZ31BV665 - Exmark 66" Lazer Z Zero-Turn Mower, 31hp Briggs & Stratton (SN: 720000 - 789999) (2008) Spindle Assembly Parts Diagram

66" Lazer Z Zero-Turn Mower, 31hp Briggs & Stratton

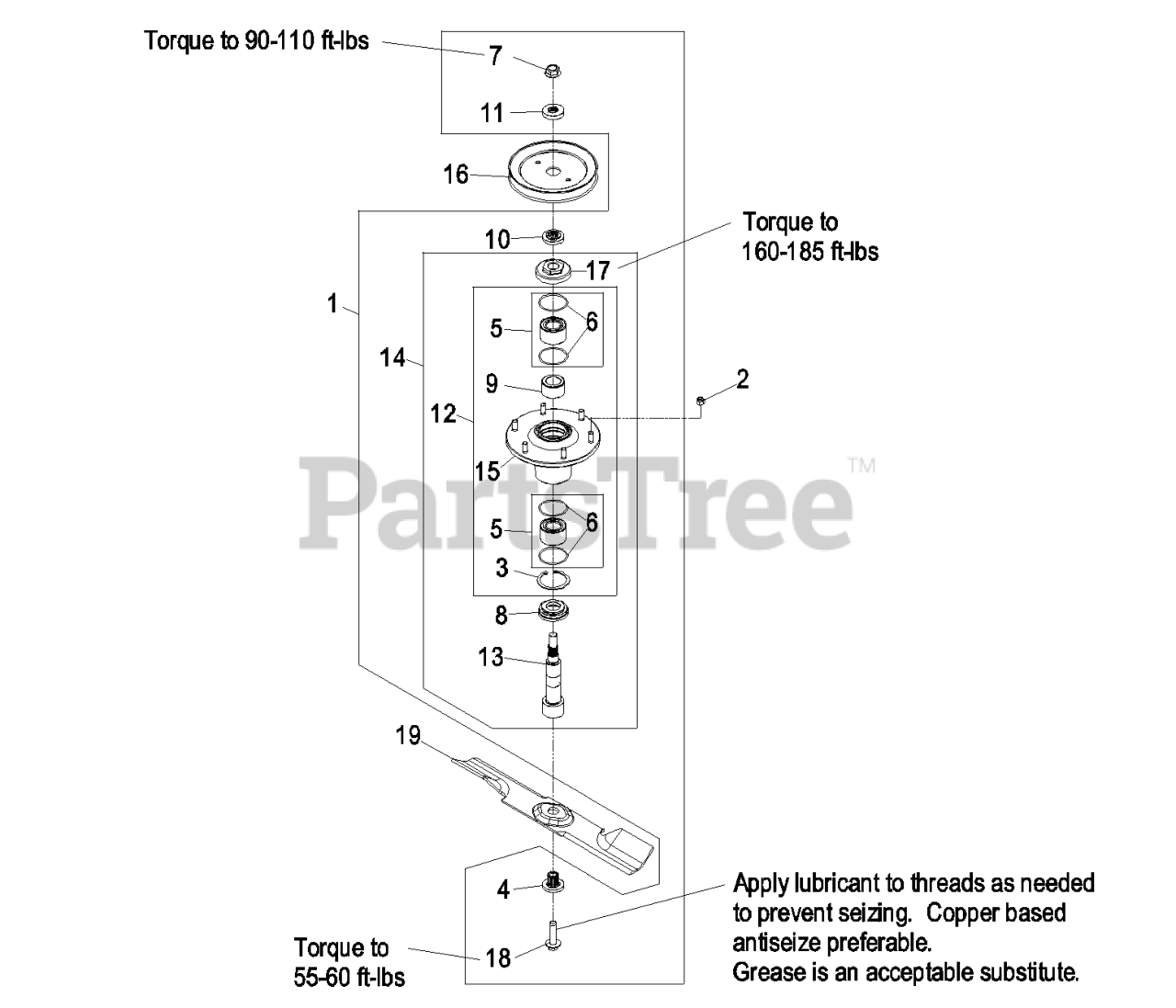

Spindle Assembly Parts Diagram

  • Title

1

Exmark 109-2102

ASM, CUTTER HSG W/MNT HRD

$882.99

$

Usually ships in 3-6 days

0

2

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

3

Exmark 92-5581

RING-RETAINING

$3.99

$

In Stock, Qty 10

0

4

Exmark 103-3037

BUSHING,SPLINED

$25.99

$

In Stock, Qty 20+

0

5

Exmark 109-2064

ASM, BEARING W/ORINGS

$128.99

$

In Stock, Qty 12

0

6

Exmark 103-5895

O-RING

$1.49

$

In Stock, Qty 5

0

7

Exmark 109-7033

NUT-FLANGE, CENTERLOCK

$2.99

$

In Stock, Qty 20+

0

8

Exmark 103-9504

GUARD,BOTTOM

$13.99

$

Usually ships in 3-6 days

0

9

Exmark 103-9506

SPACER,BEARING

$11.99

$

In Stock, only 3 left!

0

10

Exmark 103-9522

SPACER,SPLINED STEPPED

$7.99

$

In Stock, only 2 left!

0

11

Exmark 103-9523

SPACER,SPLINED

$9.49

$

In Stock, Qty 9

0

12

Exmark 103-9539

ASM,CUTTER HOUSING

$439.99

$

In Stock, only 1 left!

0

13

Exmark 103-9540

116-0725
(Superseded to 116-0725)

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antiseize) between the spindles and bearings. DO NOT use a copper or nickel based antiseize.

$203.99

$

Usually ships in 3-6 days

0

14

Exmark 103-9541

109-6917
(Superseded to 109-6917)

$447.99

$

In Stock, Qty 9

0

15

Exmark 109-0764

ASM,HOUSING W/STUDS

$113.99

$

In Stock, only 3 left!

0

16

Exmark 109-1023

SHEAVE, BLADE DRIVE 6.13

$49.99

$

In Stock, only 4 left!

0

Exmark 109-0914

SHEAVE,BLADE DRIVE 6.75

$

$

Not available

Exmark 109-0929

SHEAVE,BLADE DRIVE 7.25

$59.99

$

In Stock, Qty 8

0

17

Exmark 109-1058

109-0916
(Superseded to 109-0916)

$27.99

$

Usually ships in 3-6 days

0

18

Exmark 109-5958

109-9220
(Superseded to 109-9220)

$8.99

$

In Stock, Qty 20+

0

19

Exmark 103-8240

103-8240-S
(Superseded to 103-8240-S)

$46.99

$

In Stock, Qty 20+

0

Exmark 103-8396

116-5499-S
(Superseded to 116-5499-S)

$52.99

$

Usually ships in 3-6 days

0

Exmark 103-8239

109-6469-S
(Superseded to 109-6469-S)

$49.99

$

Usually ships in 3-6 days

0

Exmark 103-8244

109-6463-S
(Superseded to 109-6463-S)

$52.99

$

In Stock, Qty 5

0

Exmark 103-8432

109-6463-S
(Superseded to 109-6463-S)

$52.99

$

In Stock, Qty 5

0

Exmark 103-8431

109-6469-S
(Superseded to 109-6469-S)

$49.99

$

Usually ships in 3-6 days

0

Exmark 109-5396

109-5396-S
(Superseded to 109-5396-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK605 (60"), MK665 (66") and MK725 (72").

$55.99

$

In Stock, only 2 left!

0

Exmark 103-9629

116-5499-S
(Superseded to 116-5499-S)

$52.99

$

Usually ships in 3-6 days

0

Exmark 103-9616

103-9616-S
(Superseded to 103-9616-S)

$

$

Not available

Exmark 103-9619

116-5500-S
(Superseded to 116-5500-S)

$66.99

$

In Stock, only 3 left!

0

Exmark 103-9617

109-6470-S
(Superseded to 109-6470-S)

$54.99

$

Usually ships in 3-6 days

0

Exmark 103-9618

109-6464-S
(Superseded to 109-6464-S)

$52.99

$

In Stock, Qty 20+

0

Exmark 103-9620

109-6464-S
(Superseded to 109-6464-S)

$52.99

$

In Stock, Qty 20+

0

Exmark 103-9621

109-6470-S
(Superseded to 109-6470-S)

$54.99

$

Usually ships in 3-6 days

0

Exmark 109-5878

109-5878-S
(Superseded to 109-5878-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK605 (60"), MK665 (66") and MK725 (72").

$

$

Not available

Exmark 103-9630

116-5500-S
(Superseded to 116-5500-S)

$66.99

$

In Stock, only 3 left!

0

Exmark 103-9622

103-9622-S
(Superseded to 103-9622-S)

$61.99

$

Usually ships in 3-6 days

0

Exmark 103-9625

116-5501-S
(Superseded to 116-5501-S)

$70.99

$

In Stock, Qty 5

0

Exmark 103-9623

109-6471-S
(Superseded to 109-6471-S)

$57.99

$

In Stock, only 1 left!

0

Exmark 103-9624

109-6465-S
(Superseded to 109-6465-S)

$57.99

$

In Stock, Qty 6

0

Exmark 103-9626

109-6465-S
(Superseded to 109-6465-S)

$57.99

$

In Stock, Qty 6

0

Exmark 103-9627

103-9627-S
(Superseded to 103-9627-S)

$57.99

$

In Stock, only 1 left!

0

Exmark 109-5879

109-5879-S
(Superseded to 109-5879-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK605 (60"), MK665 (66") and MK725 (72").

$54.99

$

In Stock, Qty 11

0

Exmark 109-9631

SHEAVE,DRIVE LZUV 486

$274.99

$

Usually ships in 3-6 days

0
