LZAS20BV484 - Exmark 48" Lazer Z AS Zero-Turn Mower, 20hp Briggs & Stratton (SN: 790000 - 849999) (2009) 52" Deck Group Parts Diagram

48" Lazer Z AS Zero-Turn Mower, 20hp Briggs & Stratton

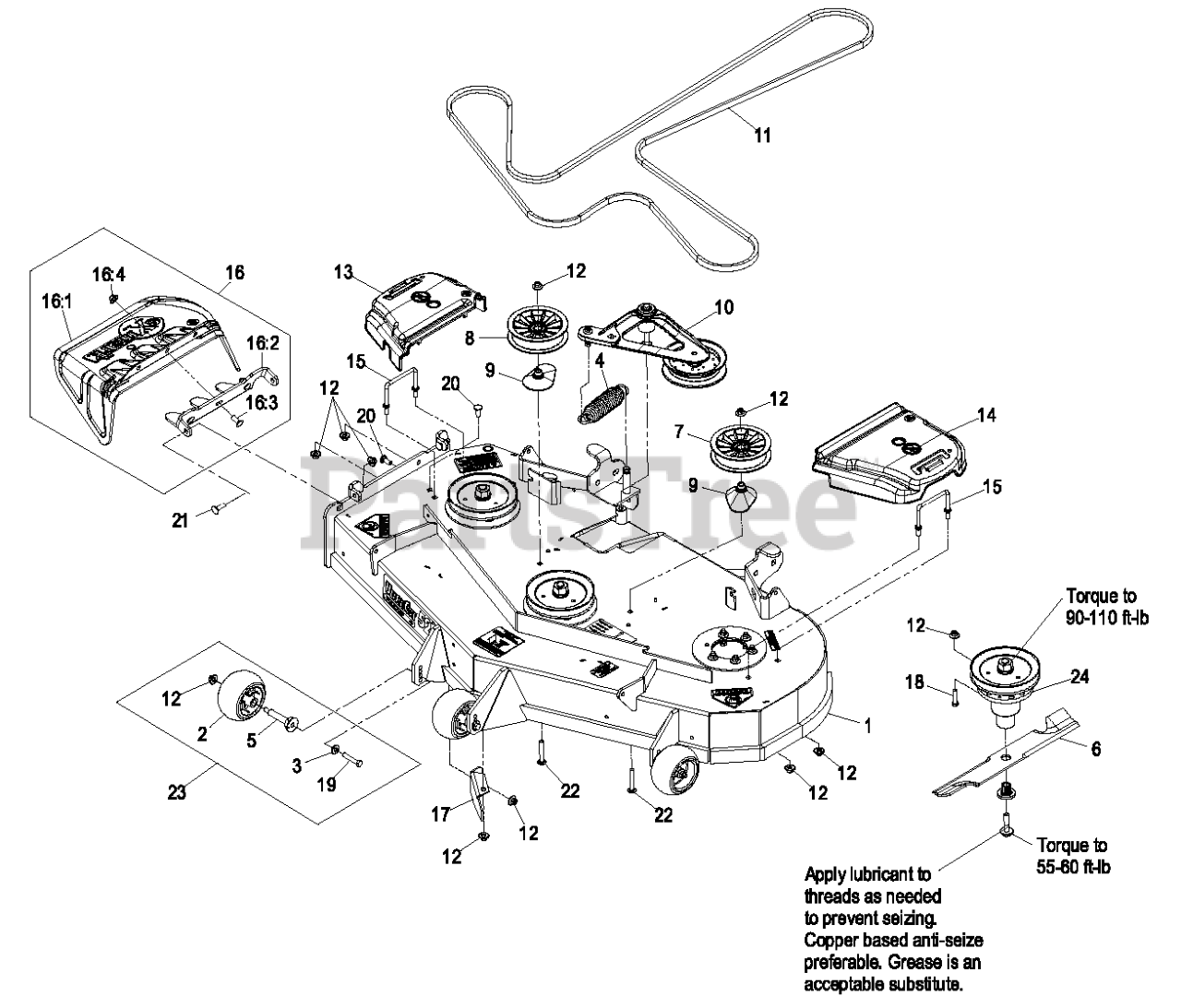

52" Deck Group Parts Diagram

  • Title

1

Exmark 109-9012

ASM,DECK W/ DECALS 524

$

$

Not available

2

Exmark 1-603299

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 20+

0

3

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

4

Exmark 116-0133

116-6317
(Superseded to 116-6317)

$31.99

$

In Stock, Qty 20+

0

5

Exmark 109-9851

126-2928
(Superseded to 126-2928)

$42.99

$

In Stock, Qty 20+

0

6

Exmark 103-6402

103-6402-S
(Superseded to 103-6402-S)

$34.99

$

In Stock, Qty 20+

0

Exmark 103-6392

103-6392-S
(Superseded to 103-6392-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK524.

$34.99

$

In Stock, Qty 20+

0

Exmark 103-6387

103-6387-S
(Superseded to 103-6387-S)

$39.99

$

In Stock, only 4 left!

0

Exmark 103-6382

103-6382-S
(Superseded to 103-6382-S)

$39.99

$

In Stock, Qty 8

0

Exmark 103-6397

116-5175-S
(Superseded to 116-5175-S)

$34.99

$

In Stock, Qty 20+

0

7

Exmark 109-0977

PULLEY,IDLER 5"

$87.99

$

In Stock, only 2 left!

0

8

Exmark 109-2796

PULLEY,IDLER 6"

$59.99

$

In Stock, Qty 20+

0

9

Exmark 109-2872

SPACER-PULLEY

$25.99

$

In Stock, Qty 20+

0

10

Exmark 109-2883

116-3755
(Superseded to 116-3755)

$300.99

$

In Stock, Qty 12

0

11

Exmark 109-4994

BELT,V-B X 186.00"
(Superseded to 135-5776-SL)

$181.99

$

In Stock, Qty 20+

0

12

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

13

Exmark 109-6935

COVER-BELT, RH

$43.99

$

In Stock, Qty 18

0

14

Exmark 109-6936

COVER-BELT, LH

$43.99

$

In Stock, Qty 20+

0

15

Exmark 109-6982

WIREFORM-COVER

$12.99

$

In Stock, only 2 left!

0

16

Exmark 109-7188

ASM,DISCHARGE CHUTE

$129.99

$

In Stock, Qty 14

0

16:1

Exmark 109-2738

CHUTE,DISCHARGE

$90.99

$

In Stock, Qty 8

0

16:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$60.99

$

In Stock, only 1 left!

0

16:3

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

16:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

17

Exmark 109-9915-01

BAFFLE,DISCHARGE 52/60

$42.99

$

Usually ships in 3-6 days

0

18

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Exmark 3211-46

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

20

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

21

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.99

$

In Stock, Qty 20+

0

22

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

23

Exmark 103-7263

116-9981
(Superseded to 116-9981)

$56.99

$

In Stock, Qty 20+

0

24

Exmark 109-9018

ASM, CUTTER HOUSING 52

$631.99

$

Usually ships in 3-6 days

0

25

Exmark 109-9644

Asm, Deck Complete 524

$

$

Currently unavailable
