LZAS20KA484 - Exmark 48" Lazer Z AS Zero-Turn Mower, 20hp Kawasaki (SN: 850000 - 919999) (2010) 60" Deck Group Parts Diagram

48" Lazer Z AS Zero-Turn Mower, 20hp Kawasaki

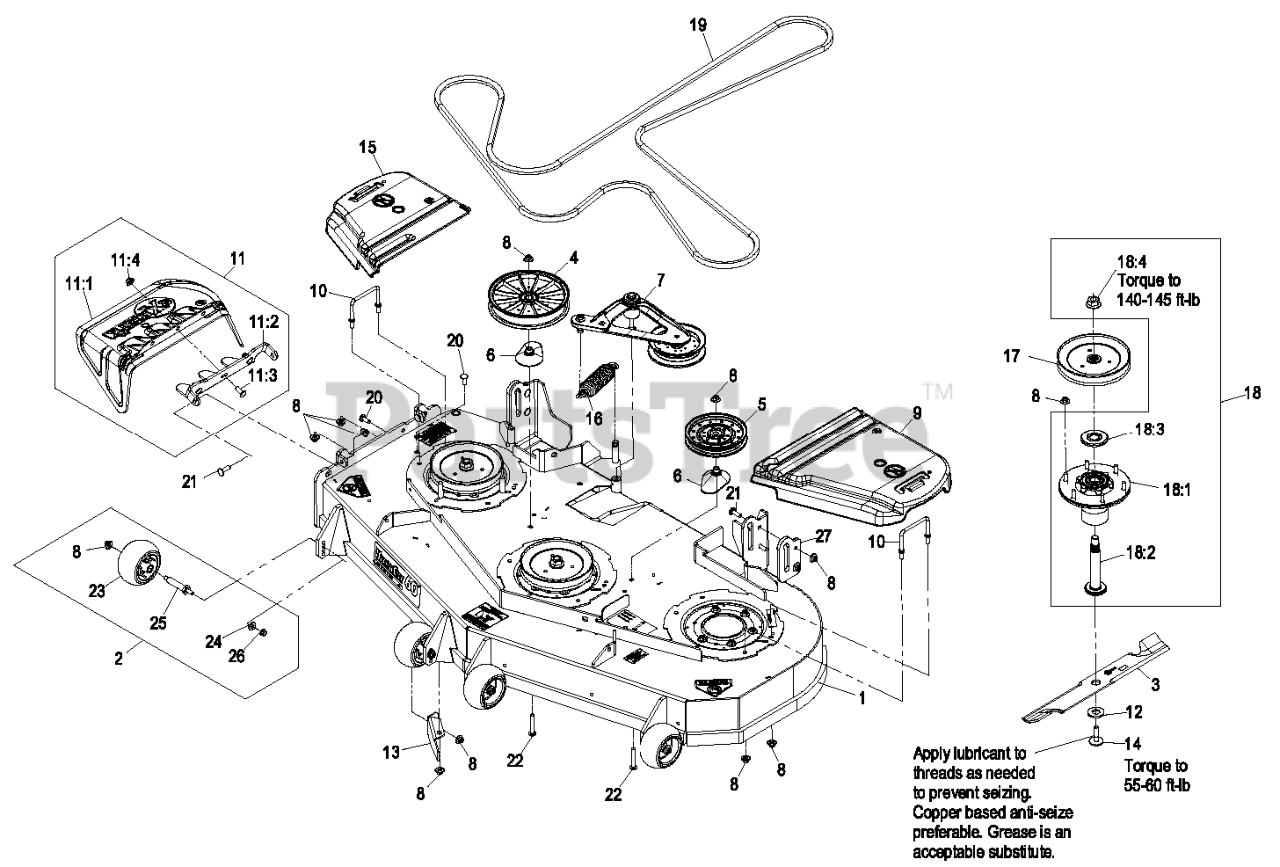

60" Deck Group Parts Diagram

  • Title

1

Exmark 116-1987

116-8432
(Superseded to 116-8432)

$3739.99

$

Usually ships in 3-6 days

0

2

Exmark 103-4051

116-9981
(Superseded to 116-9981)

$56.99

$

In Stock, Qty 20+

0

3

Exmark 103-6403

103-6403-S
(Superseded to 103-6403-S)

$35.99

$

In Stock, Qty 20+

0

Exmark 103-6393

103-6393-S
(Superseded to 103-6393-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK604.

$34.99

$

In Stock, Qty 20+

0

Exmark 103-6388

103-6388-S
(Superseded to 103-6388-S)

$41.99

$

In Stock, Qty 20+

0

Exmark 103-6383

103-6383-S
(Superseded to 103-6383-S)

$37.99

$

In Stock, Qty 20+

0

Exmark 103-6398

116-5174-S
(Superseded to 116-5174-S)

$34.99

$

In Stock, Qty 11

0

4

Exmark 109-0996

PULLEY,IDLER 8"FLAT

$93.99

$

In Stock, Qty 7

0

5

Exmark 1-633109

126-7685
(Superseded to 126-7685)

$68.99

$

In Stock, Qty 16

0

6

Exmark 109-2872

SPACER-PULLEY

$25.99

$

In Stock, Qty 20+

0

7

Exmark 109-2883

116-3755
(Superseded to 116-3755)

$300.99

$

In Stock, Qty 12

0

8

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

9

Exmark 109-6938

COVER-BELT, LH

$109.99

$

In Stock, Qty 20+

0

10

Exmark 109-6982

WIREFORM-COVER

$12.99

$

In Stock, only 2 left!

0

11

Exmark 109-7188

ASM,DISCHARGE CHUTE

$129.99

$

In Stock, Qty 12

0

11

Exmark 109-7188

ASM,DISCHARGE CHUTE

$129.99

$

In Stock, Qty 12

0

11:1

Exmark 109-2738

CHUTE,DISCHARGE

$90.99

$

In Stock, Qty 8

0

11:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$60.99

$

In Stock, only 1 left!

0

11:3

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

11:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

12

Exmark 109-7429

WASHER-BLADE DRIVE

$5.99

$

In Stock, Qty 20+

0

13

Exmark 109-9915-01

BAFFLE,DISCHARGE 52/60

$42.99

$

Usually ships in 3-6 days

0

14

Exmark 116-0005

BOLT-BLADE, SEM

$8.49

$

In Stock, Qty 20+

0

15

Exmark 116-0094

COVER-BELT, RH

$96.99

$

In Stock, Qty 20+

0

16

Exmark 116-0133

116-6317
(Superseded to 116-6317)

$31.99

$

In Stock, Qty 19

0

17

Exmark 116-0676

SHEAVE,BLADE DRIVE 7.25

$83.99

$

In Stock, Qty 20+

0

18

Exmark 116-1384

116-4915
(Superseded to 116-4915)

$305.99

$

Usually ships in 3-6 days

0

18:1

Exmark 116-0924

ASM,CUTTER HSG WITH BEARI

$222.99

$

Usually ships in 3-6 days

0

18:2

Exmark 116-0381

SPINDLE,HEX PILOT 5.5" DE

$

$

Not available

18:3

Exmark 116-1286

GUARD,BEARING TOP .989

$5.99

$

In Stock, Qty 20+

0

18:4

Exmark 104-0753

NUT-FLANGE

$4.99

$

In Stock, Qty 14

0

19

Exmark 109-8073

BELT,V-5V-198.75
(Superseded to 135-5774-SL)

$185.99

$

In Stock, Qty 20+

0

20

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

21

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.99

$

In Stock, Qty 20+

0

22

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

23

Exmark 1-603299

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 20+

0

24

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

25

Exmark 99-2842

126-2928
(Superseded to 126-2928)

$42.99

$

In Stock, Qty 20+

0

26

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

27

Exmark 116-3445

116-8530-01
(Superseded to 116-8530-01)

$25.99

$

Usually ships in 3-6 days

0

28

Exmark 116-3217

Asm, Complete Deck

$

$

Currently unavailable
