LZAS20KA484 - Exmark 48" Lazer Z AS Zero-Turn Mower, 20hp Kawasaki (SN: 850000 - 919999) (2010) Park Brake Group Parts Diagram

48" Lazer Z AS Zero-Turn Mower, 20hp Kawasaki

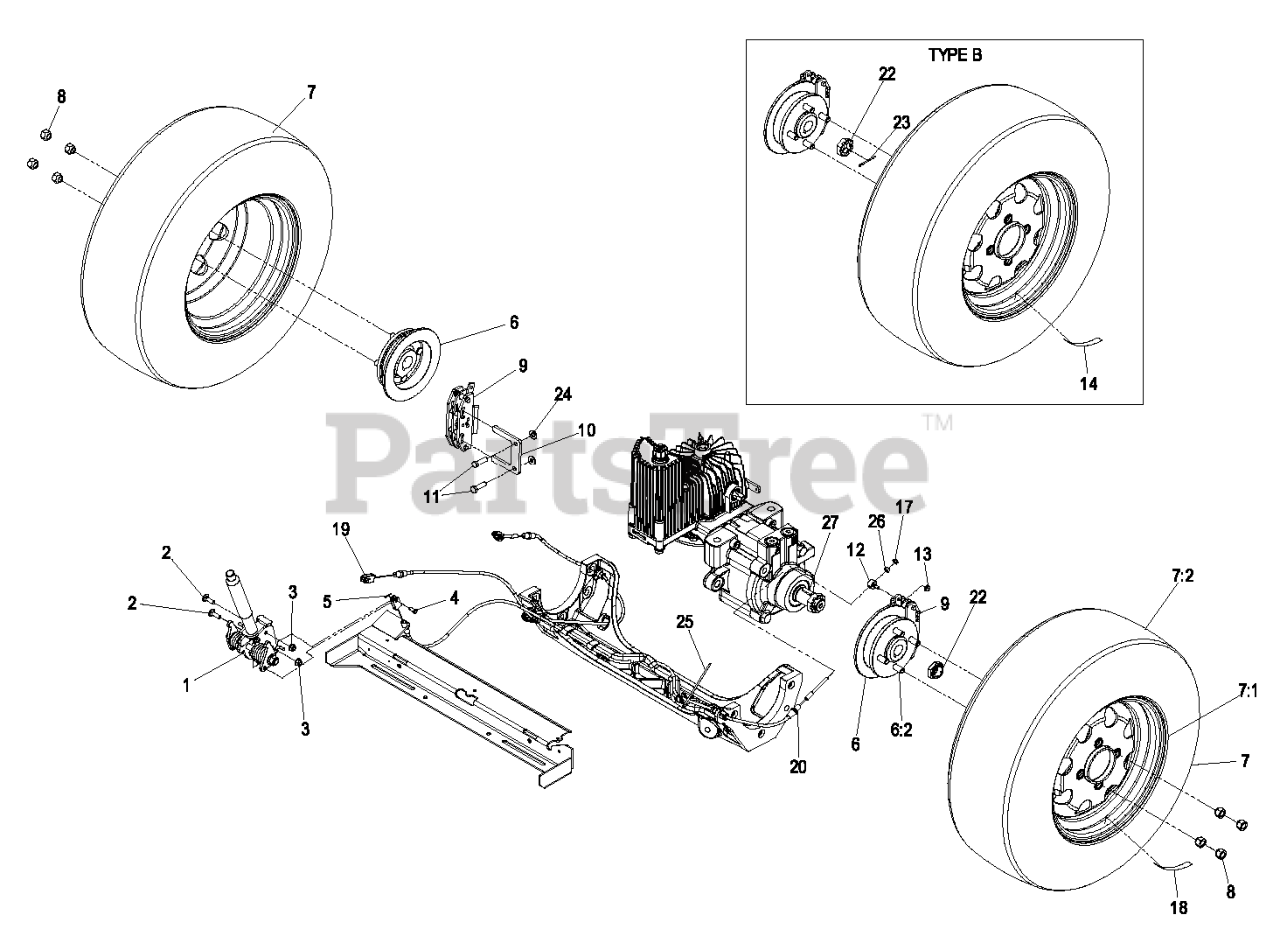

Park Brake Group Parts Diagram

  • Title

1

Exmark 116-1878

BRAKE HANDLE ASM

$

$

Not available

2

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 20+

0

3

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Exmark 60-1730

PIN-CLEVIS

$5.99

$

In Stock, only 3 left!

0

5

Exmark 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 10

0

6

Exmark 117-6163

116-1746
(Superseded to 116-1746)

$127.99

$

In Stock, Qty 20+

0

6:2

Exmark 1-633926

STUD-WHEEL

$4.99

$

In Stock, Qty 20+

0

7

Exmark 116-1940

WHEEL AND TIRE ASM

$392.99

$

Usually ships in 3-6 days

0

Exmark 116-1941

WHEEL AND TIRE ASM

$

$

Not available

Exmark 116-3138

TIRE AND WHEEL ASM

$470.99

$

Usually ships in 3-6 days

0

7:1

Exmark 109-3645

RIM ASM

$323.99

$

Usually ships in 3-6 days

0

Exmark 109-2875

RIM ASM

$283.99

$

Usually ships in 3-6 days

0

Exmark 109-2871

RIM

$345.99

$

Usually ships in 3-6 days

0

7:2

Exmark 116-1948

TIRE

$341.99

$

Usually ships in 3-6 days

0

Exmark 116-3139

TIRE-TURF MASTER

$213.99

$

Usually ships in 3-6 days

0

8

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

9

Exmark 109-2889

CALIPER-BRAKE

$207.99

$

In Stock, Qty 20+

0

10

Exmark 109-0958

PLATE-MOUNT, BRAKE

$17.99

$

In Stock, Qty 9

0

11

Exmark 92-5727

SCREW-LOCK, PATCH

$3.99

$

In Stock, Qty 9

0

12

Exmark 112-8379

SWIVEL

$13.99

$

In Stock, Qty 5

0

13

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

14

Exmark 116-0165

DECAL-HUB, WHEEL

$5.99

$

Usually ships in 3-6 days

0

17

Exmark 3296-13

NUT-LOCK, NI

$4.49

$

In Stock, Qty 16

0

18

Exmark 116-2643

126-2055
(Superseded to 126-2055)

$6.99

$

In Stock, Qty 11

0

19

Exmark 115-3584

CABLE

$76.99

$

In Stock, only 3 left!

0

20

Exmark 115-3585

CABLE

$76.99

$

In Stock, only 2 left!

0

22

Exmark 1-809036

NUT-HH

$41.99

$

In Stock, only 2 left!

0

23

Exmark 1-806800

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

24

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Exmark 116-0940

TIE-CABLE

$

$

Not available

26

Exmark 3219-1

NUT-HEX

$0.99

$

In Stock, only 2 left!

0

27

Exmark 3257-42

KEY-WOODRUFF

$7.49

$

In Stock, Qty 20+

0
