LZAS27KC524 - Exmark 52" Lazer Z AS Zero-Turn Mower, 27hp Kohler (SN: 850000 - 919999) (2010) Fuel Tank Group Parts Diagram

52" Lazer Z AS Zero-Turn Mower, 27hp Kohler

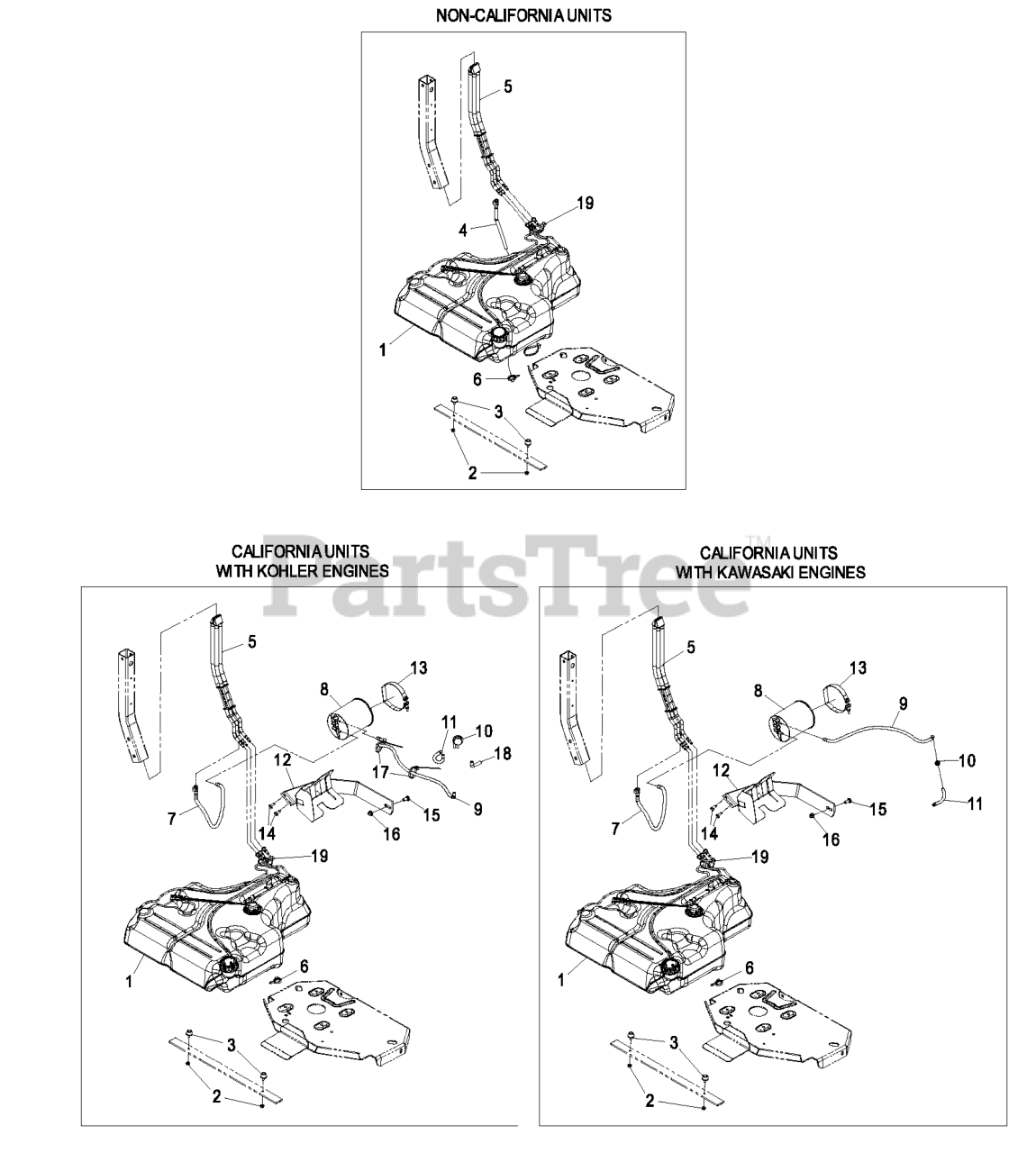

Fuel Tank Group Parts Diagram

  • Title

1

Exmark 109-9357

135-0643
(Superseded to 135-0643)

Note: Non-California Units

$872.99

$

Usually ships in 3-6 days

0

Exmark 116-2131

135-0643
(Superseded to 135-0643)

Note: California Units

$872.99

$

Usually ships in 3-6 days

0

2

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

3

Exmark 109-2365

BUMPER-RUBBER

$5.99

$

In Stock, Qty 20+

0

4

Exmark 109-9450

TUBE-VENT, FUEL DRAIN

$

$

Not available

5

Exmark 109-9491

FUEL MANIFOLD VENT ASM
(Superseded to 135-7569)

$129.99

$

Usually ships in 3-6 days

0

6

Exmark 105-1853

CLAMP-HOSE

$5.99

$

In Stock, only 2 left!

0

7

Exmark 116-1702

VENT HOSE ASM

$38.99

$

Usually ships in 3-6 days

0

8

Exmark 116-1442

CANISTER-CARBON, 1200CC

$174.99

$

Usually ships in 3-6 days

0

9

Exmark 108-6344

HOSE-LP

Note: California Units with Kohler Engines

$19.99

$

Usually ships in 3-6 days

0

Exmark 116-2231

HOSE-VENT, FORMED

Note: California Units with Kawasaki Engines

$39.99

$

Usually ships in 3-6 days

0

10

Exmark 115-7868

133-8499
(Superseded to 133-8499)

Note: California Units with Kohler Engines

$16.99

$

In Stock, only 3 left!

0

Exmark 116-2232

VALVE-CONTROL, VACUUM

Note: California Units with Kawasaki Engines

$37.99

$

In Stock, only 2 left!

0

11

Exmark 116-2394

HOSE-VENT, FORMED

Note: California Units with Kohler Engines

$8.99

$

Usually ships in 3-6 days

0

Exmark 116-2619

HOSE-VENT, FORMED

Note: California Units with Kawasaki Engines

$9.49

$

Usually ships in 3-6 days

0

12

Exmark 116-1433-03

MOUNT-CANISTER

$232.99

$

Usually ships in 3-6 days

0

13

Exmark 116-2228

CLAMP, T-BOLT

$50.99

$

Usually ships in 3-6 days

0

14

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

15

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

16

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

18

Exmark 116-2233

HOSE-VENT, FORMED

$8.99

$

Usually ships in 3-6 days

0

19

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0
