LZAS27KC524 - Exmark 52" Lazer Z AS Zero-Turn Mower, 27hp Kohler (SN: 850000 - 919999) (2010) Hydraulic Group (cont.) Parts Diagram

52" Lazer Z AS Zero-Turn Mower, 27hp Kohler

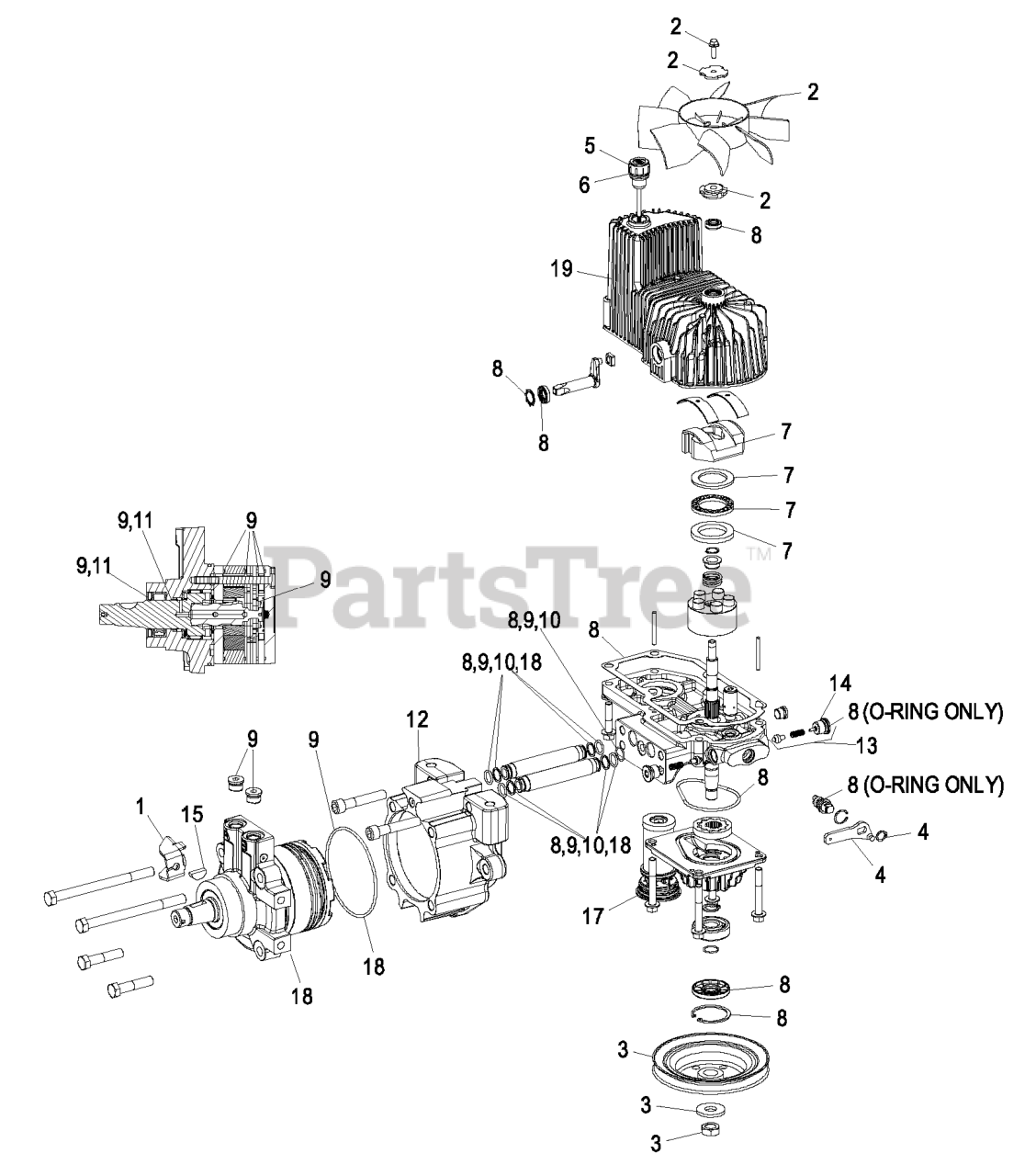

Hydraulic Group (cont.) Parts Diagram

  • Title

1

Exmark 116-1758

BRACKET-ANCHOR, CABLE

$15.99

$

Usually ships in 3-6 days

0

2

Exmark 116-0233

FAN KIT
(Superseded to 142-3603)

$132.99

$

In Stock, Qty 14

0

3

Exmark 116-0234

PULLEY KIT

$188.99

$

In Stock, only 3 left!

0

4

Exmark 116-0235

HANDLE-BYPASS VALVE, HYDRO

$17.99

$

Usually ships in 3-6 days

0

5

Exmark 116-0236

DIPSTICK-HYDRO W/GASKET

$56.99

$

In Stock, Qty 8

0

6

Exmark 116-0237

GASKET-DIPSTICK, HYDRO

$15.99

$

In Stock, only 4 left!

0

7

Exmark 116-1367

SWASH BLOCK KIT

$611.99

$

Usually ships in 3-6 days

0

8

Exmark 116-1368

PUMP SEAL KIT
(Superseded to 142-3604)

$183.99

$

In Stock, Qty 8

0

9

Exmark 116-1369

MOTOR SEAL KIT

$300.99

$

In Stock, only 1 left!

0

10

Exmark 116-1370

TUBE SEAL KIT

$37.99

$

In Stock, only 4 left!

0

11

Exmark 116-1371

OUTPUT SHAFT SEAL KIT

$168.99

$

Usually ships in 3-6 days

0

12

Exmark 116-1372

CUP-NOSE

Note: For Units with hydro S/N below LH: 092570032 RH: 092570042

$1286.99

$

Usually ships in 3-6 days

0

Exmark 116-2992

116-5469
(Superseded to 116-5469)

Note: For Units with hydro S/N LH:092570032 RH: 092570042 & higher

$322.99

$

Usually ships in 3-6 days

0

13

Exmark 116-1630

CHECK VALVE ASM
(Superseded to 142-3605)

Note: For 12CC W/Check Hydros - 48" & 52" Only

$188.99

$

Usually ships in 3-6 days

0

14

Exmark 116-1631

PLUG-CHECK (W/O-RING)

Note: For 12CC W/Check Hydros - 48" & 52" Only

$62.99

$

Usually ships in 3-6 days

0

15

Exmark 3257-42

KEY-WOODRUFF

$7.49

$

In Stock, Qty 20+

0

16

Exmark 1-809036

NUT-HH

$41.99

$

In Stock, only 2 left!

0

Exmark 116-1399

LOCKNUT

$15.99

$

In Stock, Qty 10

0

17

Exmark 116-0164

FILTER-HYDRO

$79.99

$

In Stock, Qty 20+

0

18

Exmark 116-2984

MOTOR-HYD, 240CC RH, UNSE

Note: For Units with hydro S/N below LH: 092570032 RH: 092570042

$

$

Not available

Exmark 116-2985

HYD MOTOR, 240CC LH UNSEA

Note: For Units with hydro S/N below LH: 092570032 RH: 092570042

$

$

Not available

Exmark 116-2988

116-8915
(Superseded to 116-8915)

Note: For Units with hydro S/N LH:092570032 RH: 092570042 & higher

$1845.99

$

Usually ships in 3-6 days

0

Exmark 116-2989

116-8916
(Superseded to 116-8916)

Note: For Units with hydro S/N LH:092570032 RH: 092570042 & higher

$1845.99

$

Usually ships in 3-6 days

0

19

Exmark 116-3287

HOUSING-HYDRO, LH
(Superseded to 142-4460)

$809.99

$

Usually ships in 3-6 days

0

Exmark 116-3288

HOUSING-HYDRO, RH
(Superseded to 142-4461)

$809.99

$

Usually ships in 3-6 days

0
