LZAS29KA724LP - Exmark 72" Lazer Z AS Zero-Turn Mower, 29hp Kawasaki Propane (SN: 850000 - 919999) (2010) Mainframe Group (cont.) Parts Diagram

72" Lazer Z AS Zero-Turn Mower, 29hp Kawasaki Propane

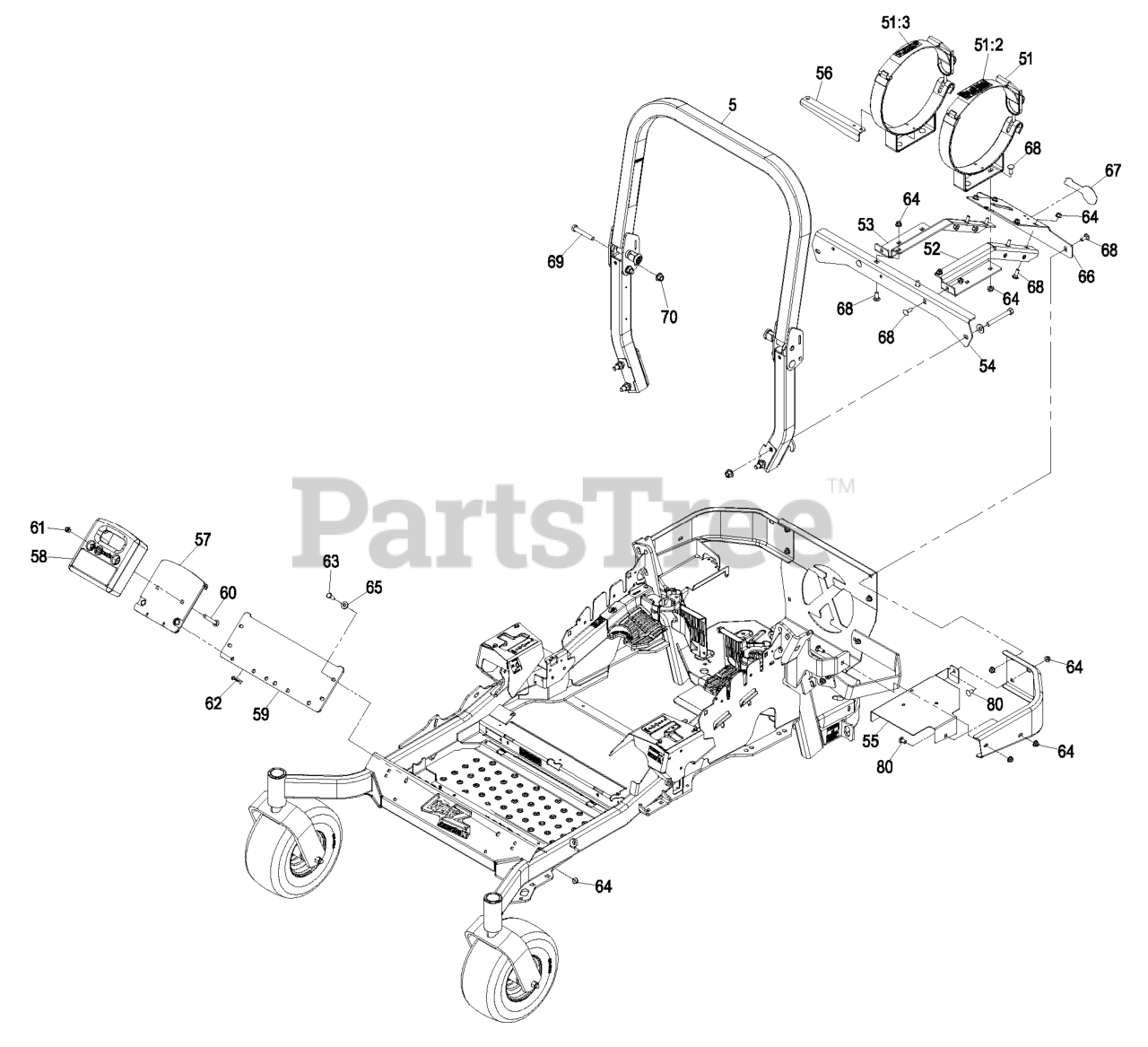

Mainframe Group (cont.) Parts Diagram

  • Title

5

Exmark 116-2882

ROPS ASM

$501.99

$

Usually ships in 3-6 days

0

51

Exmark 116-2817

TANK BRACKET ASM (SET)

$391.99

$

Usually ships in 3-6 days

0

51:2

Exmark 109-9875

DECAL-LPG WARNING

$

$

Not available

51:3

Exmark 116-1714

DECAL-LPG 43.5LB TANK

$

$

Not available

52

Exmark 116-2819-03

LH LPG FRAME ASM

$

$

Not available

53

Exmark 116-2820-03

RH LPG FRAME ASM

$

$

Not available

54

Exmark 116-2285-03

SUPPORT-LPG FRAME, FRONT

$

$

Not available

55

Exmark 116-2290-03

BRACKET-AIR, LPG CLEANER

$

$

Not available

56

Exmark 116-2301-03

PLATE-INDEX, LPG TANK

$

$

Not available

57

Exmark 103-6364-01

WLD,WEIGHT MOUNT

$149.99

$

Usually ships in 3-6 days

0

58

Exmark 103-6367-01

WEIGHT,CAST 36LB

$482.99

$

Usually ships in 3-6 days

0

59

Exmark 103-6368-01

PLATE,WEIGHT ASM MOUNT

$94.99

$

In Stock, only 1 left!

0

60

Exmark 3231-10

SCREW-CARR

$4.99

$

In Stock, only 4 left!

0

61

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

62

Exmark 9335124

PIN-HAIR

$2.99

$

In Stock, only 1 left!

0

63

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

64

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

65

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

66

Exmark 116-2553-03

SUPPORT-REAR FRAME, LPG

$

$

Not available

67

Exmark 103-2883

DECAL

$10.99

$

In Stock, Qty 5

0

68

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

69

Exmark 325-13

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

70

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 20+

0

80

Exmark 3231-21

SCREW-CARR

$1.99

$

In Stock, Qty 6

0
