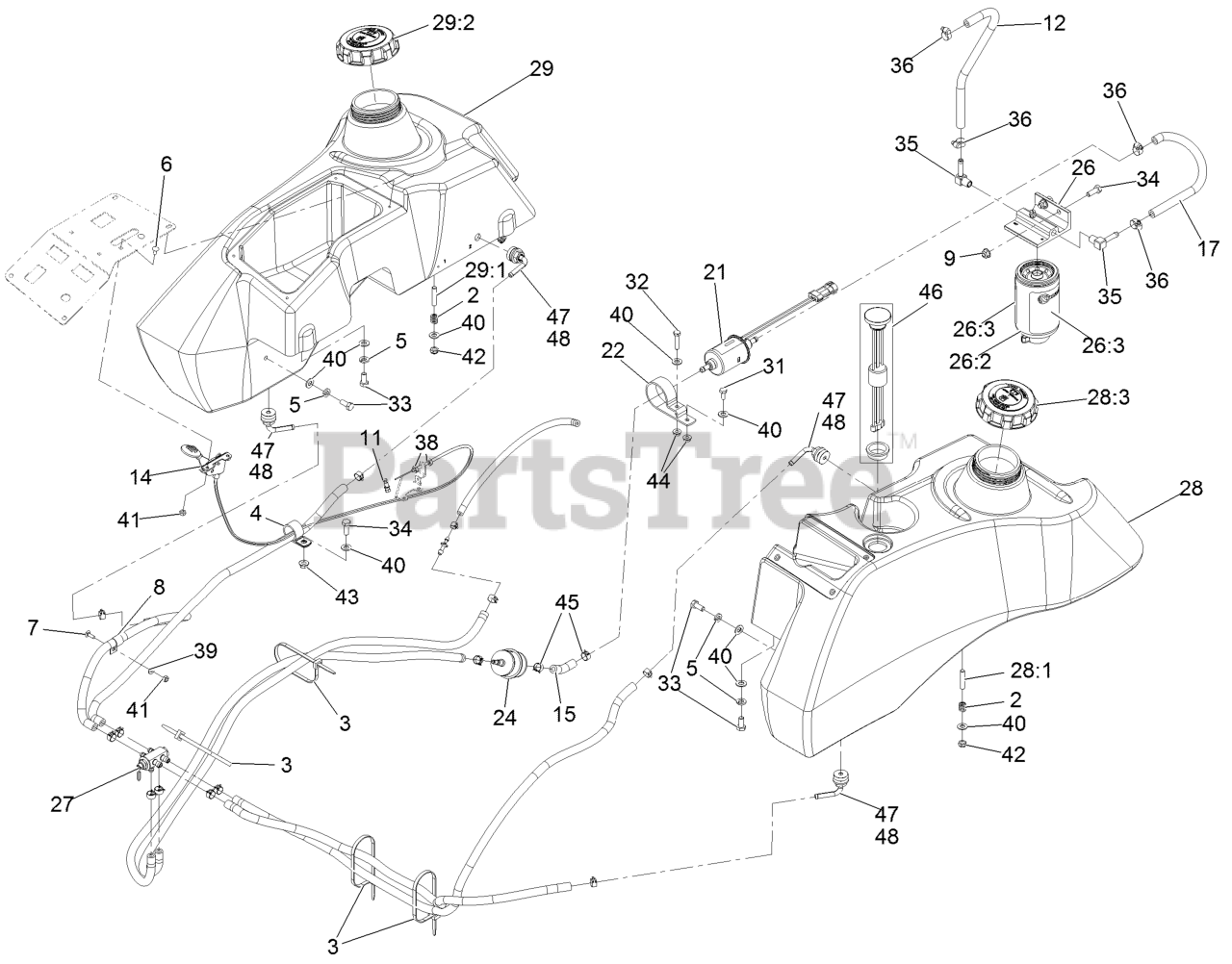

LZDS902K60RD - Exmark 60" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel (SN: 314000000 - 314999999) (2014) Fuel Assembly Parts Diagram

60" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel

Fuel Assembly Parts Diagram

  • Title

2

Exmark 1-633349

SPRING-TANK, FUEL

$5.99

$

In Stock, Qty 17

0

3

Exmark 1-643115

TIE-PLASTIC

$2.99

$

Usually ships in 3-6 days

0

4

Exmark 1-643312

CLIP-LOOM

$6.99

$

In Stock, only 2 left!

0

5

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 19

0

6

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

7

Exmark 1-807533

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

8

Exmark 103-1193

CLIP-HALF, LOOM

$

$

Not available

9

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Exmark 108-5928

SWIVEL-STOP, CABLE

$17.99

$

Usually ships in 3-6 days

0

12

Exmark 109-0274

HOSE-FUEL

$14.99

$

Usually ships in 3-6 days

0

14

Exmark 109-6652

CABLE,THROTTLE

$60.99

$

In Stock, only 3 left!

0

15

Exmark 110-0047

HOSE-FUEL

$15.99

$

Usually ships in 3-6 days

0

17

Exmark 110-4104

HOSE-FUEL

$11.99

$

Usually ships in 3-6 days

0

21

Exmark 110-8806

PUMP-FUEL
(Superseded to 144-4020)

$230.99

$

In Stock, Qty 8

0

22

Exmark 110-8817

BRACKET-PUMP, FUEL

$28.99

$

Usually ships in 3-6 days

0

24

Exmark 112-7836

FILTER-INLINE

$15.99

$

In Stock, Qty 15

0

26

Exmark 116-0290

FUEL FILTER ASM

$190.99

$

Usually ships in 3-6 days

0

26:2

Exmark 116-0289

FILTER-FUEL

$59.99

$

In Stock, Qty 10

0

26:3

Exmark 116-1559

Decal,Exmark Filter

$8.99

$

In Stock, only 1 left!

0

27

ASM, Fuel Valve-Hoses

Note: Not serviced separately

$

$

Not available

28

Exmark 116-0141

ASM,FUEL TANK LXS LH

$1023.99

$

Usually ships in 3-6 days

0

28:1

Exmark 1-633023

STUD

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on threads.

$6.99

$

In Stock, Qty 12

0

28:3

Exmark 114-5062

CAP-BIODIESEL

$38.99

$

Usually ships in 3-6 days

0

29

Exmark 116-0142

ASM, FUEL TANK LXS RH

$955.99

$

Usually ships in 3-6 days

0

29:1

Exmark 1-633023

STUD

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on threads.

$6.99

$

In Stock, Qty 12

0

29:2

Exmark 114-5062

CAP-BIODIESEL

$38.99

$

Usually ships in 3-6 days

0

31

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Exmark 321-8

SCREW-HH

$4.49

$

In Stock, only 2 left!

0

33

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

34

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 17

0

35

Exmark 353-707

FITTING-HYD, 90 DEG

$52.99

$

Usually ships in 3-6 days

0

36

Exmark 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0

38

Exmark 3220-1

NUT-JAM

$1.49

$

Usually ships in 3-6 days

0

39

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

40

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

41

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

42

Exmark 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

43

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

44

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

45

Exmark 92-2379

CLAMP-HOSE

$0.99

$

In Stock, Qty 9

0

46

Exmark 103-6564

KIT, CT FUEL GAGE REPL.

$81.99

$

In Stock, only 3 left!

0

47

Exmark 116-0968

FITTING,FUEL BULKHEAD W/O

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads

$48.99

$

Usually ships in 3-6 days

0

48

Exmark 103-2784

O-RING,BULKHEAD FITTING

$14.99

$

In Stock, only 2 left!

0
