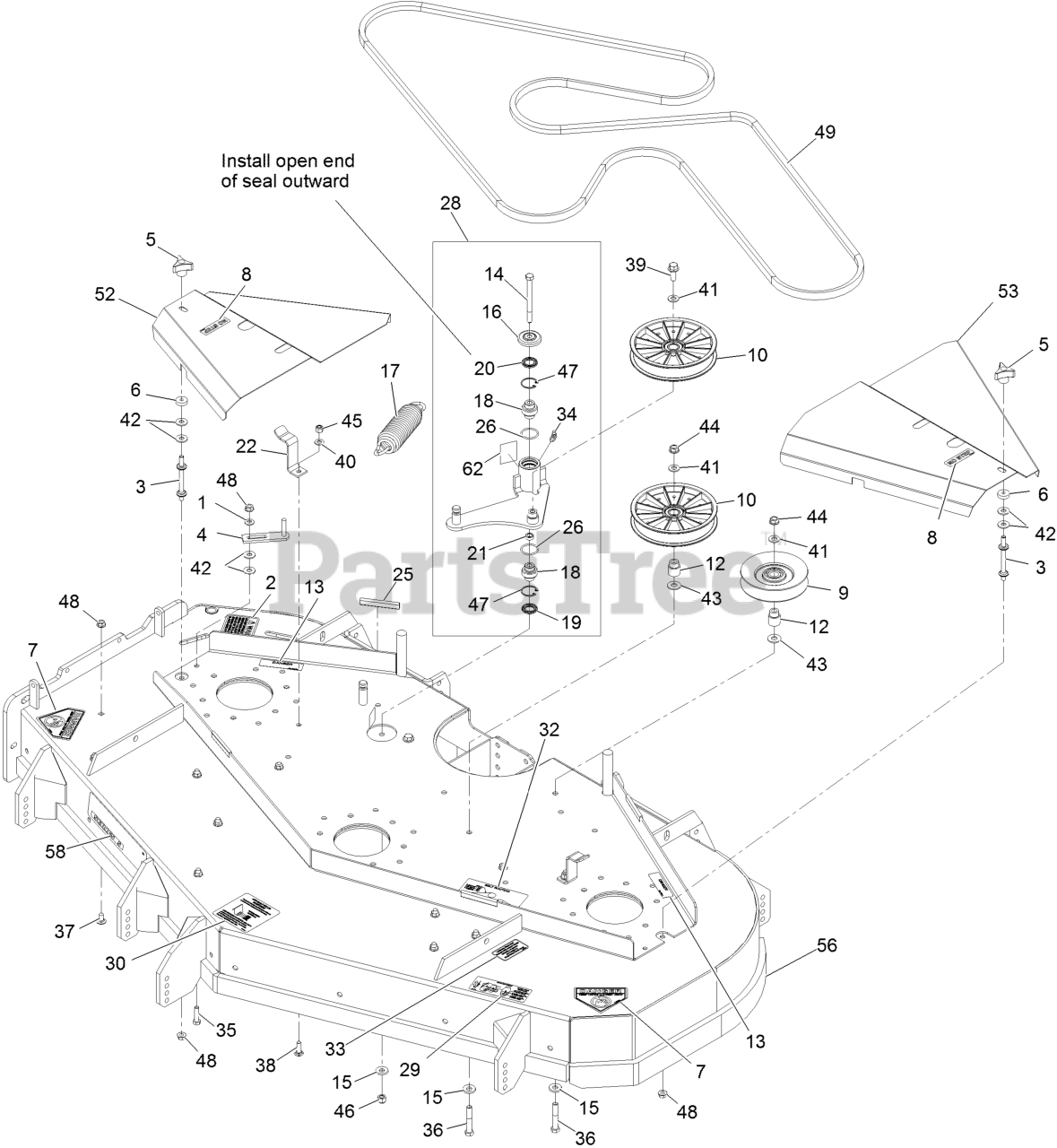

LZDS902K725 - Exmark 72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel (SN: 312000000 - 312999999) (2012) Deck Assembly 2 Parts Diagram

72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel

Deck Assembly 2 Parts Diagram

  • Title

1

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

2

Exmark 1-303508

DECAL-WARNING, DISCHARGE

$5.99

$

In Stock, Qty 20+

0

3

Exmark 1-303537

STUD-SHIELD, BELT (SHORT)

$6.99

$

In Stock, Qty 9

0

4

Exmark 1-322110

GUIDE-BELT

$13.99

$

In Stock, Qty 7

0

5

Exmark 1-323385

KNOB-3 PRONG

$5.99

$

In Stock, Qty 20+

0

6

Exmark 1-323417

WASHER

$3.99

$

In Stock, Qty 20+

0

7

Exmark 1-403005

DECAL-DANGER

$5.99

$

In Stock, Qty 20+

0

8

Exmark 1-513742

DECAL,NO STEP

$6.99

$

In Stock, Qty 18

0

9

Exmark 1-603805

PULLEY-IDLER

$67.99

$

In Stock, only 4 left!

0

10

Exmark 109-2796

PULLEY,IDLER 6"

$59.99

$

In Stock, Qty 20+

0

12

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

13

Exmark 98-5954

DECAL-COVER, MISSING

$10.99

$

In Stock, Qty 8

0

14

Exmark 98-5961

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

15

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

16

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 16

0

17

Exmark 116-0133

116-6317
(Superseded to 116-6317)

$31.99

$

In Stock, Qty 20+

0

18

Exmark 103-3504

BEARING-SPHERICAL

$28.99

$

In Stock, Qty 20+

0

19

Exmark 103-3505

SEAL-LIP, DOUBLE

$6.49

$

In Stock, Qty 20+

0

20

Exmark 103-3506

SEAL-LIP, SINGLE

$6.49

$

In Stock, Qty 20+

0

21

Exmark 103-5677

SPACER

$2.99

$

In Stock, Qty 9

0

22

Exmark 103-8103-01

LATCH,BELT SHIELD

$13.99

$

Usually ships in 3-6 days

0

25

Exmark 105-7699

STRIP-SEAL

$12.99

$

In Stock, Qty 20+

0

26

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

28

Exmark 109-2095

KIT, IDLER ARM W/BEARINGS

Note: Kit includes mounting hardware

$270.99

$

In Stock, only 1 left!

0

29

Exmark 109-0872

DECAL,BAFFLE ADJUSTMENT

$10.99

$

In Stock, only 4 left!

0

30

Exmark 109-1399

DECAL,ANTISCALP

$6.99

$

In Stock, only 4 left!

0

32

Exmark 109-2219

DECAL,BELT ROUTING

$10.99

$

Usually ships in 3-6 days

0

33

Exmark 109-3148

DECAL,BOLT TORQUE

$3.49

$

In Stock, Qty 13

0

34

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.99

$

In Stock, Qty 20+

0

35

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

36

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

37

Exmark 3230-18

SCREW-CARR

$5.99

$

In Stock, Qty 8

0

38

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, Qty 20+

0

39

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

40

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

41

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

42

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

43

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

44

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

45

Exmark 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

46

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

47

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0

48

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

49

Exmark 1-643052

BELT-V
(Superseded to 1-643052-SL)

$241.99

$

In Stock, only 2 left!

0

52

Exmark 109-2135

SHIELD, BELT RH 725 W/DEC

$230.99

$

Usually ships in 3-6 days

0

53

Exmark 109-2134

SHIELD,BELT LH 725 W/DECA

$230.99

$

Usually ships in 3-6 days

0

56

Exmark 109-2105

ASM, DECK 725 W/DECALS

$

$

Not available

58

Exmark 116-7118

DECAL, SERIES 5 - 72

$

$

Not available

61

Exmark 109-8527

Asm, Deck Complete 72"

Note: Not illustrated, Complete deck assembly includes all items except strut and chain assemblies; includes mule drive belt.

$

$

Currently unavailable

62

Exmark 103-5858

DECAL,GREASE

$

$

Not available
