LZDS902K725 - Exmark 72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel (SN: 312000000 - 312999999) (2012) Main Frame Assembly Parts Diagram

72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel

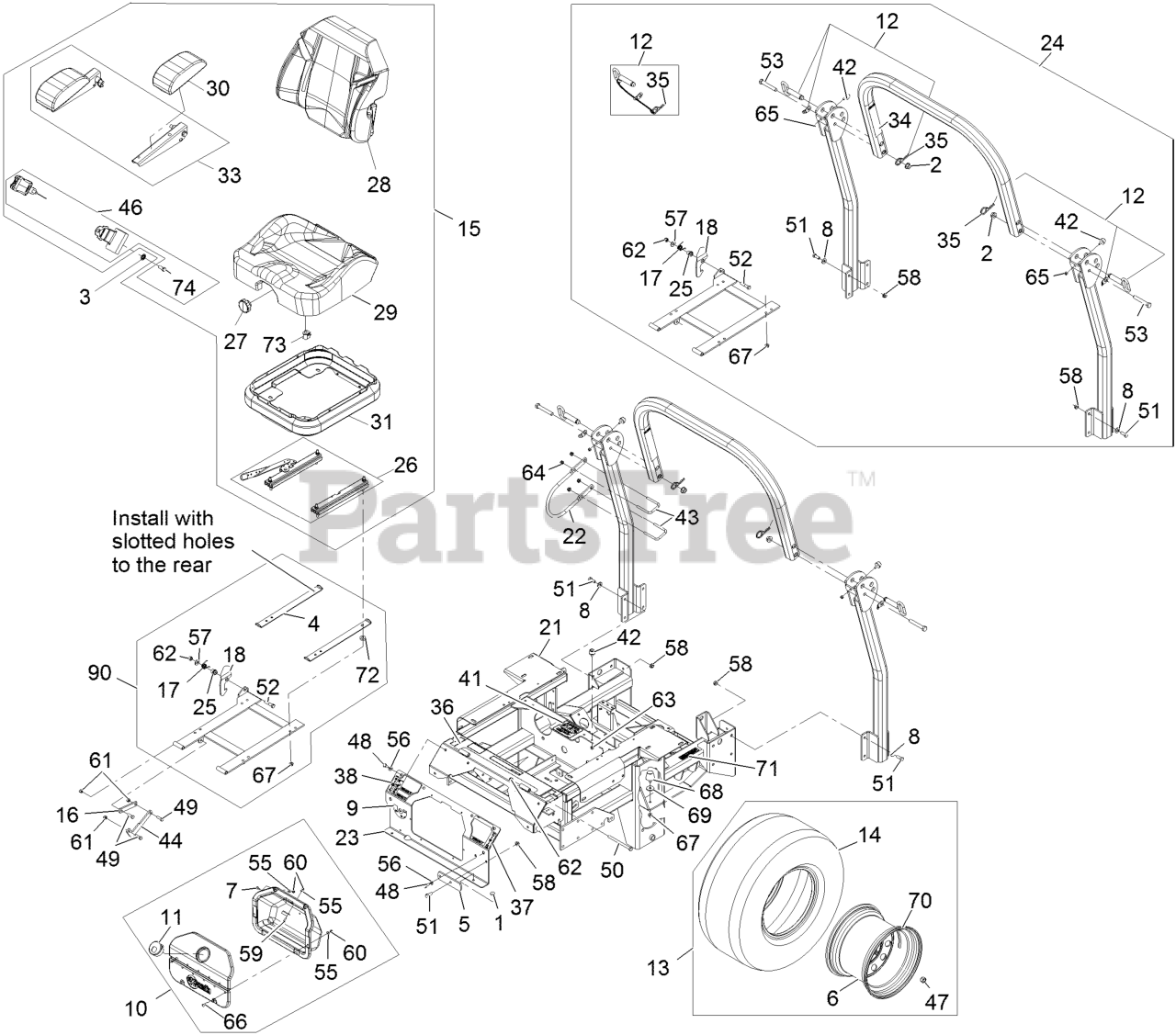

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 1-513658

BUMPER

$7.49

$

In Stock, Qty 20+

0

2

Exmark 32128-23

NUT-HF

$2.49

$

In Stock, Qty 20+

0

3

Exmark 1-603610

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

0

4

Exmark 1-653282-03

STOP/SPACER-SEAT

$60.99

$

Usually ships in 3-6 days

0

5

Exmark 1-633964-03

STOP-BRAKE, PARK

$13.99

$

Usually ships in 3-6 days

0

6

Exmark 109-3156

RIM

$267.99

$

In Stock, only 2 left!

0

7

Exmark 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

8

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

9

Exmark 103-0261

DECAL-VALVE, FUEL

$

$

Not available

10

Exmark 103-3666

ASM,CUBBY

$202.99

$

Usually ships in 3-6 days

0

11

Exmark 103-3790

LATCH,CUBBY

$47.99

$

In Stock, only 1 left!

0

12

Exmark 103-4553

PIN-FOLD, ROPS
(Superseded to 161-4477)

$37.99

$

Usually ships in 3-6 days

0

13

Exmark 109-3157

WHEEL AND TIRE ASM

$645.99

$

Usually ships in 3-6 days

0

14

Exmark 103-4963

TIRE

$483.99

$

Usually ships in 3-6 days

0

15

Exmark 116-6187

116-8912
(Superseded to 116-8912)

Note: Includes seat wiring harness.

$1794.99

$

In Stock, only 3 left!

0

16

Exmark 103-5161

LINK-STOP, SEAT

$

$

Not available

17

Exmark 103-5519

SPRING-TORSION, LATCH

$9.49

$

Usually ships in 3-6 days

0

18

Exmark 103-5520

CATCH-LATCH, SINGLE

$192.99

$

Usually ships in 3-6 days

0

21

Exmark 109-3984

ASM,KDXS ENGINE DECK W/DE

$7203.99

$

Usually ships in 3-6 days

0

22

Exmark 103-7599-03

GUARD

$

$

Not available

23

Exmark 109-2075

ASM, CONSOLE W/DECALS

$283.99

$

Usually ships in 3-6 days

0

24

Exmark 109-0060

KIT, 06 XS ROPS

Note: Includes seat belt assembly

$568.99

$

Usually ships in 3-6 days

0

25

Exmark 107-0075

BUSHING-LATCH, SEAT

$5.99

$

In Stock, only 1 left!

0

26

Exmark 116-5655

SEAT TRACK SET

$182.99

$

Usually ships in 3-6 days

0

27

Exmark 116-5658

KNOB-ADJUSTER

$36.99

$

Usually ships in 3-6 days

0

28

Exmark 116-5656

COVER-BACK 310951VN476

$216.99

$

Usually ships in 3-6 days

0

29

Exmark 116-5657

COVER-CUSHION 310952VN476

$216.99

$

Usually ships in 3-6 days

0

30

Exmark 109-9802

ARM REST PAD SET

$269.99

$

In Stock, only 1 left!

0

31

Exmark 116-5659

COVER-SUSPENSION, BELLOWS

$101.99

$

Usually ships in 3-6 days

0

33

Exmark 109-9803

ARM REST SET

$540.99

$

Usually ships in 3-6 days

0

34

Exmark 107-2102

DECAL-WARNING, FOLDING RO

$10.99

$

Usually ships in 3-6 days

0

35

Exmark 107-3155

HAIRPIN

$7.49

$

Usually ships in 3-6 days

0

36

Exmark 107-9866

DECAL-CONSOLE, TOP

$67.99

$

Usually ships in 3-6 days

0

37

Exmark 109-1214

DECAL,PARK BRAKE

$20.99

$

In Stock, only 1 left!

0

38

Exmark 109-1215

DECAL,DECK HEIGHT

$

$

Not available

41

Exmark 109-2264

DECAL,WARNING

$

$

Not available

42

Exmark 109-2365

BUMPER-RUBBER

$5.99

$

In Stock, Qty 20+

0

43

Exmark 109-2394

U-BOLT

$15.99

$

Usually ships in 3-6 days

0

44

Exmark 109-2759

LINK-STOP, SEAT

$

$

Not available

46

Exmark 109-9805

SEAT BELT KIT

$339.99

$

Usually ships in 3-6 days

0

47

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

48

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

49

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

50

Exmark 323-39

SCREW-HH

$12.99

$

In Stock, Qty 20+

0

51

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

52

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

53

Exmark 325-13

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

55

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

56

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

57

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

58

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

59

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

60

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

61

Exmark 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

62

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

63

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

64

Exmark 3296-69

NUT-LOCK, NI

$11.99

$

Usually ships in 3-6 days

0

65

Exmark 3296-73

NUT-LOCK, NI

$5.99

$

In Stock, Qty 20+

0

66

Exmark 32122-28

SCREW

$5.99

$

Usually ships in 3-6 days

0

67

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

68

Exmark 543963

Bumper-Rubber

$

$

Currently unavailable

69

Exmark 63-8410

WASHER

$2.49

$

In Stock, only 2 left!

0

70

Exmark 116-2643

126-2055
(Superseded to 126-2055)

$6.99

$

In Stock, Qty 11

0

71

Exmark 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

Usually ships in 3-6 days

0

72

Exmark 26-4840

5-0652
(Superseded to 5-0652)

$8.49

$

In Stock, only 3 left!

0

73

Exmark 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 20+

0

74

Exmark 3212-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

90

Exmark 109-9228

KIT,SEAT FRAME SERVICE

Note: Includes seat belt assembly

$

$

Not available
