LZDS902K725 - Exmark 72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel (SN: 313000000 - 313999999) (2013) Deck Assembly No. 116-9149 Parts Diagram

72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel

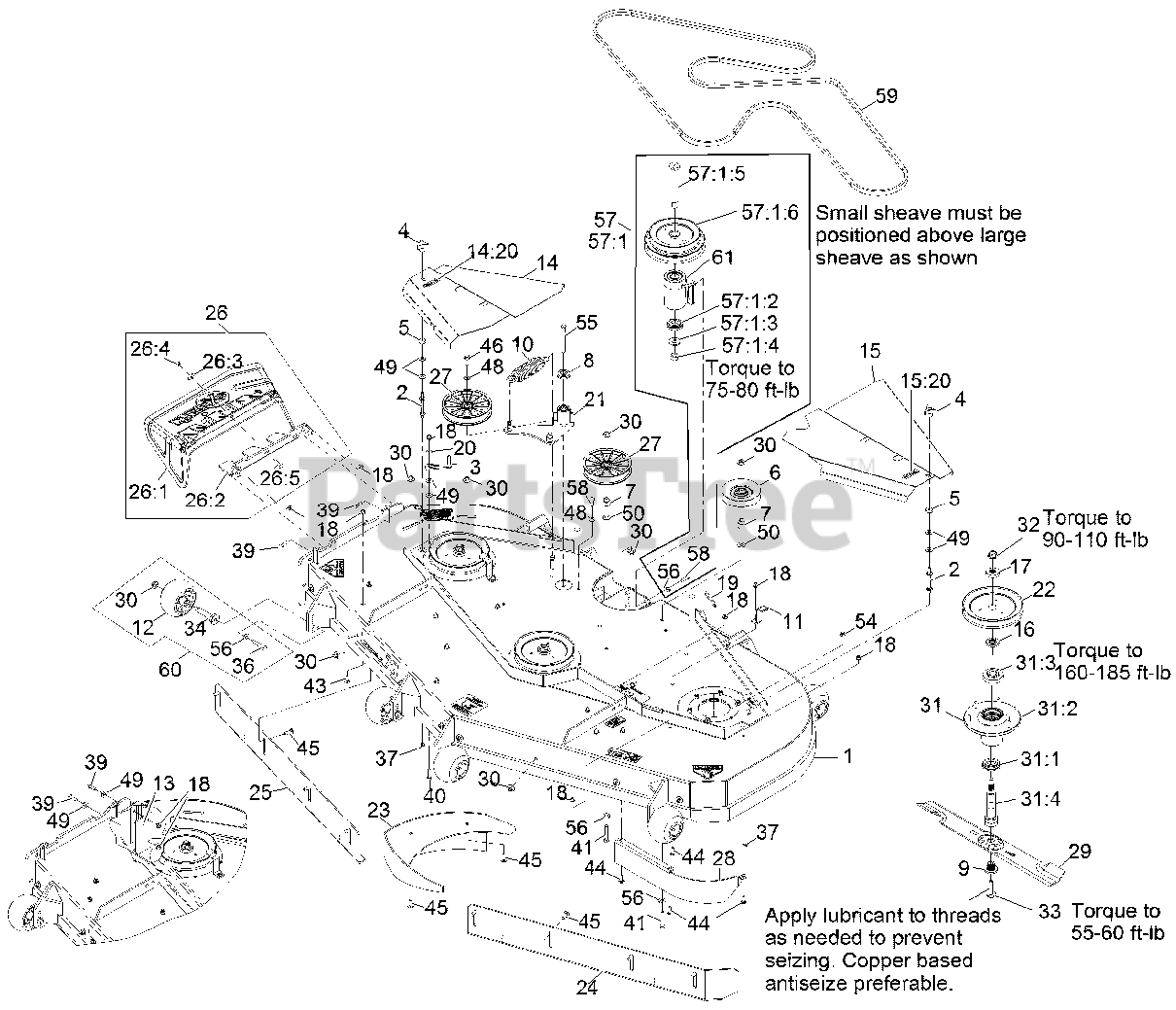

Deck Assembly No. 116-9149 Parts Diagram

  • Title

1

Exmark 109-2105

ASM, DECK 725 W/DECALS

$

$

Not available

2

Exmark 1-303537

STUD-SHIELD, BELT (SHORT)

$6.99

$

In Stock, Qty 9

0

3

Exmark 1-322110

GUIDE-BELT

$13.99

$

In Stock, Qty 7

0

4

Exmark 1-323385

KNOB-3 PRONG

$5.99

$

In Stock, Qty 20+

0

5

Exmark 1-323417

WASHER

$3.99

$

In Stock, Qty 20+

0

6

Exmark 1-603805

PULLEY-IDLER

$67.99

$

In Stock, only 3 left!

0

7

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

8

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 16

0

9

Exmark 103-3037

BUSHING,SPLINED

$25.99

$

In Stock, Qty 20+

0

10

Exmark 116-6317

SPRING-EXTENSION

$31.99

$

In Stock, Qty 18

0

11

Exmark 103-8103-01

LATCH,BELT SHIELD

$13.99

$

Usually ships in 3-6 days

0

12

Exmark 103-8415

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 20+

0

13

Exmark 103-9423-01

DEFLECTOR,DISCHARGE

$37.99

$

Usually ships in 3-6 days

0

14

Exmark 109-2135

SHIELD, BELT RH 725 W/DEC

$230.99

$

Usually ships in 3-6 days

0

14:20

Exmark 1-513742

DECAL,NO STEP

$6.99

$

In Stock, Qty 18

0

15

Exmark 109-2134

SHIELD,BELT LH 725 W/DECA

$230.99

$

Usually ships in 3-6 days

0

15:20

Exmark 1-513742

DECAL,NO STEP

$6.99

$

In Stock, Qty 18

0

16

Exmark 103-9522

SPACER,SPLINED STEPPED

$7.99

$

In Stock, only 2 left!

0

17

Exmark 103-9523

SPACER,SPLINED

$9.49

$

In Stock, Qty 9

0

18

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

19

Exmark 105-7699

STRIP-SEAL

$12.99

$

In Stock, Qty 20+

0

20

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

21

Exmark 109-2095

KIT, IDLER ARM W/BEARINGS

$270.99

$

In Stock, only 1 left!

0

22

Exmark 109-0929

SHEAVE,BLADE DRIVE 7.25

$59.99

$

In Stock, Qty 8

0

23

Exmark 109-1039-01

WLD,DOGLEG 725

$280.99

$

Usually ships in 3-6 days

0

24

Exmark 109-1044-01

WLD,BAFFLE FRT ADJ LH 725

$357.99

$

Usually ships in 3-6 days

0

25

Exmark 109-1047-01

WLD,BAFFLE FRT ADJ RH 725

$

$

Not available

26

Exmark 109-2099

ASM, DISCHARGE CHUTE

$265.99

$

In Stock, only 1 left!

0

26:1

Exmark 109-2739

CHUTE,DISCHARGE LZ

$114.99

$

Usually ships in 3-6 days

0

26:2

Exmark 109-0498-01

HINGE,DISCHARGE CHUTE

$103.99

$

Usually ships in 3-6 days

0

26:3

Exmark 3256-82

WASHER-FLAT

$0.99

$

In Stock, Qty 7

0

26:4

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

26:5

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, Qty 20+

0

27

Exmark 109-2796

PULLEY,IDLER 6"

$59.99

$

In Stock, Qty 20+

0

28

Exmark 109-5532-01

BAFFLE,SCROLL 725

$

$

Not available

29

Exmark 109-6465

109-6465-S
(Superseded to 109-6465-S)

$57.99

$

In Stock, Qty 6

0

29

Exmark 109-6471

109-6471-S
(Superseded to 109-6471-S)

$57.99

$

In Stock, only 1 left!

0

29

Exmark 109-5879

109-5879-S
(Superseded to 109-5879-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$54.99

$

In Stock, Qty 11

0

29

Exmark 103-9622

103-9622-S
(Superseded to 103-9622-S)

$61.99

$

Usually ships in 3-6 days

0

29

Exmark 103-9625

116-5501-S
(Superseded to 116-5501-S)

$70.99

$

In Stock, Qty 5

0

29

Exmark 103-9631

116-5501-S
(Superseded to 116-5501-S)

$70.99

$

In Stock, Qty 5

0

30

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

31

Exmark 109-6917

ASM,SPINDLE HOUSING

$447.99

$

In Stock, Qty 9

0

31:1

Exmark 103-9504

GUARD,BOTTOM

$13.99

$

Usually ships in 3-6 days

0

31:2

Exmark 103-9539

ASM,CUTTER HOUSING

$439.99

$

In Stock, only 1 left!

0

31:3

Exmark 109-0916

NUT, SPINDLE 7/8-14

$27.99

$

Usually ships in 3-6 days

0

31:4

Exmark 109-6881

SPINDLE,DOUBLE SPLINE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$160.99

$

In Stock, only 1 left!

0

32

Exmark 109-7033

NUT-FLANGE, CENTERLOCK

$2.99

$

In Stock, Qty 20+

0

33

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.99

$

In Stock, Qty 20+

0

34

Exmark 109-9851

126-2928
(Superseded to 126-2928)

$42.99

$

In Stock, Qty 20+

0

36

Exmark 3211-46

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

37

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

39

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

40

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

41

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

43

Exmark 3230-18

SCREW-CARR

$5.99

$

In Stock, Qty 8

0

44

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, Qty 20+

0

45

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

46

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

48

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

49

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

50

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

54

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

55

Exmark 98-5961

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

56

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

57

Exmark 103-3249

KIT,JACKSHAFT 60/72-3750

$547.99

$

Usually ships in 3-6 days

0

57:1

ASM, Jackshaft 60 & 72 3750

Note: Not serviced separately

$

$

Not available

57:1:2

Exmark 103-2535

SPACER-GUARD, BOTTOM

$13.99

$

In Stock, only 2 left!

0

57:1:3

Exmark 1-513208

WASHER-SPRING

$10.99

$

Usually ships in 3-6 days

0

57:1:4

Exmark 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

57:1:5

Exmark 1-643393

JACKSHAFT

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$36.99

$

In Stock, Qty 20+

0

57:1:6

Exmark 103-3046

SHEAVE, JACKSHAFT DOUBLE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$135.99

$

In Stock, only 2 left!

0

58

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

59

Exmark 1-643052

BELT-V
(Superseded to 1-643052-SL)

$241.99

$

In Stock, only 2 left!

0

60

Exmark 109-2098

116-9981
(Superseded to 116-9981)

$56.99

$

In Stock, Qty 20+

0

61

Exmark 103-9746

KIT, JACKSHAFT ASSY

$287.99

$

In Stock, only 3 left!

0
