LZDS902K72RD - Exmark 72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel (SN: 313000000 - 313999999) (2013) Complete Deck Assembly Parts Diagram

72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel

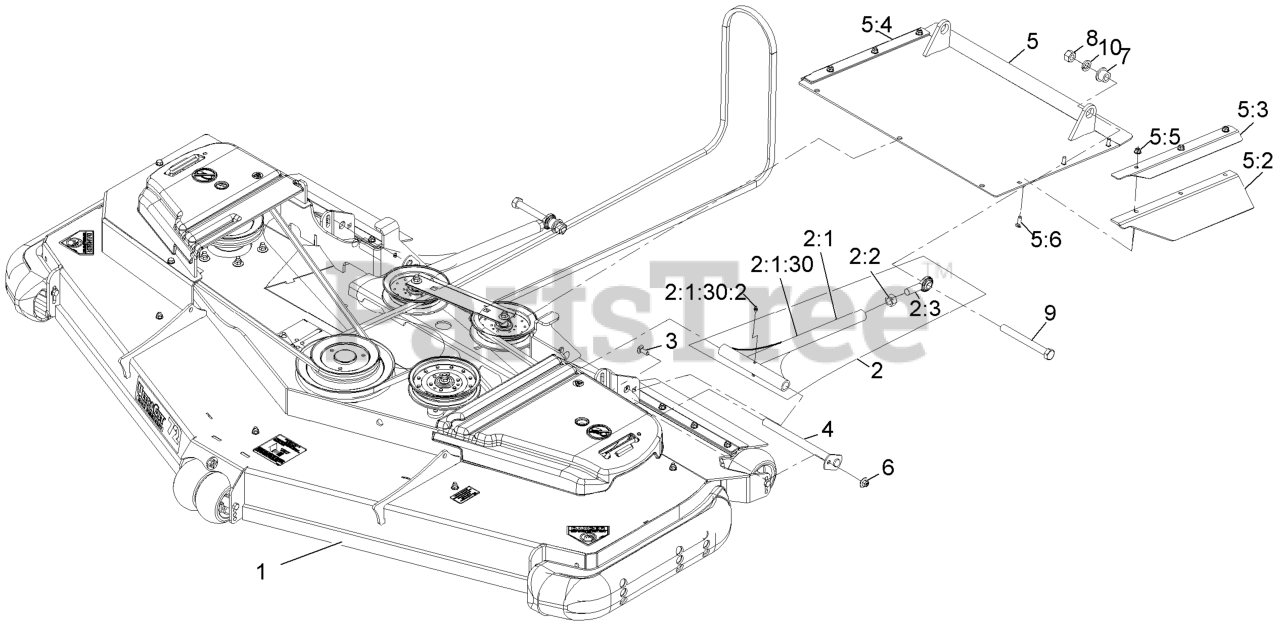

Complete Deck Assembly Parts Diagram

  • Title

1

Exmark 116-9147

ASM-Deck Complete Rd72

$

$

Currently unavailable

2

Exmark 103-8544

ASM,DECK STRUT XS 72

$439.99

$

Usually ships in 3-6 days

0

2:1

Exmark 109-1183

WLD,DECK STRUT

$444.99

$

Usually ships in 3-6 days

0

2:1:30

Tube And Zerk ASM

Note: Not serviced separately

$

$

Not available

2:1:30:2

Exmark 109-1380

302-19
(Superseded to 302-19)

$2.99

$

In Stock, Qty 20+

0

2:2

Exmark 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

2:3

Exmark 1-633029

BALLJOINT-SPHERICAL

$71.99

$

In Stock, Qty 11

0

3

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

4

Exmark 1-632199-01

PIN-STRUT

$38.99

$

In Stock, Qty 10

0

5

Exmark 116-8489

ASM-DISCHARGE TUNNEL RD72

$

$

Not available

5:2

Exmark 116-8484

FLAP-RD TUNNEL SIDE

$

$

Not available

5:3

Exmark 116-8485-03

BRKT-RD TUNNEL FLAP LH

$

$

Not available

5:4

Exmark 116-8490-03

BRKT-RD TUNNEL FLAP RH

$

$

Not available

5:5

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5:6

Exmark 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 5

0

6

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

7

Exmark 92-9252

BUSHING-FLANGE

$10.99

$

Usually ships in 3-6 days

0

8

Exmark 3217-11

NUT-HEX

$3.99

$

In Stock, Qty 15

0

9

Exmark 1-800344

SCREW

$17.99

$

Usually ships in 3-6 days

0

10

Exmark 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0
