LZDS902K72RD - Exmark 72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel (SN: 314000000 - 314999999) (2014) Electrical Assembly Parts Diagram

72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel

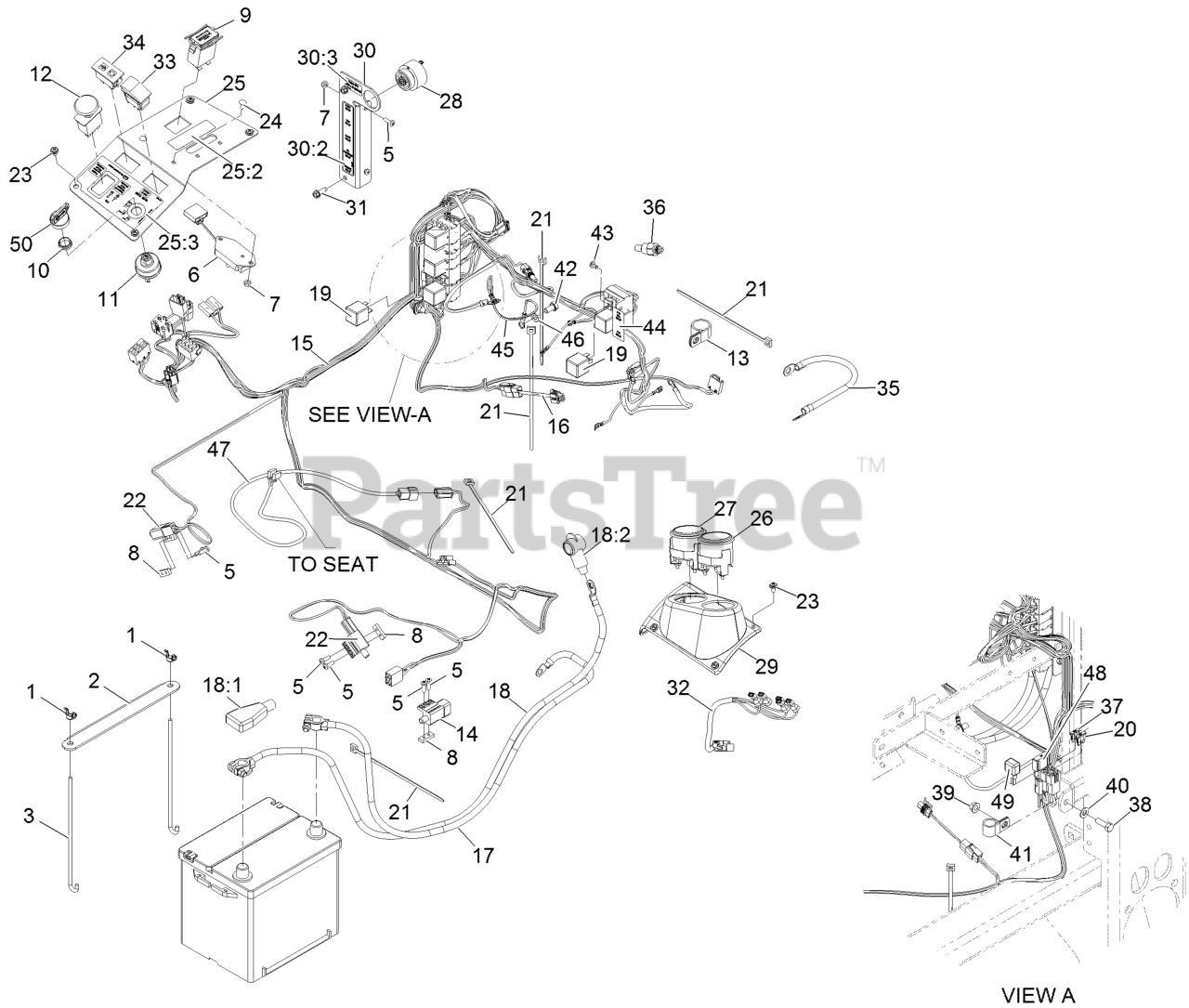

Electrical Assembly Parts Diagram

  • Title

1

Exmark 1-543792

WINGNUT

$6.99

$

In Stock, Qty 20+

0

2

Exmark 103-1311-03

HOLDDOWN-BATTERY

$29.99

$

Usually ships in 3-6 days

0

3

Exmark 103-1312

BOLT-HOLDDOWN

$6.99

$

Usually ships in 3-6 days

0

5

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

6

Exmark 103-5218

MODULE-DELAY, SEAT

$49.99

$

In Stock, only 2 left!

0

7

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Exmark 1-633181

PLATE-TAPPED

$7.49

$

In Stock, only 3 left!

0

9

Exmark 1-513374

METER-HOUR
(Superseded to 120-2244)

$76.99

$

In Stock, Qty 5

0

10

Exmark 103-0498

NUT-SWITCH, IGNITION

$3.99

$

In Stock, Qty 10

0

11

Exmark 103-0206

109-4736
(Superseded to 109-4736)

$45.99

$

In Stock, Qty 15

0

12

Exmark 114-0279

SWITCH-PTO, ON-ON

$64.99

$

In Stock, Qty 20+

0

13

Exmark 1-643312

CLIP-LOOM

$6.99

$

In Stock, only 2 left!

0

14

Exmark 1-633111

SWITCH

$23.99

$

In Stock, Qty 5

0

15

Exmark 116-8236

HARNESS,WIRING-LZDS KUBOT

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$

$

Not available

16

Exmark 110-8808

HARNESS-WIRE

$44.99

$

Usually ships in 3-6 days

0

17

Exmark 109-3074

CABLE-BATTERY NEGATIVE

$84.99

$

Usually ships in 3-6 days

0

18

Exmark 109-7607

ASM,POSITIVE BATTERY CABL

Note: Includes insulators

$108.99

$

Usually ships in 3-6 days

0

18:1

Exmark 103-1340

INSULATOR-TERMINAL, BATTE

$5.99

$

Usually ships in 3-6 days

0

18:2

Exmark 103-1420

INSULATOR-STARTER

$7.49

$

Usually ships in 3-6 days

0

19

Exmark 1-643275

RELAY

$26.99

$

In Stock, Qty 19

0

20

Exmark 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.99

$

In Stock, only 3 left!

0

21

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

22

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$21.99

$

In Stock, Qty 13

0

23

Exmark 109-2661

SCREW-PPH

$1.49

$

In Stock, Qty 13

0

24

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

25

Exmark 116-5139

CONTROL PANEL W/DECALS

$

$

Not available

25:2

Exmark 103-1798

DECAL,THROTTLE ONLY

$12.99

$

In Stock, only 2 left!

0

25:3

Exmark 116-5185

DECAL-CONTROL PANEL

$

$

Not available

26

Exmark 1-643021

GAUGE-TEMPERATURE

$156.99

$

Usually ships in 3-6 days

0

27

Exmark 1-643037

GAUGE-VOLTMETER

$231.99

$

In Stock, only 1 left!

0

28

Exmark 103-0205

ALARM-TONE, DUAL

$74.99

$

In Stock, only 2 left!

0

29

Exmark 103-3684

BEZEL, GAGE XP LH TANK

$118.99

$

Usually ships in 3-6 days

0

30

Exmark 109-3495

ASM,RELAY BRKT W/ DECALS

$

$

Not available

30:2

Exmark 109-2951

DECAL,RELAY KUBOTA

$

$

Not available

30:3

Exmark 109-2478

DECAL

$

$

Not available

31

Exmark 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

32

Exmark 103-4339

HARNESS-GAUGE

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$

$

Not available

33

Exmark 110-0811

SWITCH-ROCKER

$77.99

$

In Stock, only 1 left!

0

34

Exmark 109-2488

LAMP-WARNING

$84.99

$

Usually ships in 3-6 days

0

35

Exmark 103-1349

CABLE-ENGINE NEGATIVE

$20.99

$

Usually ships in 3-6 days

0

36

Exmark 103-7886

SENDER,TEMPERATURE

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$99.99

$

Usually ships in 3-6 days

0

37

Exmark 103-1368

FUSE-40 AMP

$5.99

$

Usually ships in 3-6 days

0

38

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

39

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

40

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

41

Exmark 1-633396

CLIP-LOOM

$5.99

$

Usually ships in 3-6 days

0

42

Exmark 33114-016

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

43

Exmark 104-2065

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

44

Exmark 116-5074

DECAL-RELAY DIESEL

$

$

Not available

45

Exmark 116-5163

GROUND WIRE ASM

$

$

Not available

46

Exmark 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

47

Exmark 103-1227

HARNESS-WIRING, SEAT

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$26.99

$

Usually ships in 3-6 days

0

48

Exmark 94-8002

FUSE-BLADE, 50 AMP

$30.99

$

Usually ships in 3-6 days

0

49

Exmark 100-4918

DIODE

$25.99

$

Usually ships in 3-6 days

0

50

Exmark 103-2106

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0
