LZDS902K72RD - Exmark 72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel (SN: 314000000 - 314999999) (2014) Seat Frame Single Latch Assembly Parts Diagram
72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel

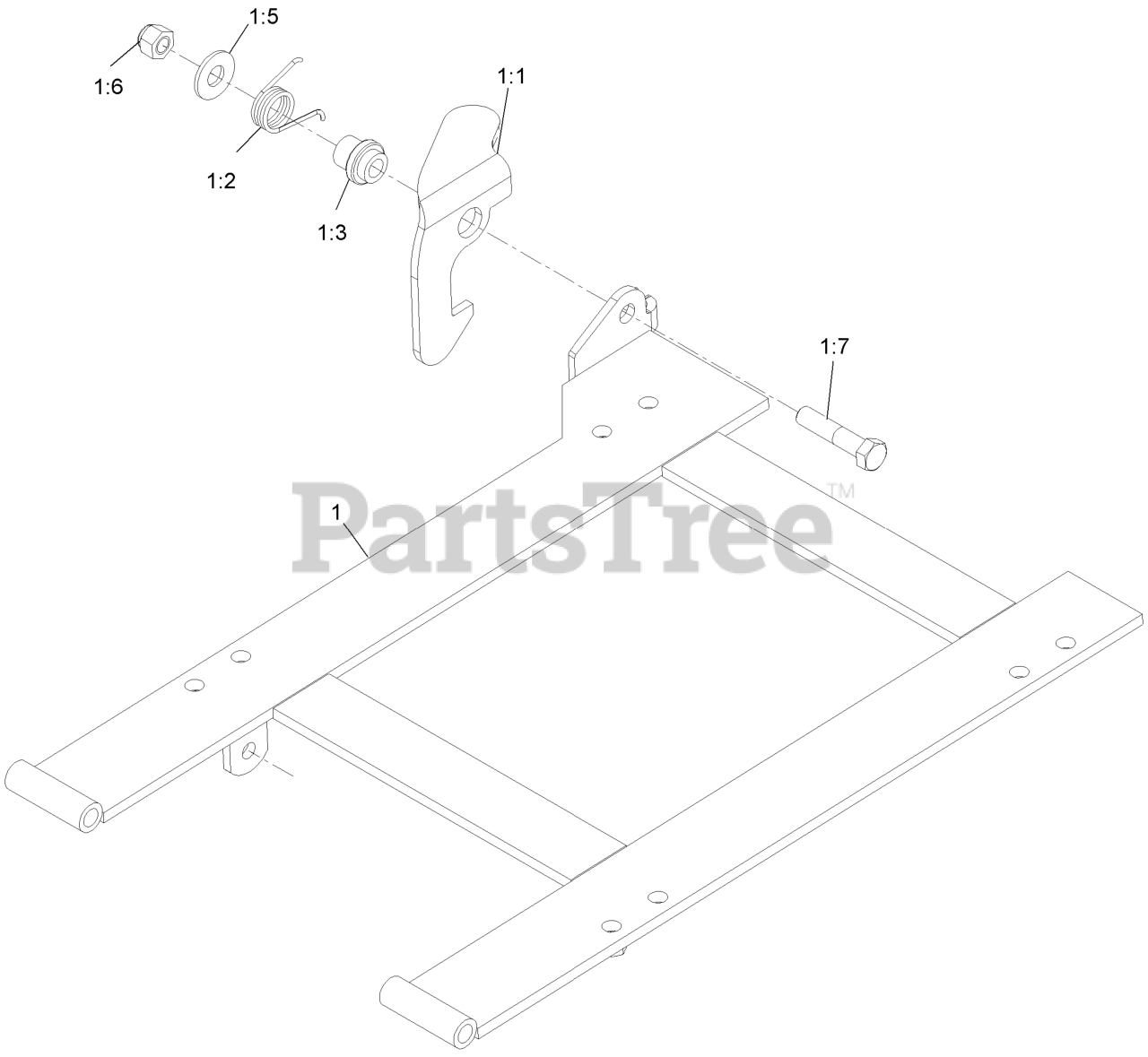

Seat Frame Single Latch Assembly Parts Diagram
1
Seat Frame Single Latch ASM
Note: Not serviced separately
$
$
Not available
Exmark 103-5520
CATCH-LATCH, SINGLE
$192.99
$
Usually ships in 3-6 days
Exmark 103-5519
SPRING-TORSION, LATCH
$9.49
$
Usually ships in 3-6 days
Exmark 107-0075
BUSHING-LATCH, SEAT
$5.99
$
In Stock, only 1 left!
Exmark 3256-4
WASHER-FLAT
$1.99
$
In Stock, Qty 20+
Exmark 3296-39
NUT-LOCK, NI
$2.99
$
In Stock, Qty 20+
Exmark 323-9
SCREW-HH
$1.49
$
In Stock, Qty 20+
