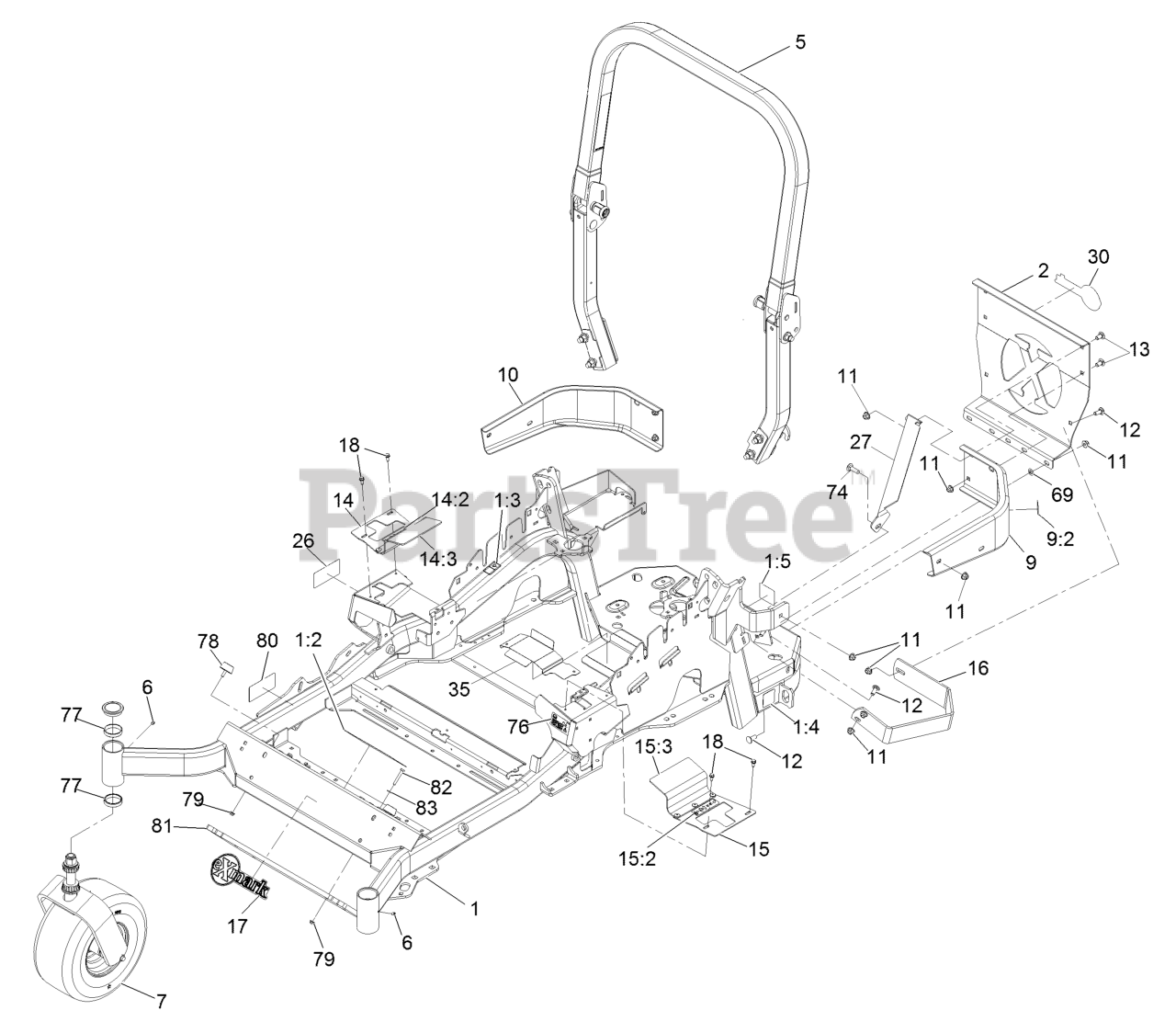

LZE730GKA524B2 - Exmark 52" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX (SN: 316000000 - 399999999) (2016) Main Frame Assembly Parts Diagram

52" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 126-6618

116-5900
(Superseded to 142-7272)

$3646.99

$

Usually ships in 3-6 days

0

1:2

Exmark 132-0871

DECAL-DANGER

$10.99

$

Usually ships in 3-6 days

0

1:3

Exmark 106-5517

DECAL-WARNING

$5.99

$

In Stock, only 2 left!

0

1:4

Exmark 106-2655

DECAL-HAZARD, PINCHED FINGER

$1.99

$

Usually ships in 3-6 days

0

1:5

Exmark 116-4858

DECAL-SPARK ARRESTER

$3.99

$

Usually ships in 3-6 days

0

2

Exmark 109-8863-03

PLATE,REAR GUARD

$202.99

$

Usually ships in 3-6 days

0

5

Exmark 116-2882

ROPS ASM

$501.99

$

Usually ships in 3-6 days

0

6

Exmark 1-811010

PLUG

$5.99

$

In Stock, only 3 left!

0

7

Front Caster And Fork ASM

$

$

Not available

9

Exmark 116-0180

LH BUMPER ASM

Note: Not serviced separately

$167.99

$

Usually ships in 3-6 days

0

9:2

Exmark 106-5517

DECAL-WARNING

$5.99

$

In Stock, only 2 left!

0

10

Exmark 116-0057-03

BUMPER-RH

$247.99

$

Usually ships in 3-6 days

0

11

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

13

Exmark 3231-21

SCREW-CARR

$1.99

$

In Stock, Qty 6

0

14

Exmark 131-4615

RH MOTION CONTROL COVER A

$142.99

$

Usually ships in 3-6 days

0

14:2

Exmark 99-8936

DECAL-CONTROL, MOTION

$25.99

$

Usually ships in 3-6 days

0

14:3

Exmark 131-4605

FLAP-RUBBER

$

$

Not available

15

Exmark 131-4610

LH MOTION CONTROL COVER A

$142.99

$

Usually ships in 3-6 days

0

15:2

Exmark 99-8936

DECAL-CONTROL, MOTION

$25.99

$

Usually ships in 3-6 days

0

15:3

Exmark 131-4605

FLAP-RUBBER

$

$

Not available

16

Exmark 126-2067-03

GUARD-MUFFLER

$68.99

$

Usually ships in 3-6 days

0

17

Exmark 126-6969

DECAL-EXMARK LOGO

$8.99

$

In Stock, Qty 10

0

18

Exmark 32144-10

SCREW-HWH

$5.49

$

In Stock, Qty 16

0

26

Exmark 126-6571

DECAL-E-SERIES

$6.99

$

Usually ships in 3-6 days

0

27

Exmark 127-0324-03

STRAP

$30.99

$

Usually ships in 3-6 days

0

30

Exmark 126-6965

DECAL-EXMARK LOGO
(Superseded to 126-6877)

$8.99

$

In Stock, only 2 left!

0

35

Exmark 116-2999-01

GUARD-BELT

$43.99

$

Usually ships in 3-6 days

0

69

Exmark 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 5

0

74

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$2.49

$

In Stock, Qty 20+

0

76

Exmark 117-3864

DECAL-FUEL FILL, CE

$16.99

$

Usually ships in 3-6 days

0

77

Exmark 1-543508

CUP-BEARING

$8.99

$

In Stock, Qty 20+

0

78

Exmark 131-8834

BUMPER

$12.99

$

Usually ships in 3-6 days

0

79

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

80

Exmark 126-4345

Decal-Patent Ttco.Com

$1.99

$

In Stock, Qty 9

0

81

Exmark 132-5075-01

WEIGHT-TOE BOARD
(Superseded to 140-4963-01)

$167.99

$

Usually ships in 3-6 days

0

82

Exmark 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

83

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
