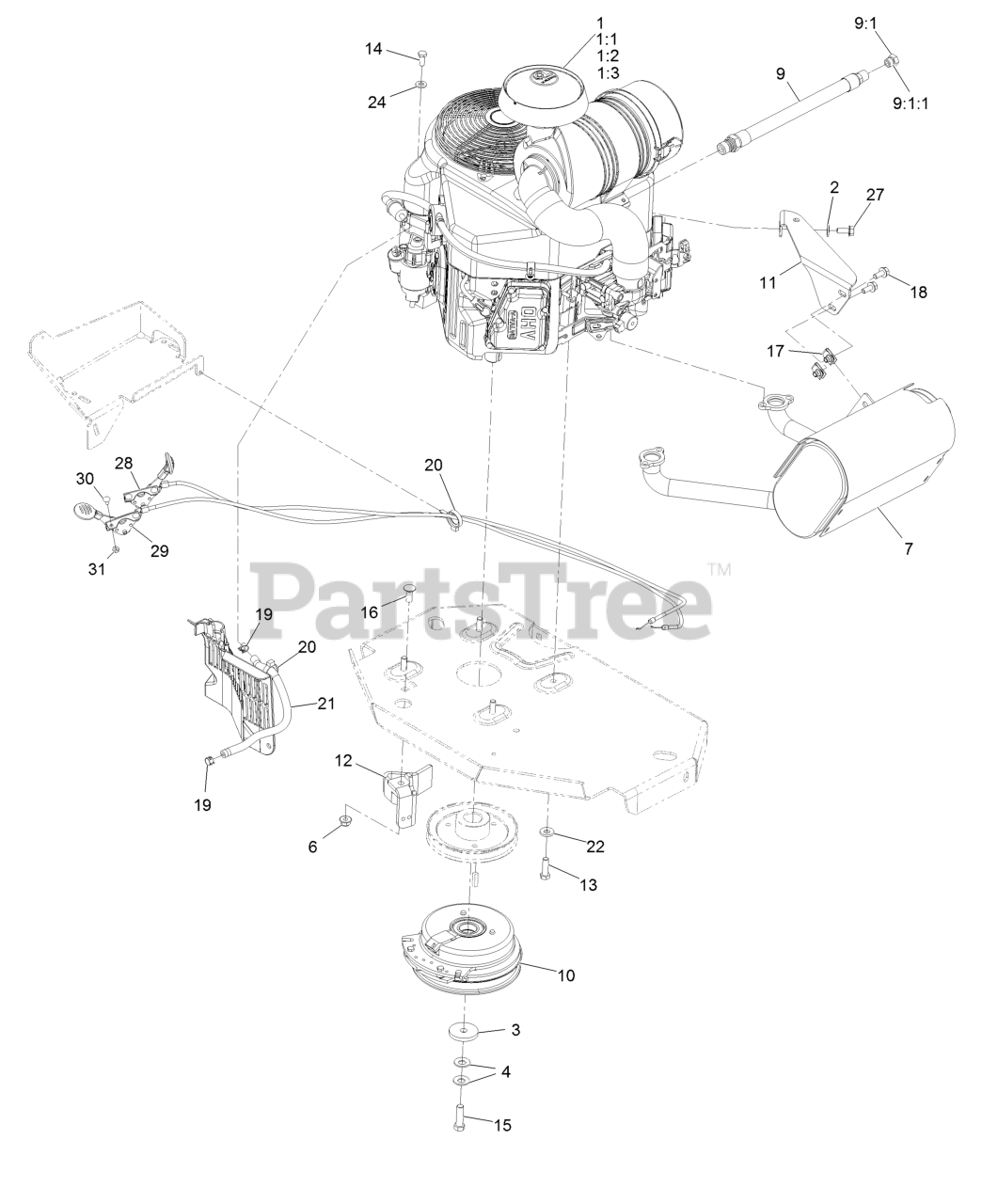

LZE730GKA524C2 - Exmark 52" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX (SN: 402082300 - 404314158) (2018) Engine Assembly Parts Diagram

52" Lazer Z E-Series Zero-Turn Mower, Kawasaki FX

Engine Assembly Parts Diagram

  • Title

1

Engine-Kawasaki,Fx730V-S16-R

$

$

Not available

1:1

Kawasaki 49065-7007 Engine Oil Filter

$

$

Not available

1:2

Kawasaki 11013-7044 Engine Air Filter

$

$

Not available

1:3

Kawasaki 11013-7045 Safety Filter

$

$

Not available

2

Exmark 1-303334

Washer-Spring Disc 5/16

$2.99

$

In Stock, Qty 20+

0

3

Exmark 109-6919

Washer-Clutch

$8.99

$

In Stock, Qty 6

0

4

Exmark 1-603610

Washer-Spring Disc 7/16

$5.99

$

In Stock, Qty 20+

0

6

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

7

Exmark 116-1715

Muffler

$279.99

$

Usually ships in 3-6 days

0

9

Exmark 116-4924

Asm-Hose Oil Drain W/Plug

$42.99

$

In Stock, Qty 6

0

9:1

Exmark 353-508

Plug-W/O-Ring

$9.49

$

In Stock, only 1 left!

0

9:1:1

Exmark 237-42

O-Ring

$3.49

$

In Stock, Qty 14

0

10

Exmark 116-1620

Clutch Kit

$392.99

$

In Stock, Qty 16

0

11

Exmark 116-1435

Bracket-Muffler

$36.99

$

Usually ships in 3-6 days

0

12

Exmark 116-2612-01

Clutch-Anchor

$60.99

$

In Stock, only 2 left!

0

13

Exmark 323-7

Screw-HH 3/8-16 X 1 1/4

$3.49

$

In Stock, Qty 20+

0

14

Exmark 33114-020

Screw-HH M8-1.25 X 20Mm

$0.99

$

In Stock, Qty 10

0

15

Exmark 109-9761

Screw-HH 7/16-20 X 1 1/2 W/Loctite

$5.99

$

In Stock, Qty 11

0

16

Exmark 3231-22

Bolt-Carriage 3/8-16 X 1

$3.99

$

In Stock, Qty 20+

0

17

Exmark 94-2413

Nut-U

$2.99

$

In Stock, Qty 11

0

18

Exmark 3234-5

Screw-HH Flg 5/16-18 X 3/4

$1.49

$

In Stock, Qty 20+

0

19

Exmark 2412-98

Clamp-Hose

$1.99

$

In Stock, Qty 20+

0

20

Exmark 105-1853

Clamp-Hose

$5.99

$

In Stock, only 2 left!

0

21

Exmark 109-0296

Hose-Fuel Line 15"

$11.99

$

In Stock, only 2 left!

0

22

Exmark 98-5975

Washer-Spring Disc 3/8

$3.99

$

In Stock, Qty 20+

0

24

Exmark 33094-00

Washer

$0.99

$

Usually ships in 3-6 days

0

27

Exmark 95-4184

Screw-HH M8-1.25 X 20Mm
(Superseded to 139-3392)

$3.49

$

In Stock, only 1 left!

0

28

Exmark 109-8167

ASM, Choke Cable

$60.99

$

In Stock, Qty 12

0

29

Exmark 116-1972

ASM,Throttle Cable

$40.99

$

In Stock, Qty 20+

0

30

Exmark 1-807513

Bolt-Carriage #10-24 X 1/2

$2.99

$

In Stock, Qty 20+

0

31

Exmark 3296-2

Nut-Nyloc #10-24

$2.49

$

In Stock, Qty 20+
