LZE742KC604 - Exmark 60" Lazer Z E-Series Zero-Turn Mower, Kohler ECV742 (SN: 314000000 - 314999999) (2014) Rear Wheel And Park Brake Assembly Parts Diagram

60" Lazer Z E-Series Zero-Turn Mower, Kohler ECV742

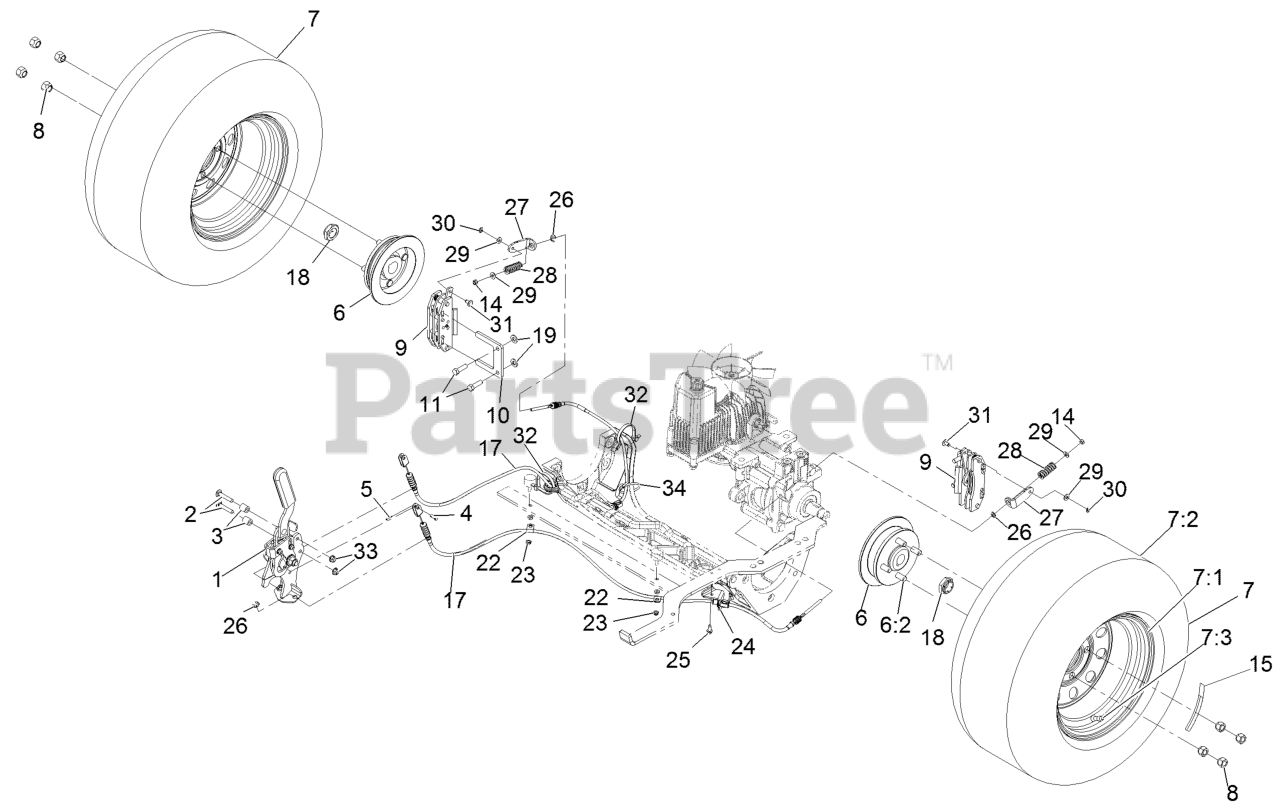

Rear Wheel And Park Brake Assembly Parts Diagram

  • Title

1

Exmark 116-7551

BRAKE HANDLE ASM

$345.99

$

Usually ships in 3-6 days

0

2

Exmark 116-0629

SCREW-CARR

$2.99

$

Usually ships in 3-6 days

0

3

Exmark 82-6840

SPACER

$7.99

$

In Stock, only 2 left!

0

4

Exmark 60-1730

PIN-CLEVIS

$5.99

$

In Stock, only 3 left!

0

5

Exmark 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 10

0

6

Exmark 116-1746

WHEEL HUB ASM
(Superseded to 142-2701)

$127.99

$

In Stock, Qty 20+

0

6:2

Exmark 116-1696

STUD-WHEEL

$4.49

$

In Stock, Qty 20+

0

7

Exmark 116-8294

ASM-WHEEL AND TIRE

$449.99

$

Usually ships in 3-6 days

0

7:1

Exmark 116-8295

ASM-RIM 60

$187.99

$

In Stock, Qty 20+

0

7:2

Exmark 116-8296

TIRE-DRIVE

$381.99

$

Usually ships in 3-6 days

0

7:3

Exmark 232-27

Stem-Valve

$

$

Not available

8

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

9

Exmark 109-2889

CALIPER-BRAKE

$207.99

$

In Stock, Qty 20+

0

10

Exmark 109-0958

PLATE-MOUNT, BRAKE

$17.99

$

In Stock, Qty 9

0

11

Exmark 92-5727

SCREW-LOCK, PATCH

$3.99

$

In Stock, Qty 9

0

14

Exmark 3296-13

NUT-LOCK, NI

$4.49

$

In Stock, Qty 16

0
