LZE810GBV604A3 - Exmark 60" Lazer Z E-Series Zero-Turn Mower, Briggs & Stratton (SN: 416150475 - 417930745) (Rev A) (2024) Engine Assembly Parts Diagram

60" Lazer Z E-Series Zero-Turn Mower, Briggs & Stratton

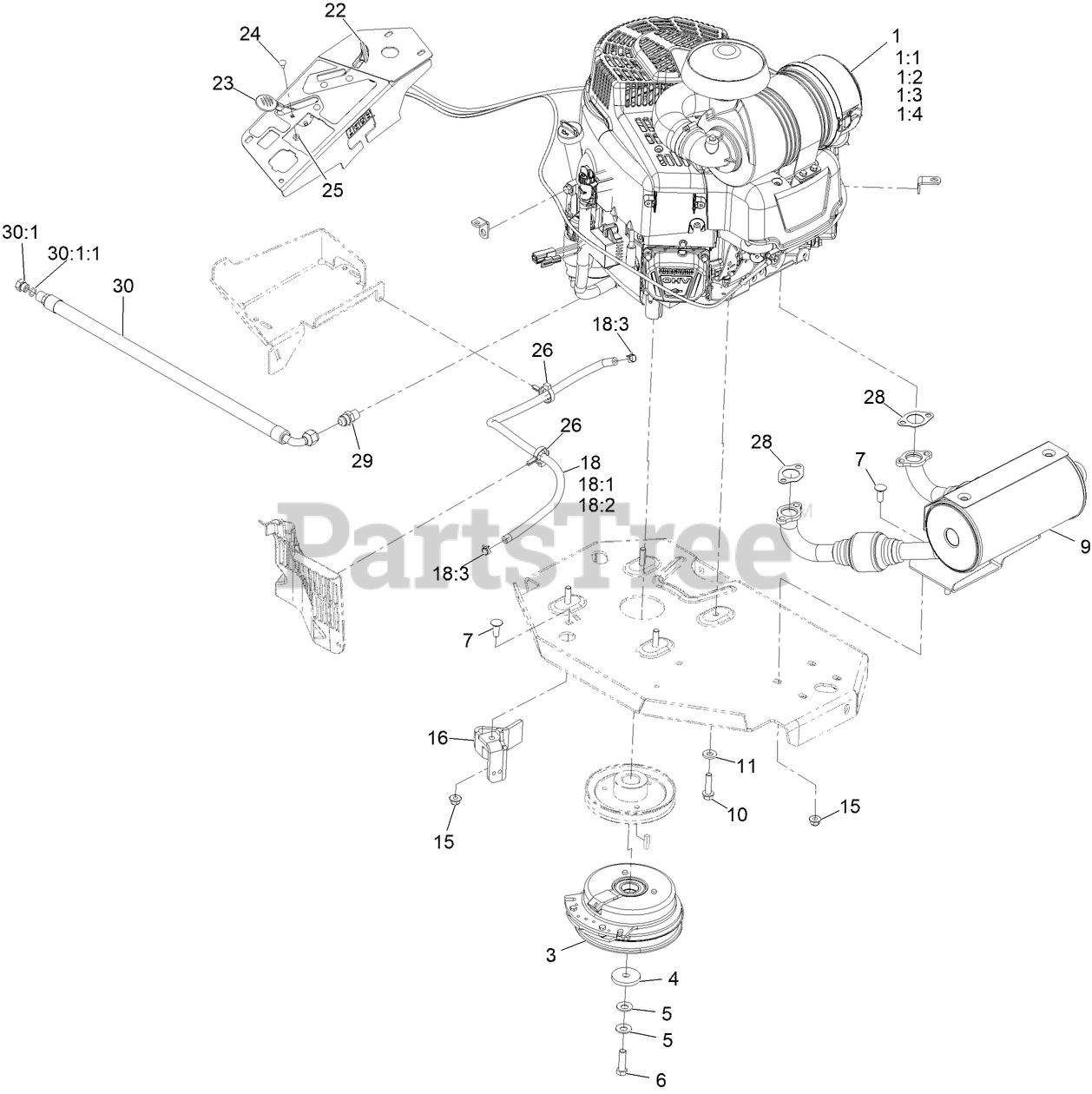

Engine Assembly Parts Diagram

  • Title

1

Engine, 810 Vanguard Carb

Note: Not serviced separately | Obtain parts from www.briggsandstratton.com

$

$

Not available

1:1

Briggs Engine Oil Filter 696854

Note: Not serviced separately | Obtain parts from www.briggsandstratton.com

$

$

Not available

1:2

Briggs Engine Air Filter 841497

Note: Not serviced separately | Obtain parts from www.briggsandstratton.com

$

$

Not available

1:3

Briggs Engine Safety Filter 821136

Note: Not serviced separately | Obtain parts from www.briggsandstratton.com

$

$

Not available

1:4

Filter-Fuel

Note: Not serviced separately | Obtain parts from www.briggsandstratton.com

$

$

Not available

3

Exmark 116-1620

CLUTCH KIT

$392.99

$

In Stock, Qty 16

0

4

Exmark 109-6919

WASHER-CLUTCH

$8.99

$

In Stock, Qty 6

0

5

Exmark 1-603610

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

0

6

Exmark 109-9761

SCREW-HH 7/16-20 X 1 1/2 W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads. | Torque to 49-61 ft-lb

$5.99

$

In Stock, Qty 11

0

7

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

9

Exmark 142-9193

KIT, MUFFLER

$516.99

$

Usually ships in 3-6 days

0

10

Exmark 32144-102

SCREW-HWH

Note: Torque to 27-33 ft-lb

$3.99

$

In Stock, only 3 left!

0

11

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

15

Exmark 104-8301

NUT-HF, NI

$1.49

$

Usually ships in 3-6 days

0

16

Exmark 116-2612-01

CLUTCH-ANCHOR

$60.99

$

In Stock, only 2 left!

0

18

Exmark 126-1414

FUEL LINE ASM

$49.99

$

Usually ships in 3-6 days

0

18:1

Exmark 109-0286

HOSE-FUEL

$25.99

$

Usually ships in 3-6 days

0

18:2

Exmark 126-1417

SLEEVE-THERMAL

$38.99

$

Usually ships in 3-6 days

0

18:3

Exmark 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

22

Exmark 126-6943

CABLE-CONTROL, CHOKE

$44.99

$

Usually ships in 3-6 days

0

23

Exmark 116-0969

ASM,THROTTLE CABLE

$55.99

$

In Stock, Qty 10

0

24

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

25

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

26

Exmark 105-1853

CLAMP-HOSE

$5.99

$

In Stock, only 2 left!

0

28

Exmark 142-9194

Gasket, Exhaust

$7.99

$

Usually ships in 3-6 days

0

29

Exmark 116-1455

FITTING-STRAIGHT

Note: Torque to 21-27 ft-lb

$7.99

$

Usually ships in 3-6 days

0

30

Exmark 142-9689

ASM, Oil Drain Hose W/Plug

Note: Torque to 17-23 ft-lb

$67.99

$

Usually ships in 3-6 days

0

30:1

Exmark 353-508

PLUG-HH

Note: Torque to 24-26 ft-lb

$9.49

$

In Stock, only 1 left!

0

30:1:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 14

0
