LZS740PKC60400 - Exmark 60" Lazer Z S-Series Zero-Turn Mower, Kohler Propane (SN: 402082300 - 404314158) (2018) Engine Assembly Parts Diagram

60" Lazer Z S-Series Zero-Turn Mower, Kohler Propane

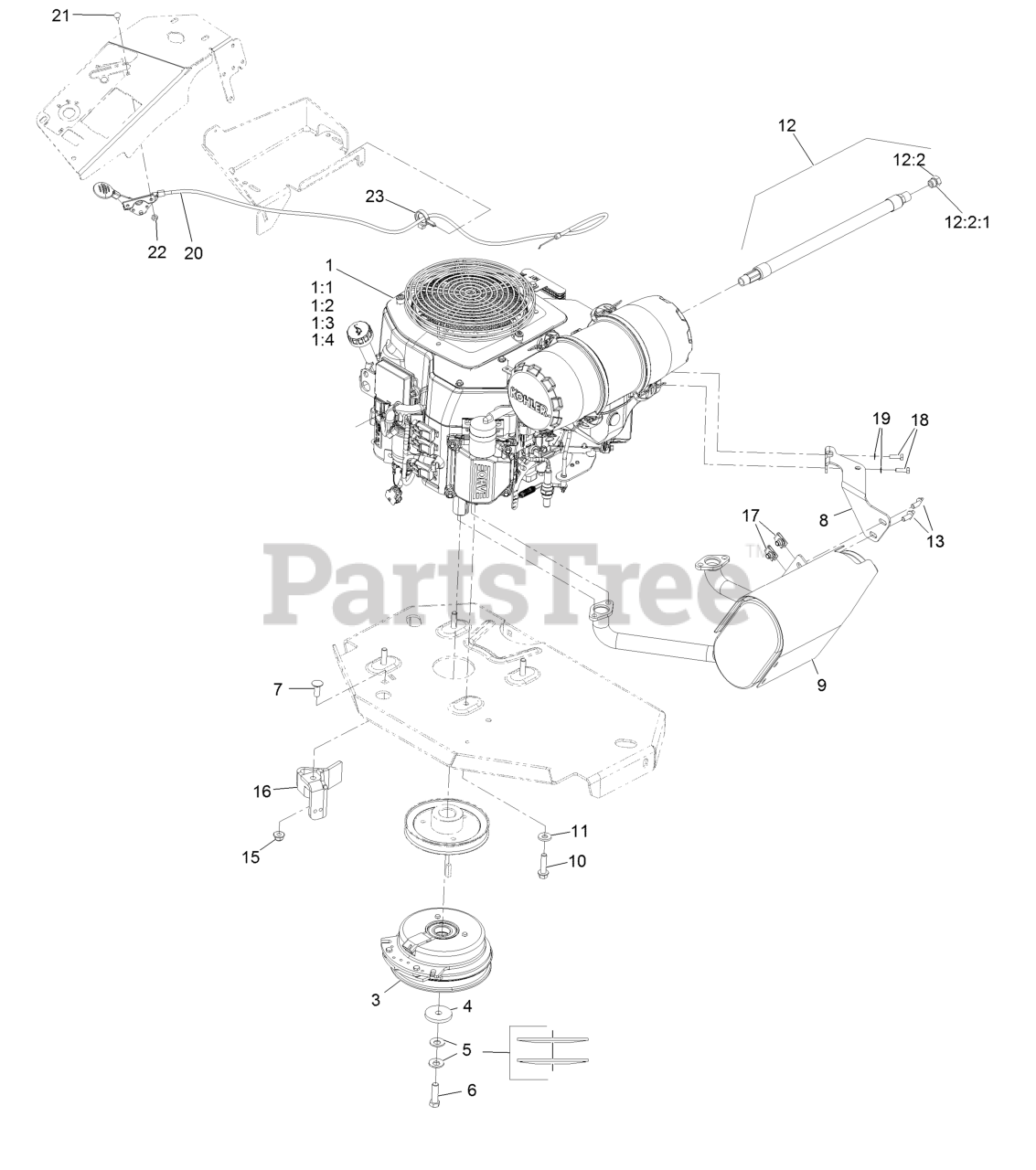

Engine Assembly Parts Diagram

  • Title

1

Engine-Kohler Pcv740

$

$

Not available

1:1

Exmark 135-0337

Kohler 52 050 02-S Engine Oil Filter

$

$

Currently unavailable

1:2

Exmark 135-0338

Kohler 25 083 01-S Engine Air Filter

$

$

Currently unavailable

1:3

Exmark 135-0339

Kohler 25 083 04-S Safety Filter

$

$

Currently unavailable

1:4

Exmark 135-3814

Kohler 25 050 50-S Propane Fuel Filter

$

$

Currently unavailable

3

Exmark 116-1620

Clutch Kit

$392.99

$

In Stock, Qty 15

0

4

Exmark 109-6919

Washer-Clutch

$8.99

$

In Stock, Qty 6

0

5

Exmark 1-603610

Washer-Spring Disc 7/16

$5.99

$

In Stock, Qty 20+

0

6

Exmark 109-9761

Screw-HH 7/16-20 X 1 1/2 W/Loctite

$5.99

$

In Stock, Qty 11

0

7

Exmark 3231-22

Bolt-Carriage 3/

$3.99

$

In Stock, Qty 20+

0

8

Exmark 116-4297

Muffler Bracket

$82.99

$

In Stock, only 4 left!

0

9

Exmark 135-2127

Muffler Kit
(Superseded to 142-6858)

$538.99

$

In Stock, only 3 left!

0

10

Exmark 32144-102

Screw-HWH 3/8-16 X 1 1/2 Taptite

$3.99

$

In Stock, only 3 left!

0

11

Exmark 98-5975

Washer-Spring Disc 3/8

$3.99

$

In Stock, Qty 20+

0

12

Exmark 116-5316

Oil Drain Hose ASM

$62.99

$

In Stock, Qty 11

0

12:2

Exmark 353-508

Plug-W/O-Ring

$9.49

$

In Stock, only 1 left!

0

12:2:1

Exmark 237-42

O-Ring

$3.49

$

In Stock, Qty 14

0

13

Exmark 3234-5

Screw-HH Flg 5/16-18 X 3/4

$1.49

$

In Stock, Qty 20+

0

15

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

16

Exmark 116-2612-01

Clutch-Anchor

$60.99

$

Usually ships in 3-6 days

0

17

Exmark 94-2413

Nut-U

$2.99

$

In Stock, Qty 11

0

18

Exmark 116-4295

Screw-HH M6-1 X 20Mm W/Patch

$5.99

$

Usually ships in 3-6 days

0

19

Exmark 1-303435

Washer-Spring Disc 1/4

$1.99

$

In Stock, Qty 20+

0

20

Exmark 116-0969

ASM,Throttle Cable

$55.99

$

In Stock, Qty 10

0

21

Exmark 1-807513

Bolt-Carriage #10-24 X 1/2

$2.99

$

In Stock, Qty 20+

0

22

Exmark 3296-2

Nut-Nyloc #10-24

$2.49

$

In Stock, Qty 20+

0

23

Exmark 105-1853

Clamp-Hose

$5.99

$

In Stock, only 2 left!

0
