LZS80TDYM604W0 - Exmark 60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 402082300 - 404314158) (2018) Electrical Assembly Parts Diagram

60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

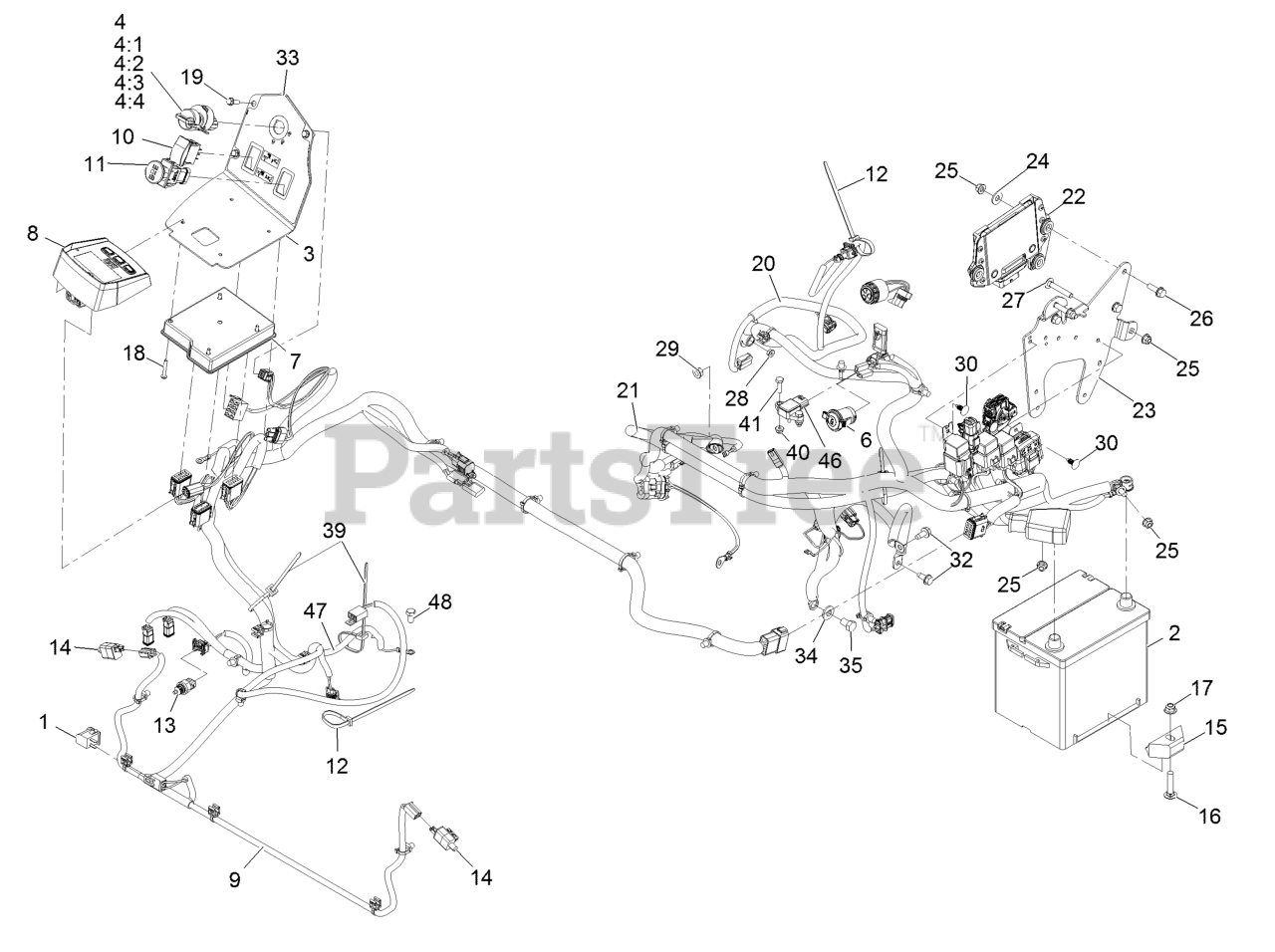

Electrical Assembly Parts Diagram

  • Title

1

Exmark 82-2190

Switch

$15.99

$

In Stock, Qty 20+

0

2

Battery-Dry

$

$

Not available

3

Exmark 126-6788-03

Plate-Console

$

$

Currently unavailable

4

Exmark 126-6285

Ignition Switch ASM

$59.99

$

In Stock, Qty 20+

0

4:1

Switch-Ignition

$

$

Not available

4:2

Exmark 108-8660

Nut-Mounting

$38.99

$

Usually ships in 3-6 days

0

4:3

Exmark 106-5270

Ignition Key Set

$25.99

$

In Stock, only 2 left!

0

4:4

Exmark 108-8659

Washer-Backup

$16.99

$

Usually ships in 3-6 days

0

6

Exmark 126-6499

Port-Power, 12V

$17.99

$

Usually ships in 3-6 days

0

7

Exmark 135-3427

Module-Mcu

$422.99

$

Usually ships in 3-6 days

0

8

Exmark 126-4232

Module, Ldu

$512.99

$

Usually ships in 3-6 days

0

9

Exmark 126-7262

Harness-Wire

$706.99

$

Usually ships in 3-6 days

0

10

Exmark 100-1535

Switch, (On)-Off-(On)

$99.99

$

In Stock, only 4 left!

0

11

Exmark 126-6187

Switch-PTO, Sealed

$59.99

$

In Stock, Qty 5

0

12

Exmark 1-303335

Tie-Cable 7 15/16 (Large)
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

13

Exmark 126-7698

Sensor-Temperature
(Superseded to 146-3819)

$84.99

$

In Stock, only 1 left!

0

14

Exmark 110-6765

Switch

$14.99

$

In Stock, Qty 20+

0

15

Exmark 66-2490

Retainer-Battery
(Superseded to 138-6335)

$12.99

$

Usually ships in 3-6 days

0

16

Exmark 3231-5

Bolt-Carriage 3/8-16 X 1 3/4

$1.99

$

In Stock, Qty 20+

0

17

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

18

Exmark 126-5092

Screw-PPH

$3.99

$

Usually ships in 3-6 days

0

19

Exmark 32105-15

Screw-Machine 1/4-20 X 3/4

$2.99

$

In Stock, Qty 20+

0

20

Exmark 126-7387

Harness-Wire, Yanmar
(Superseded to 142-7960)

$811.99

$

Usually ships in 3-6 days

0

21

Exmark 126-7406

Cable-Battery

$187.99

$

Usually ships in 3-6 days

0

22

Exmark 135-4280

Ecu ASM
(Superseded to 135-4281)

$2503.99

$

Usually ships in 3-6 days

0

23

Exmark 135-0503-03

Bracket, Ecu Mount [black]

$55.99

$

Usually ships in 3-6 days

0

24

Exmark 3256-3

Washer-5/16 Std

$0.99

$

In Stock, Qty 20+

0

25

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

26

Exmark 3234-29

Screw-HH Flg 5/16-18 X 1

$2.99

$

In Stock, only 1 left!

0

27

Exmark 3230-6

Bolt-Carriage 3/16-18 X 2

$1.49

$

In Stock, Qty 9

0

28

Exmark 33003-00

Nut-Hex M6-1 Flg

$0.99

$

Usually ships in 3-6 days

0

29

Exmark 127-2371

Nut-HF

$3.49

$

Usually ships in 3-6 days

0

30

Exmark 117-2382

Plug-Plastic

$0.99

$

In Stock, Qty 20+

0

32

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

33

Exmark 126-9278

Decal-Control Panel

$23.99

$

Usually ships in 3-6 days

0

34

Exmark 98-5975

Washer-Spring Disc 3/8

$3.99

$

In Stock, Qty 20+

0

35

Exmark 33115-016

Screw-HH

$2.49

$

Usually ships in 3-6 days

0

39

Exmark 3290-378

Tie-Cable

$0.99

$

In Stock, Qty 8

0

40

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

41

Exmark 321-5

Screw-HH 1/4-20 X 7/8

$0.99

$

In Stock, Qty 20+

0

46

Exmark 126-9261

Sensor-Atm

$223.99

$

Usually ships in 3-6 days

0

47

Exmark 135-3998

Harness-Wire, Jumper

$34.99

$

Usually ships in 3-6 days

0

48

Exmark 99-5132

Bolt
(Superseded to 139-9940)

$2.49

$

In Stock, Qty 7

0
