LZS80TDYM604W0 - Exmark 60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 402082300 - 404314158) (2018) Generator Assembly Parts Diagram

60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

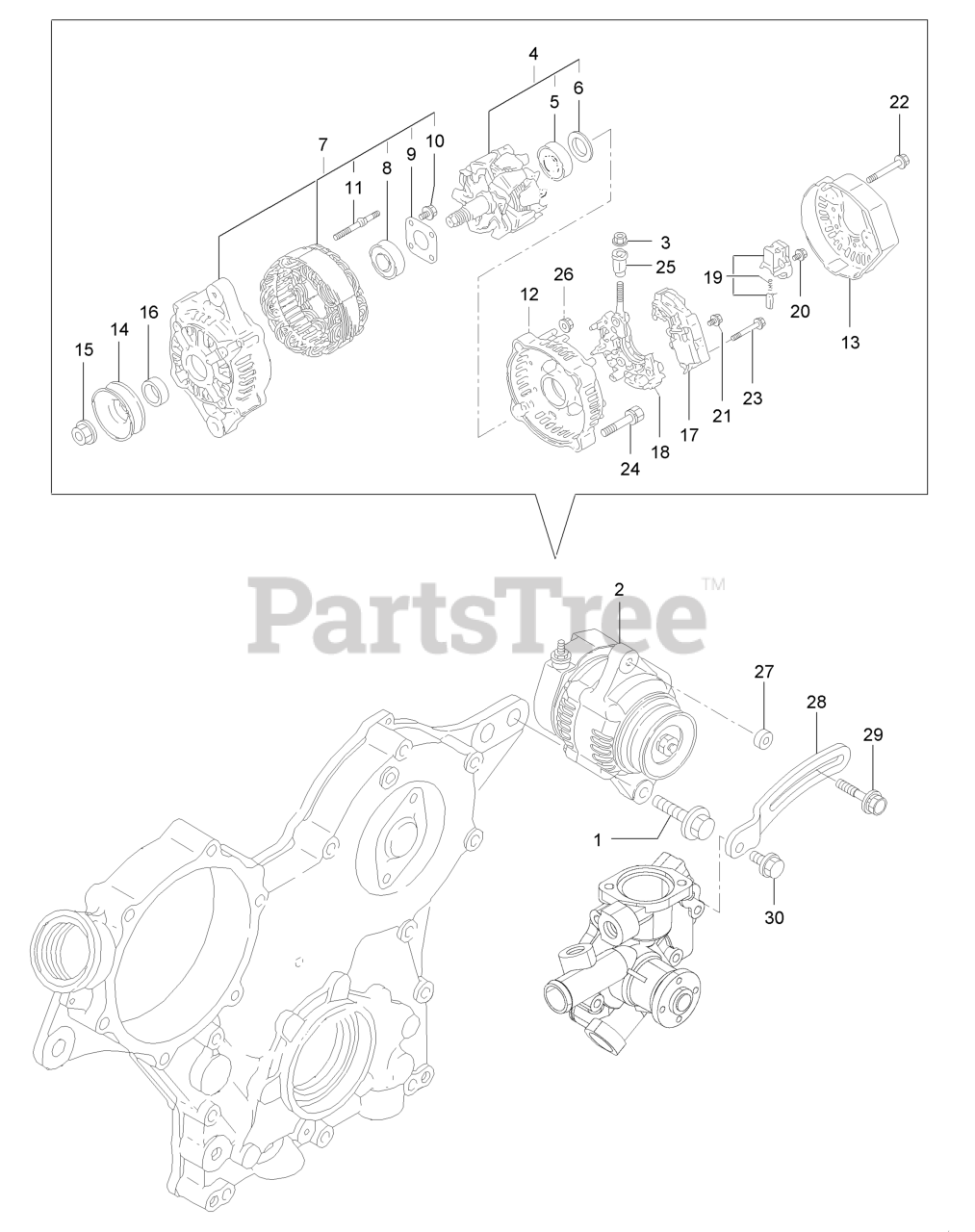

Generator Assembly Parts Diagram

  • Title

1

Exmark 135-4277

Bolt

$3.99

$

Usually ships in 3-6 days

0

2

Exmark 135-4278

Alternator

$1419.99

$

Usually ships in 3-6 days

0

3

Exmark 127-3190

Nut

$5.99

$

Usually ships in 3-6 days

0

4

Exmark 127-3843

Rotor ASM

$587.99

$

Usually ships in 3-6 days

0

5

Exmark 127-2983

Bearing-Ball

$31.99

$

Usually ships in 3-6 days

0

6

Exmark 127-2962

Cover

$

$

Currently unavailable

7

Exmark 135-4025

Frame ASM

$993.99

$

Usually ships in 3-6 days

0

8

Exmark 127-2958

Bearing-Ball

$34.99

$

Usually ships in 3-6 days

0

9

Exmark 127-2959

Plate-Retainer

$

$

Currently unavailable

10

Exmark 127-2960

Screw

$

$

Currently unavailable

11

Exmark 127-2961

Stud

$

$

Currently unavailable

12

Exmark 127-3845

Frame

$

$

Currently unavailable

13

Exmark 127-3846

Cover

$

$

Currently unavailable

14

Exmark 127-2954

Pulley

$81.99

$

Usually ships in 3-6 days

0

15

Exmark 127-2955

Nut

$7.49

$

Usually ships in 3-6 days

0

16

Exmark 127-2957

Collar

$19.99

$

Usually ships in 3-6 days

0

17

Exmark 135-4026

Regulator ASM
(Superseded to 135-4278)

$1419.99

$

Usually ships in 3-6 days

0

18

Exmark 127-3848

Holder

$342.99

$

Usually ships in 3-6 days

0

19

Exmark 127-2993

Holder

$114.99

$

Usually ships in 3-6 days

0

20

Exmark 127-2965

Screw

$

$

Currently unavailable

21

Exmark 127-2966

Screw

$

$

Currently unavailable

22

Exmark 127-2967

Bolt

$11.99

$

Usually ships in 3-6 days

0

23

Exmark 127-2968

Screw

$5.99

$

Usually ships in 3-6 days

0

24

Exmark 127-2969

Bolt

$

$

Currently unavailable

25

Exmark 127-2970

Bushing-Insulation

$

$

Currently unavailable

26

Exmark 127-2971

Nut

$

$

Currently unavailable

27

Exmark 125-6947

Spacer

$25.99

$

Usually ships in 3-6 days

0

28

Exmark 135-4279

Adjuster-Belt

$121.99

$

Usually ships in 3-6 days

0

29

Exmark 125-7134

Bolt

$30.99

$

Usually ships in 3-6 days

0

30

Exmark 125-7595

Bolt

$2.99

$

Usually ships in 3-6 days

0
