LZS80TDYM604W0 - Exmark 60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 404314159 - 406294344) (2019) Seat Assembly Parts Diagram

60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

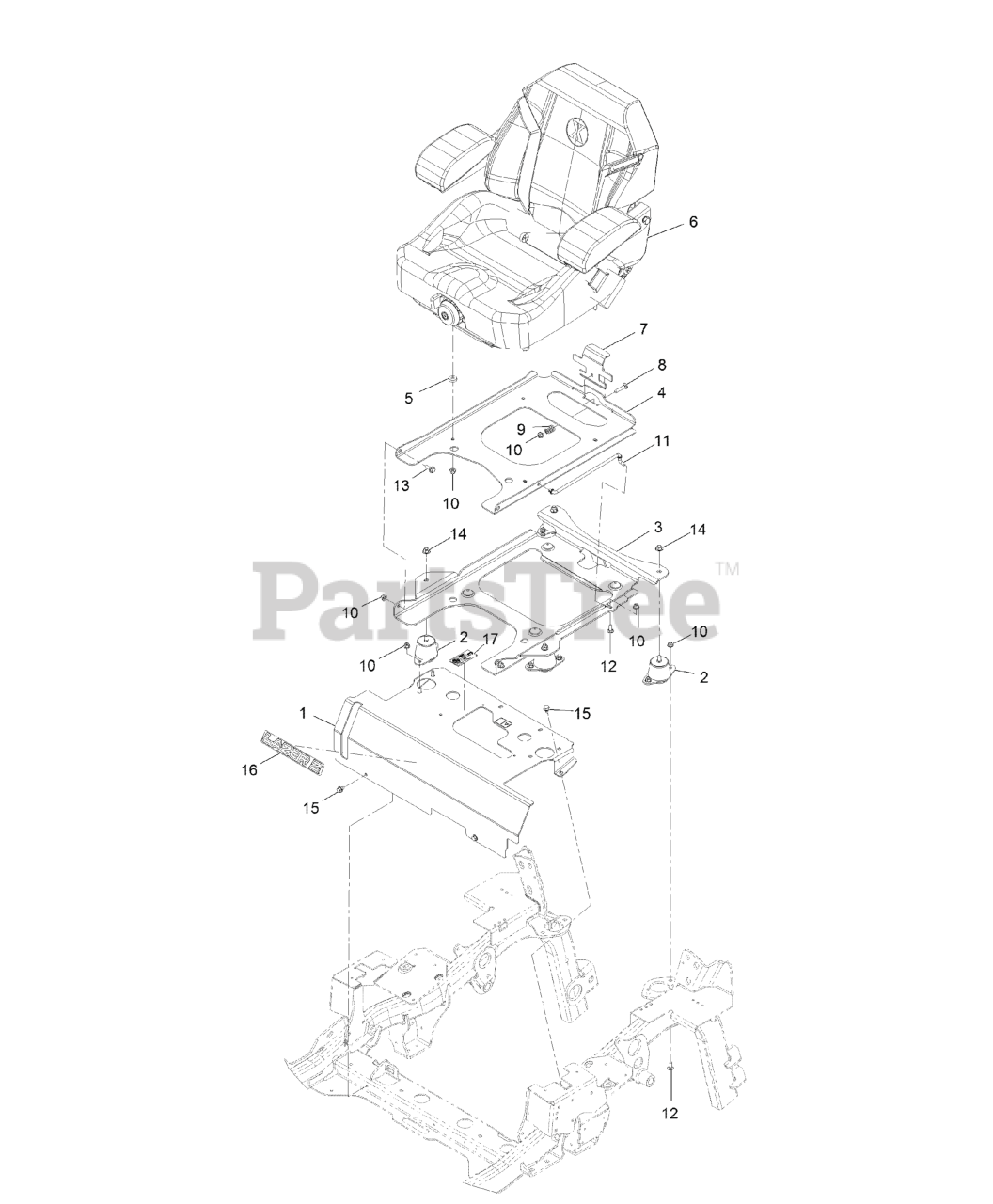

Seat Assembly Parts Diagram

  • Title

1

Exmark 126-7286

SEAT MOUNT ASM

$197.99

$

Usually ships in 3-6 days

0

2

Exmark 109-9034

ISOLATOR-SEAT

$77.99

$

In Stock, only 2 left!

0

3

Exmark 126-2701-03

PLATE-SUPPORT, TILT SEAT

$216.99

$

Usually ships in 3-6 days

0

4

Exmark 126-2700-03

PLATE-FRAME, SEAT

$120.99

$

Usually ships in 3-6 days

0

5

Exmark 26-4840

5-0652
(Superseded to 5-0652)

$8.49

$

In Stock, only 2 left!

0

6

Exmark 116-8912

KIT-SUSPENSION SEAT

$1794.99

$

In Stock, only 3 left!

0

7

Exmark 126-1855

PLATE, SEAT LATCH

$20.99

$

Usually ships in 3-6 days

0

8

Exmark 3230-4

BOLT-CARR

$4.49

$

In Stock, Qty 20+

0

9

Exmark 107-3017

SPRING-COMPRESSION

$3.49

$

Usually ships in 3-6 days

0

10

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Exmark 116-0070

ROD-PROP

$25.99

$

Usually ships in 3-6 days

0

12

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

13

Exmark 116-1297

SCREW-SHOULDER

$5.99

$

Usually ships in 3-6 days

0

14

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Exmark 9266934

SCREW

$10.99

$

In Stock, only 2 left!

0

16

Exmark 126-6574

DECAL, LAZER MODEL

$6.99

$

In Stock, Qty 14

0

17

Exmark 135-2838

DECAL-TRANS FLUID

$8.99

$

Usually ships in 3-6 days

0
