LZS80TDYM724W0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 402082300 - 404314158) (2018) Hood and Console Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

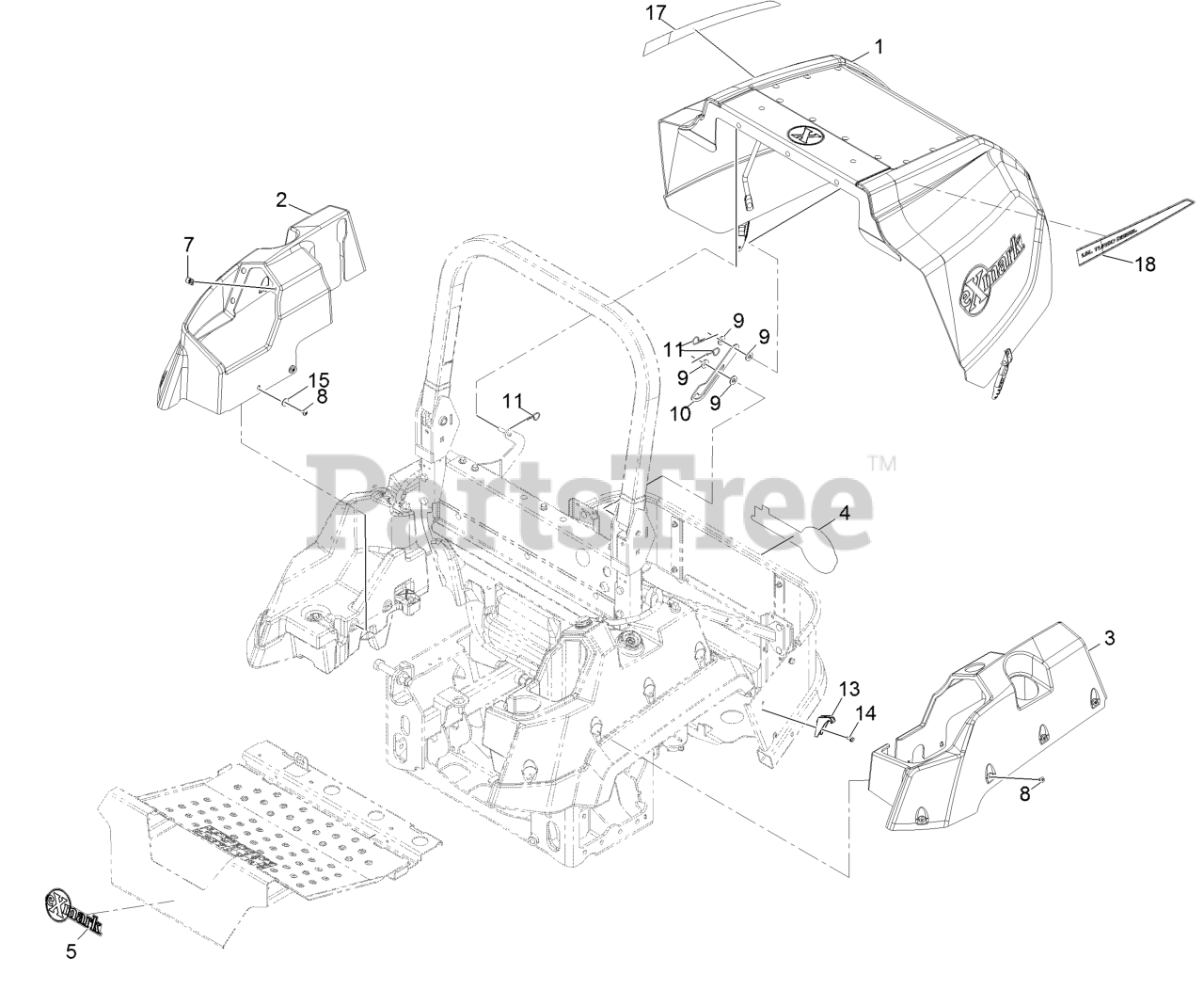

Hood and Console Assembly Parts Diagram

  • Title

1

Hood ASM

$

$

Not available

2

Exmark 126-6787

Cover-Tank, RH

$468.99

$

Usually ships in 3-6 days

0

3

Exmark 126-6790

Cover-Tank, LH

$468.99

$

Usually ships in 3-6 days

0

4

Exmark 126-6992

Decal-Exmark

$20.99

$

In Stock, only 3 left!

0

5

Exmark 135-2274

Decal-Exmark

$28.99

$

In Stock, only 2 left!

0

7

Exmark 107069

Clip

$2.99

$

In Stock, Qty 20+

0

8

Exmark 126-8216

Screw-Torx

$2.99

$

Usually ships in 3-6 days

0

9

Exmark 3256-4

Washer-Flat

$1.99

$

In Stock, Qty 20+

0

10

Exmark 120-9129

Prop-Hood

$19.99

$

In Stock, only 1 left!

0

11

Exmark 3290-255

Pin-Cotter, Hair

$10.99

$

In Stock, only 1 left!

0

13

Exmark 126-8672

Latch-Catch

$5.99

$

Usually ships in 3-6 days

0

14

Exmark 32144-10

Screw-HWH

$5.49

$

In Stock, Qty 16

0

15

Exmark 3256-71

Washer-Flat

$1.99

$

In Stock, Qty 5

0

17

Exmark 135-3173

Decal-Turbo Diesel-RH

$27.99

$

Usually ships in 3-6 days

0

18

Exmark 135-3174

Decal-Turbo Diesel-LH

$27.99

$

Usually ships in 3-6 days

0
