LZS80TDYM72RW0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT (SN: 408644346 - 411294211) (Rev B) (2021) Deck Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV80FT

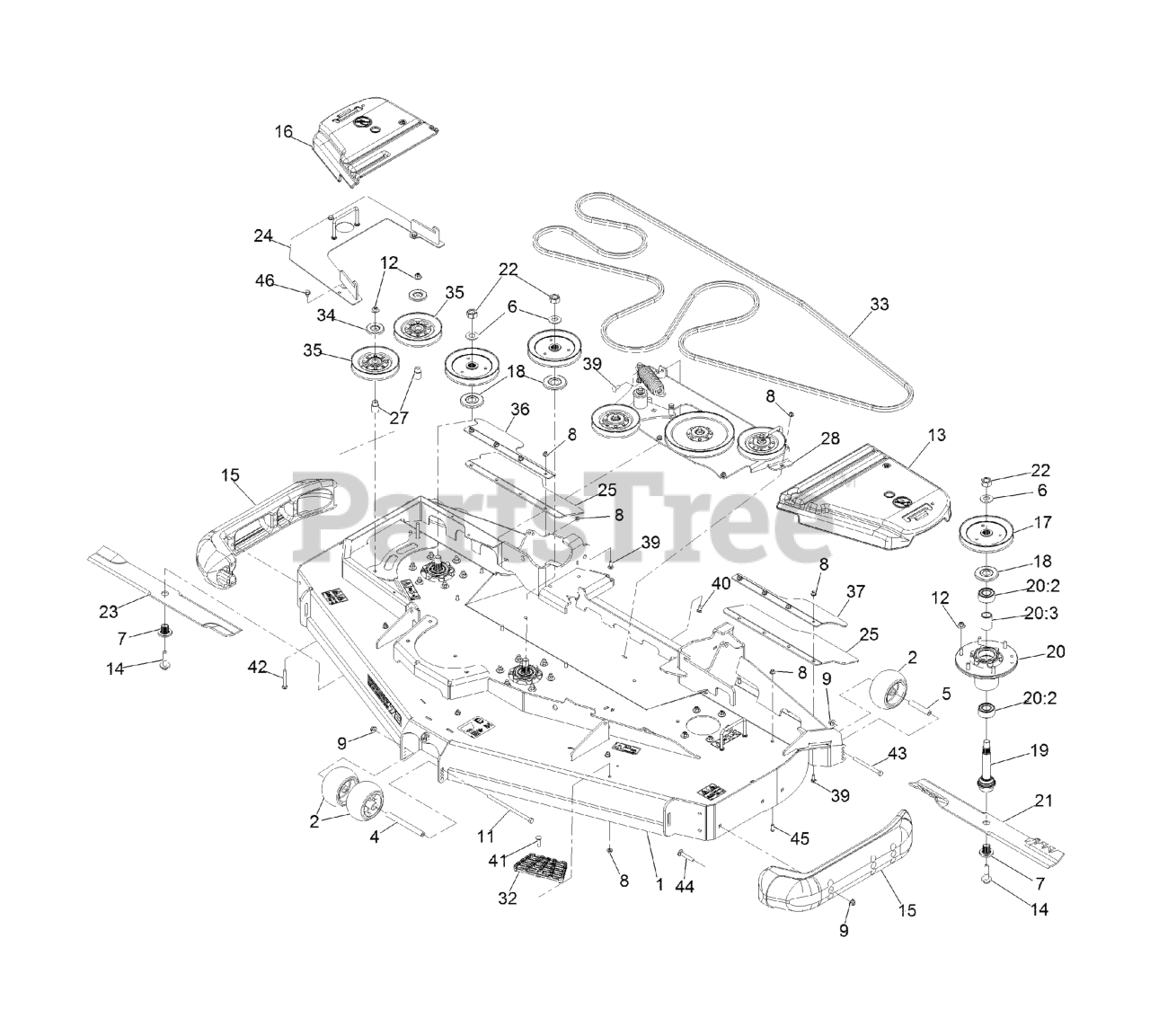

Deck Assembly Parts Diagram

  • Title

1

Exmark 126-1939

DECK-RD72 W/DECALS

$4090.99

$

Usually ships in 3-6 days

0

2

Exmark 1-603299

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 20+

0

4

Exmark 98-5967

SPACER-WHEEL

$17.99

$

In Stock, Qty 20+

0

5

Exmark 98-7912

TUBE-SPANNER

$15.99

$

In Stock, Qty 20+

0

6

Exmark 103-2802

WASHER

$5.99

$

In Stock, Qty 20+

0

7

Exmark 103-3037

BUSHING,SPLINED

$25.99

$

In Stock, Qty 20+

0

8

Exmark 104-8300

NUT-HF, NI

$1.49

$

Usually ships in 3-6 days

0

9

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Exmark 108-5388

SCREW-HH

$17.99

$

In Stock, Qty 20+

0

12

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

Usually ships in 3-6 days

0

13

Exmark 109-6938

COVER-BELT, LH

$109.99

$

In Stock, Qty 20+

0

14

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.99

$

In Stock, Qty 20+

0

15

Exmark 112-1479

SKID-BUMPER, DECK

$114.99

$

Usually ships in 3-6 days

0

16

Exmark 116-0094

COVER-BELT, RH

$96.99

$

In Stock, Qty 20+

0

17

Exmark 116-0675

SHEAVE,BLADE DRIVE 6.50

$112.99

$

In Stock, Qty 11

0

18

Exmark 103-1330

GUARD-BEARING, TOP

$5.99

$

In Stock, Qty 20+

0

19

Exmark 116-3341

ASM-SPINDLE AND SEAL

$98.99

$

In Stock, Qty 20+

0

20

Exmark 135-3437

ASM-CUTTER HSG

$201.99

$

In Stock, Qty 13

0

20:2

Exmark 135-3144

BEARING-3205 TRASHGUARD
(Superseded to 134-6634)

$35.99

$

Usually ships in 3-6 days

0

20:3

Exmark 135-3440

SPACER-BEARING

$9.49

$

In Stock, only 2 left!

0

21

Exmark 116-5171

USE 116-5171-S
(Superseded to 116-5171-S)

$47.99

$

In Stock, Qty 20+

0

21

Exmark 103-6404

USE 103-6404-S
(Superseded to 103-6404-S)

$47.99

$

In Stock, Qty 20+

0

21

Exmark 103-6389

USE 103-6389-S
(Superseded to 103-6389-S)

$42.99

$

In Stock, Qty 20+

0

22

Exmark 116-7306

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

23

Exmark 116-8502

USE 116-8502-S
(Superseded to 116-8502-S)

$42.99

$

In Stock, only 4 left!

0

23

Exmark 116-8503

USE 116-8503-S
(Superseded to 116-8503-S)

$45.99

$

In Stock, Qty 20+

0

24

Exmark 125-9374-01

COVER-REVERSE DRIVE

$168.99

$

Usually ships in 3-6 days

0

25

Exmark 135-0709

GUARD-TIRE

$31.99

$

Usually ships in 3-6 days

0

27

Exmark 126-3312

STANDOFF-IDLER

$18.99

$

Usually ships in 3-6 days

0

28

Idler Mount ASM

Note: Not serviced separately

$

$

Not available

32

Exmark 126-4781-03

STEP-DECK

$32.99

$

In Stock, only 1 left!

0

33

Exmark 126-7628

BELT-BB

$281.99

$

Usually ships in 3-6 days

0

34

Exmark 126-8043

SHIELD-DUST

$3.49

$

In Stock, Qty 20+

0

35

Exmark 126-8766

IDLER V

$111.99

$

In Stock, only 2 left!

0

36

Exmark 135-0402-01

SUPPORT-FLAP, OUTER (RH)

$54.99

$

Usually ships in 3-6 days

0

37

Exmark 135-0403-01

SUPPORT-FLAP, OUTER (LH)

$54.99

$

Usually ships in 3-6 days

0

39

Exmark 3230-16

SCREW-CARR

$2.99

$

Usually ships in 3-6 days

0

40

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

41

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0

42

Exmark 3231-31

SCREW-CARR

$7.99

$

In Stock, Qty 20+

0

43

Exmark 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

44

Exmark 3231-7

Bolt-Carriage 3/8-16 X 2 1/4

$7.99

$

In Stock, Qty 20+

0

45

Exmark 3274-55

SCREW-HSBH

$5.99

$

In Stock, Qty 6

0

46

Exmark 9266934

SCREW

$10.99

$

In Stock, only 2 left!

0
