LZS88CDYM604W0 - Exmark 60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 402082300 - 404314158) (2018) Crankshaft and Piston Assembly Parts Diagram

60" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

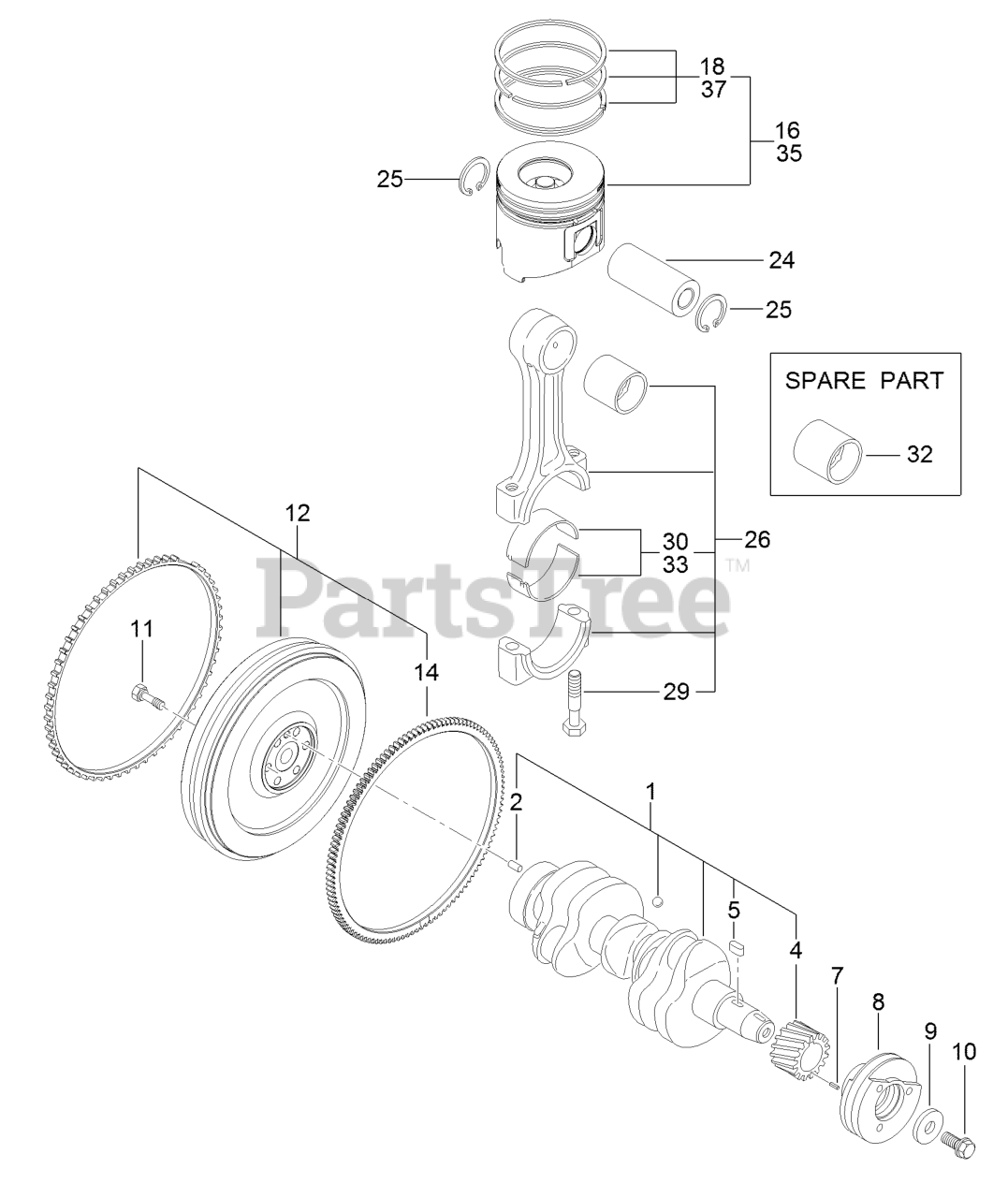

Crankshaft and Piston Assembly Parts Diagram

  • Title

1

Exmark 127-3800

Crankshaft ASM

$2583.99

$

Usually ships in 3-6 days

0

2

Exmark 125-6995

Pin

$6.49

$

Usually ships in 3-6 days

0

4

Exmark 125-6937

Gear

$241.99

$

Usually ships in 3-6 days

0

5

Exmark 125-7185

Key

$2.99

$

Usually ships in 3-6 days

0

7

Exmark 125-7182

Pin-Spring

$4.49

$

Usually ships in 3-6 days

0

8

Exmark 127-3801

Pulley-V

$386.99

$

Usually ships in 3-6 days

0

9

Exmark 125-7109

Washer

$23.99

$

Usually ships in 3-6 days

0

10

Exmark 125-6956

Bolt

$47.99

$

Usually ships in 3-6 days

0

11

Exmark 125-6951

Bolt

$7.99

$

Usually ships in 3-6 days

0

12

Exmark 127-4761

Flywheel ASM

$2212.99

$

Usually ships in 3-6 days

0

14

Exmark 127-4703

Gear

$248.99

$

Usually ships in 3-6 days

0

16

Exmark 127-4766

Piston ASM

$582.99

$

Usually ships in 3-6 days

0

18

Exmark 127-4751

Piston Ring ASM

$137.99

$

Usually ships in 3-6 days

0

24

Exmark 125-7030

Pin

$50.99

$

Usually ships in 3-6 days

0

25

Exmark 125-7180

Ring

$2.99

$

Usually ships in 3-6 days

0

26

Exmark 125-7242

Connecting Rod ASM

$667.99

$

Usually ships in 3-6 days

0

29

Exmark 125-6955

Bolt

$24.99

$

Usually ships in 3-6 days

0

30

Exmark 125-7018

Pin-Crank

$24.99

$

Usually ships in 3-6 days

0

32

Exmark 125-6997

Pin-Piston

$25.99

$

Usually ships in 3-6 days

0

33

Exmark 125-7019

Pin-Crank (.25)

$24.99

$

Usually ships in 3-6 days

0

35

Exmark 127-4767

Piston ASM (0.25 O S)

$708.99

$

Usually ships in 3-6 days

0

37

Exmark 127-4752

Ring Set (0.25 O S)

$104.99

$

Usually ships in 3-6 days

0
