LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 402082300 - 404314158) (2018) Exhaust Manifold Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

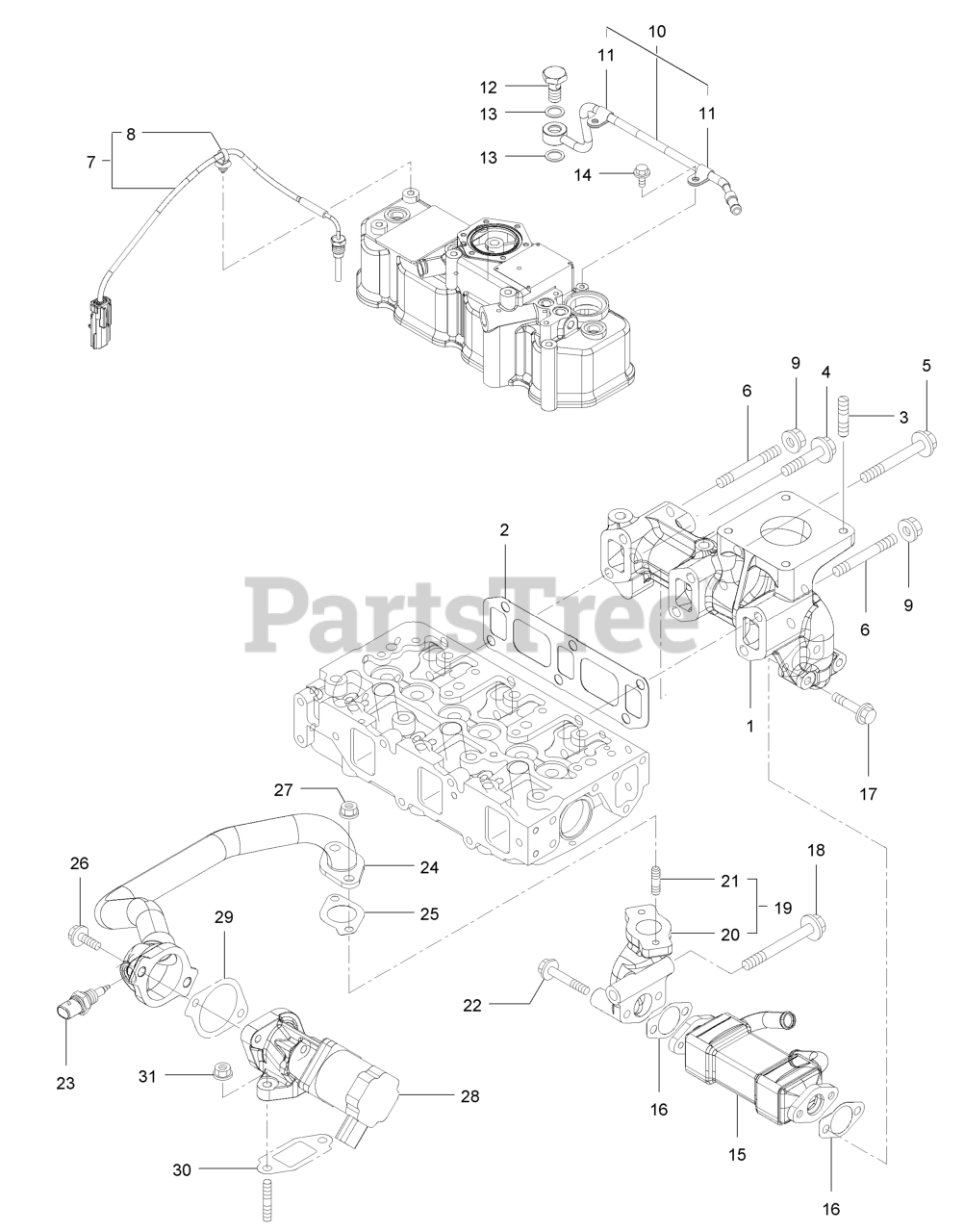

Exhaust Manifold Assembly Parts Diagram

  • Title

1

Exmark 127-4726

Manifold-Exhaust

$241.99

$

Usually ships in 3-6 days

0

2

Exmark 127-3775

Gasket-Manifold, Exhaust

$12.99

$

Usually ships in 3-6 days

0

3

Exmark 127-2984

Stud

$28.99

$

Usually ships in 3-6 days

0

4

Exmark 135-4013

Bolt

$20.99

$

Usually ships in 3-6 days

0

5

Exmark 135-4014

Bolt

$28.99

$

Usually ships in 3-6 days

0

6

Exmark 127-4756

Stud

$8.99

$

Usually ships in 3-6 days

0

7

Exmark 127-4729

Sensor-Temp, Exhaust

$169.99

$

Usually ships in 3-6 days

0

8

Exmark 127-3087

Band-Clip

$2.99

$

Usually ships in 3-6 days

0

9

Exmark 125-7230

Nut

$3.49

$

Usually ships in 3-6 days

0

10

Exmark 127-3038

Exhaust Pipe ASM

$191.99

$

Usually ships in 3-6 days

0

11

Exmark 127-3173

Clamp

$21.99

$

Usually ships in 3-6 days

0

12

Exmark 127-3039

Bolt-Joint, Pipe

$156.99

$

Usually ships in 3-6 days

0

13

Exmark 127-3174

Gasket

$1.99

$

Usually ships in 3-6 days

0

14

Exmark 125-7206

Bolt

$2.49

$

Usually ships in 3-6 days

0

15

Exmark 127-3042

Cooler-E G R

$972.99

$

Usually ships in 3-6 days

0

16

Exmark 127-3043

Gasket-Cooler, E G R

$4.49

$

Usually ships in 3-6 days

0

17

Exmark 135-4015

Bolt

$7.99

$

Usually ships in 3-6 days

0

18

Exmark 135-4016

Bolt

$30.99

$

Usually ships in 3-6 days

0

19

Exmark 127-3048

E G R Pipe ASM

$173.99

$

Usually ships in 3-6 days

0

20

Exmark 127-3049

Pipe-Out, E G R

$

$

Currently unavailable

21

Exmark 125-7043

Stud

$33.99

$

Usually ships in 3-6 days

0

22

Exmark 125-7220

Bolt

$5.99

$

Usually ships in 3-6 days

0

23

Exmark 137-5168

Sensor-Gas Temp, E G R

$271.99

$

Usually ships in 3-6 days

0

24

Exmark 127-3780

E G R Pipe ASM

$475.99

$

Usually ships in 3-6 days

0

25

Exmark 127-3016

Gasket

$4.99

$

Usually ships in 3-6 days

0

26

Exmark 125-7215

Bolt

$4.49

$

Usually ships in 3-6 days

0

27

Exmark 125-7229

Nut

$19.99

$

Usually ships in 3-6 days

0

28

Exmark 127-3781

Valve-E G R

$2732.99

$

Usually ships in 3-6 days

0

29

Exmark 127-3050

Gasket-Intake Valve, E G R

$5.99

$

Usually ships in 3-6 days

0

30

Exmark 127-3051

Gasket-Out Valve, E G R

$5.49

$

Usually ships in 3-6 days

0

31

Exmark 125-7229

Nut

$19.99

$

Usually ships in 3-6 days

0
