LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 402082300 - 404314158) (2018) LH Deck Rear Caster Wheel and Fork Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

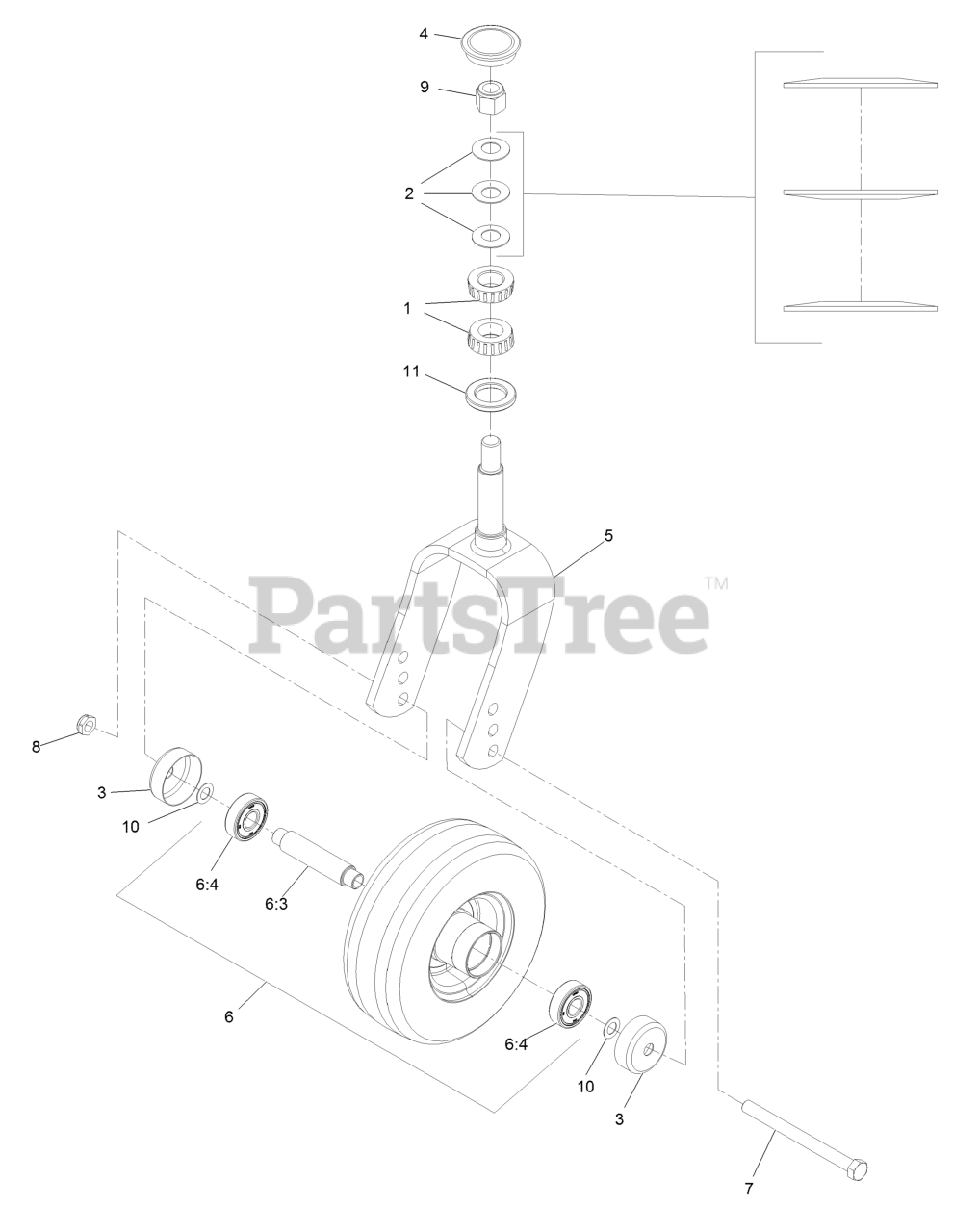

LH Deck Rear Caster Wheel and Fork Assembly Parts Diagram

  • Title

1

Exmark 1-543509

Cone-Bearing Tapered Roller

$15.99

$

In Stock, Qty 20+

0

2

Exmark 1-633508

Washer-Spring Disc

$3.99

$

In Stock, Qty 20+

0

3

Exmark 103-2768

Guard-Seal

$3.99

$

In Stock, Qty 20+

0

4

Exmark 103-4882

Cap-Grease

$8.99

$

In Stock, Qty 20+

0

5

Exmark 135-3793-01

Fork-Caster 9" [red]

$207.99

$

In Stock, only 2 left!

0

6

Exmark 135-2642

Wheel And Tire ASM

$105.99

$

Usually ships in 3-6 days

0

6:3

Exmark 126-7904

Axle-Caster

$27.99

$

In Stock, only 1 left!

0

6:4

Exmark 116-4004

Bearing

$22.99

$

In Stock, Qty 9

0

7

Exmark 325-20

Screw-HH 1/2-13 X 6

$8.49

$

In Stock, Qty 10

0

8

Exmark 3296-45

Nut-Nyloc 1/2-13 Thin

$4.49

$

In Stock, Qty 20+

0

9

Exmark 3296-51

Nut-Nyloc 3/4-10

$7.49

$

In Stock, Qty 20+

0

10

Exmark 36-4780

Washer

$8.99

$

In Stock, Qty 20+

0

11

Exmark 1-543511

Seal-Grease

$12.99

$

In Stock, Qty 14

0
