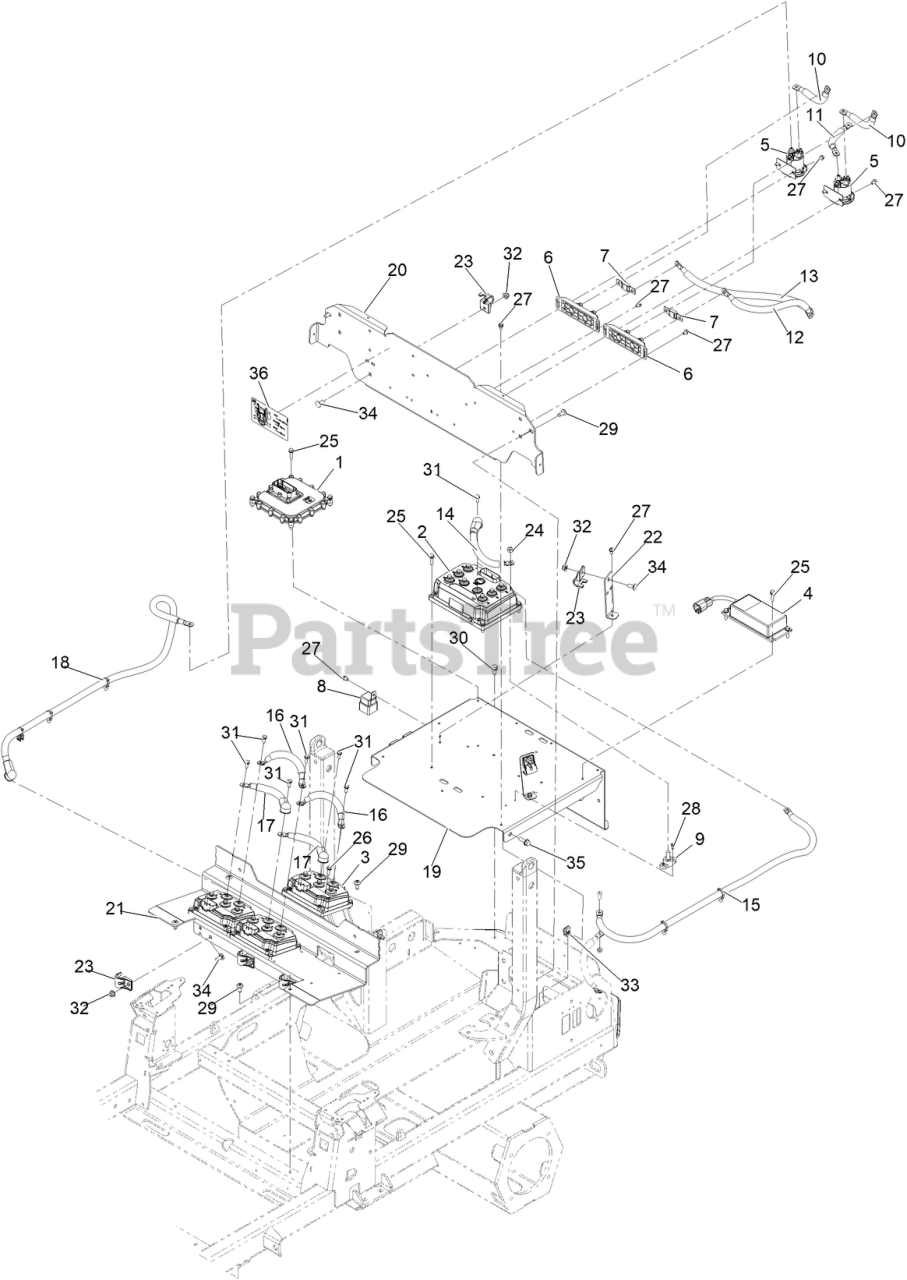

LZV060B2360A00 - Exmark 60" Lazer Z V-Series Zero-Turn Mower, Electric (SN: 416150475 - 417930745) (Rev A) (2024) Electrical Components Assembly Parts Diagram

60" Lazer Z V-Series Zero-Turn Mower, Electric

Electrical Components Assembly Parts Diagram

  • Title

1

Exmark 127-2770

CONTROLLER

$1790.99

$

Usually ships in 3-6 days

0

2

Exmark 138-8984

INV/CTRLR-48V,DUAL 94ARMS

$2534.99

$

Usually ships in 3-6 days

0

3

Exmark 145-7270

INV/CTRLR-48V

$1754.99

$

Usually ships in 3-6 days

0

4

Exmark 144-6975

CONVERTER DC-DC

$488.99

$

Usually ships in 3-6 days

0

5

Exmark 145-3542

CONTACTOR-DC, 12V

$96.99

$

Usually ships in 3-6 days

0

6

Exmark 145-4958

HOLDER-FUSE

$31.99

$

Usually ships in 3-6 days

0

7

Exmark 122-2561

FUSE-200A

$20.99

$

Usually ships in 3-6 days

0

8

Exmark 70-1480

RELAY

$123.99

$

Usually ships in 3-6 days

0

9

Exmark 110-8823

BLOCK-JUNCTION

$52.99

$

Usually ships in 3-6 days

0

10

Exmark 147-4563

CABLE-BATTERY, RD ASM

$30.99

$

Usually ships in 3-6 days

0

11

Exmark 147-4564

CABLE-BATTERY, RD ASM

$25.99

$

Usually ships in 3-6 days

0

12

Exmark 147-4561

CABLE-BATTERY, RD ASM

$54.99

$

Usually ships in 3-6 days

0

13

Exmark 147-4562

CABLE-BATTERY, RD ASM

$63.99

$

Usually ships in 3-6 days

0

14

Exmark 147-4568

CABLE-BATTERY, BK ASM

$34.99

$

Usually ships in 3-6 days

0

15

Exmark 147-4567

CABLE-BATTERY, BK ASM

$93.99

$

Usually ships in 3-6 days

0

16

Exmark 147-0239

CABLE-BATTERY, BK ASM

$90.99

$

Usually ships in 3-6 days

0

17

Exmark 147-0238

CABLE-BATTERY, RD ASM

$70.99

$

Usually ships in 3-6 days

0

18

Exmark 147-4565

CABLE-BATTERY, RD ASM

$104.99

$

Usually ships in 3-6 days

0

19

Exmark 146-2429-01

Bracket-Chassis

$148.99

$

Usually ships in 3-6 days

0

20

Exmark 146-1802-01

Plate-Firewall

$118.99

$

Usually ships in 3-6 days

0

21

Exmark 147-1611-03

PLATE-CONTROLLER, DECK

$132.99

$

Usually ships in 3-6 days

0

22

Exmark 147-1610-03

BRACKET-CABLE

$14.99

$

Usually ships in 3-6 days

0

23

Exmark 145-6985

MOUNT-CABLE

$7.99

$

Usually ships in 3-6 days

0

24

Exmark 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 15

0

25

Exmark 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

26

Exmark 32144-44

SCREW-HWH, THREAD ROLL

$1.99

$

In Stock, Qty 5

0

27

Exmark 99-8445

SCREW-HWH
(Superseded to 137-4795)

$1.49

$

In Stock, Qty 20+

0

28

Exmark 105-6849

SCREW-FORMING, THREAD

$1.49

$

In Stock, Qty 20+

0

29

Exmark 138-9753

SCREW

$1.49

$

In Stock, Qty 20+

0

30

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

31

Exmark 145-5782

SCREW-SEMS

$1.49

$

Usually ships in 3-6 days

0

32

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

33

Exmark 115-7721

NUT-CLIP, U

$2.49

$

Usually ships in 3-6 days

0

34

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

35

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0

36

Exmark 146-3523

DECAL-SERVICE AID

$16.99

$

Usually ships in 3-6 days

0
