LZX29KA606SS - Exmark 60" Lazer Z X-Series Zero-Turn Mower, 29hp Kawasaki (SN: 000920000 - 000999999) (2011) Seat Assembly Parts Diagram

60" Lazer Z X-Series Zero-Turn Mower, 29hp Kawasaki

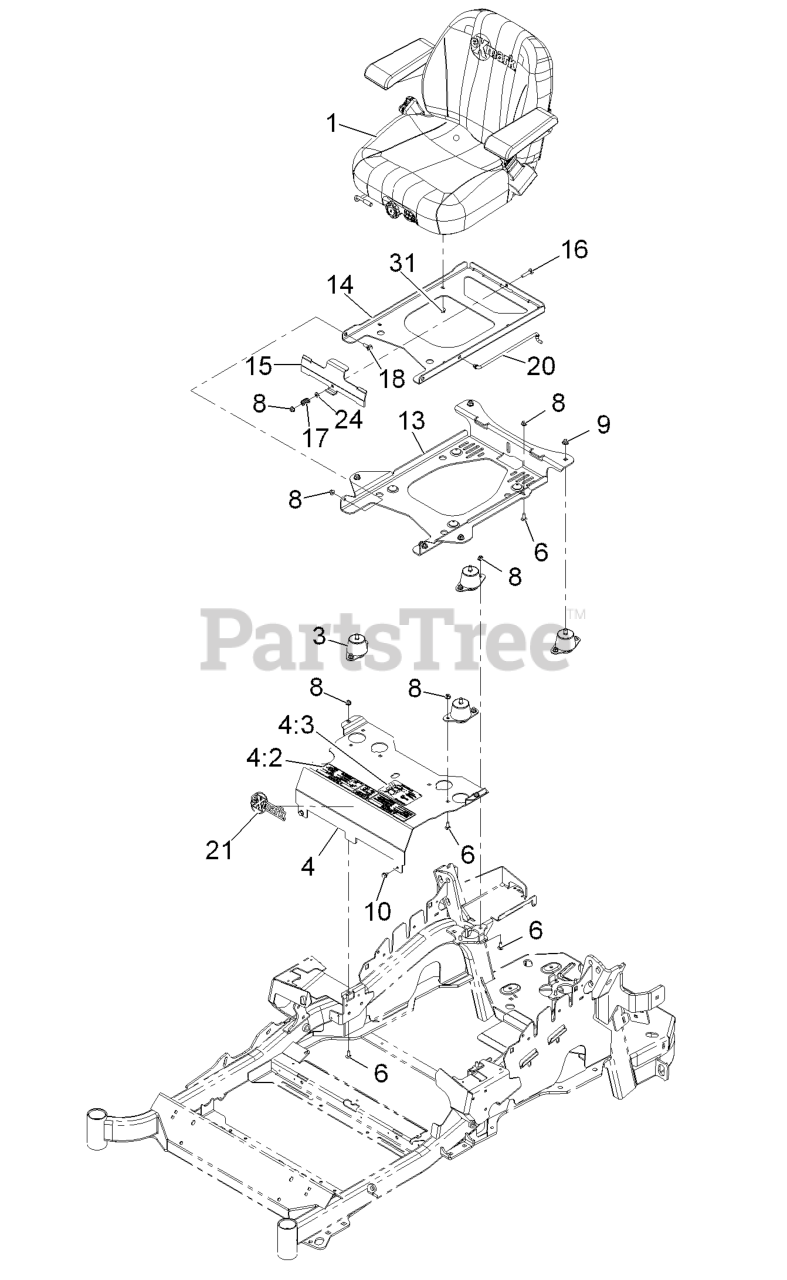

Seat Assembly Parts Diagram

  • Title

1

Exmark 116-4678

126-2802
(Superseded to 126-2802)

$1618.99

$

Usually ships in 3-6 days

0

3

Exmark 109-9034

ISOLATOR-SEAT

$77.99

$

In Stock, only 2 left!

0

4

Exmark 116-2323

MOUNT-SEAT

$300.99

$

Usually ships in 3-6 days

0

4:2

Exmark 109-7069

DECAL-CONSOLE

$18.99

$

Usually ships in 3-6 days

0

4:3

Exmark 116-0211

DECAL-SERVICE AID

$

$

Not available

6

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

8

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Exmark 9266934

SCREW

$10.99

$

In Stock, only 2 left!

0

13

Exmark 116-0181-03

PLATE-SUPPORT, SEAT TILT

$

$

Not available

14

Exmark 116-0179-03

PLATE-FRAME, SEAT TILT

$

$

Not available

15

Exmark 109-9881-03

PLATE-LATCH, SEAT

$22.99

$

Usually ships in 3-6 days

0

16

Exmark 3230-4

BOLT-CARR

$4.49

$

In Stock, Qty 20+

0

17

Exmark 107-3017

SPRING-COMPRESSION

$3.49

$

Usually ships in 3-6 days

0

18

Exmark 116-1297

SCREW-SHOULDER

$5.99

$

Usually ships in 3-6 days

0

20

Exmark 116-0070

ROD-PROP

$25.99

$

Usually ships in 3-6 days

0

21

Exmark 103-2883

DECAL

$10.99

$

In Stock, Qty 5

0

24

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

31

Exmark 32128-25

NUT-HF

$3.99

$

In Stock, Qty 5

0
