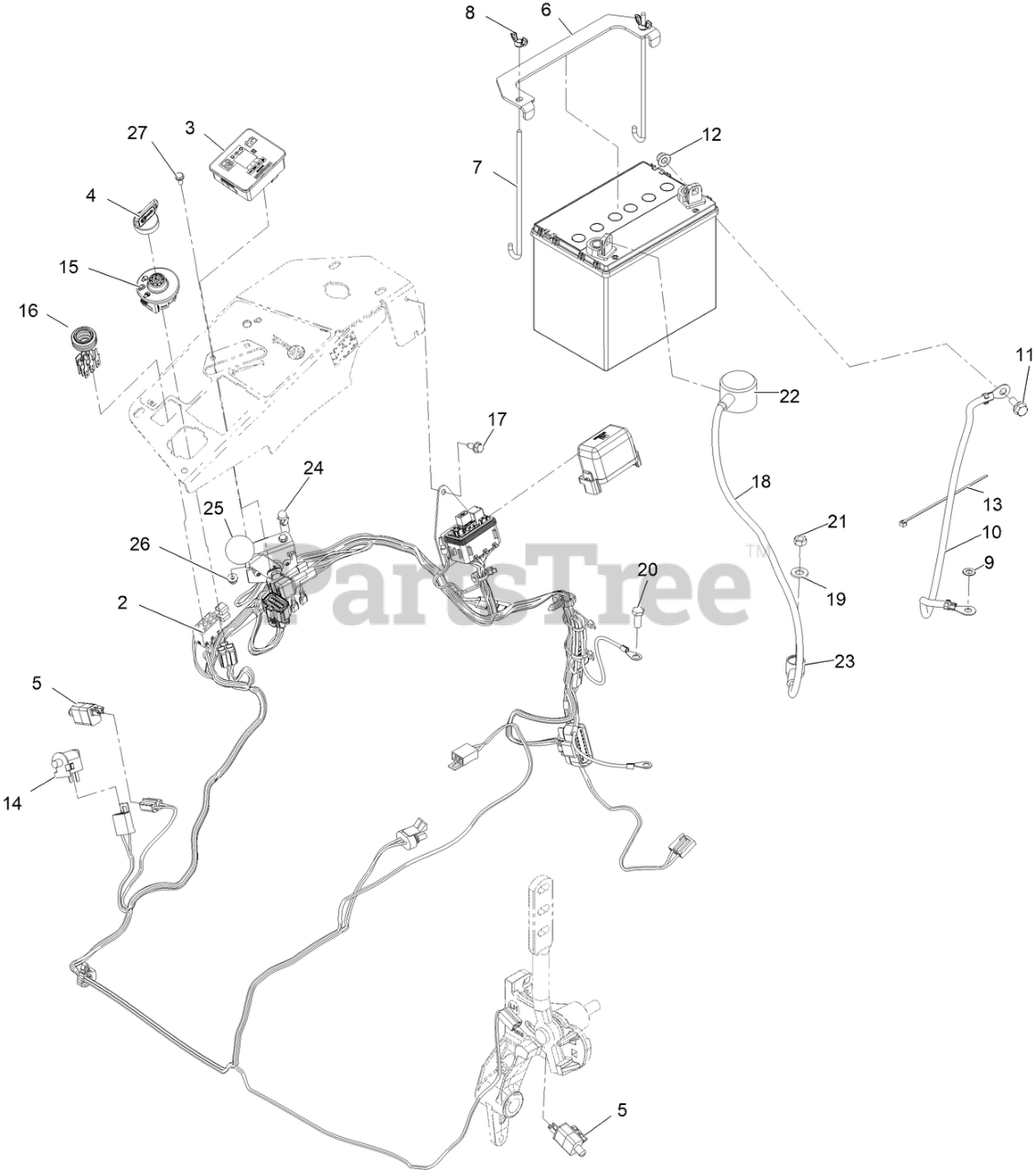

LZX820AKA606Q1 - Exmark 60" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX (SN: 416150475 - 417930745) (Rev A) (2024) Electrical Assembly Parts Diagram

60" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX

Electrical Assembly Parts Diagram

  • Title

2

Exmark 146-2456

HARNESS-MAIN

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$948.99

$

Usually ships in 3-6 days

0

3

Exmark 146-2550

FUEL-HOUR METER ASM

$195.99

$

Usually ships in 3-6 days

0

4

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.99

$

In Stock, Qty 16

0

4

Exmark 103-2106

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

5

Exmark 110-6765

SWITCH

$14.99

$

In Stock, Qty 20+

0

6

Exmark 116-0042-03

STRAP-TIE DOWN, BATTERY

$26.99

$

In Stock, only 3 left!

0

7

Exmark 1-633651

BOLT-HOLDDOWN

$8.99

$

In Stock, Qty 20+

0

8

Exmark 1-543792

WINGNUT

$6.99

$

In Stock, Qty 20+

0

9

Exmark 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

10

Exmark 114-1218

CABLE-BATTERY, NEGATIVE

$26.99

$

In Stock, only 2 left!

0

11

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

12

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

14

Exmark 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 20+

0

15

Exmark 137-4100

SWITCH-IGNITION

$30.99

$

In Stock, Qty 20+

0

16

Exmark 135-3653

SWITCH, PTO 10A

$75.99

$

In Stock, Qty 20+

0

17

Exmark 32144-10

SCREW-HWH

$5.49

$

In Stock, Qty 16

0

18

Exmark 115-3864

CABLE-BATTERY, POSITIVE

$34.99

$

In Stock, only 1 left!

0

19

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Exmark 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 10

0

21

Exmark 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

22

Exmark 109-2407

INSULATOR-BATTERY

$5.99

$

In Stock, only 1 left!

0

23

Exmark 1-543393

INSULATOR-SOLENOID

$5.99

$

Usually ships in 3-6 days

0

24

Exmark 1-643267

INDICATOR-LED, RED

$27.99

$

In Stock, only 2 left!

0

25

Exmark 146-1950

THROTTLE CONTROLLER-ETC

$119.99

$

Usually ships in 3-6 days

0

26

Exmark 120-4578

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

27

Exmark 3290-321

SCREW-HWH

$4.99

$

Usually ships in 3-6 days
