LZX921GKA726C1 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX (SN: 402082300 - 404314158) (2018) Engine Assembly Parts Diagram

72" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX

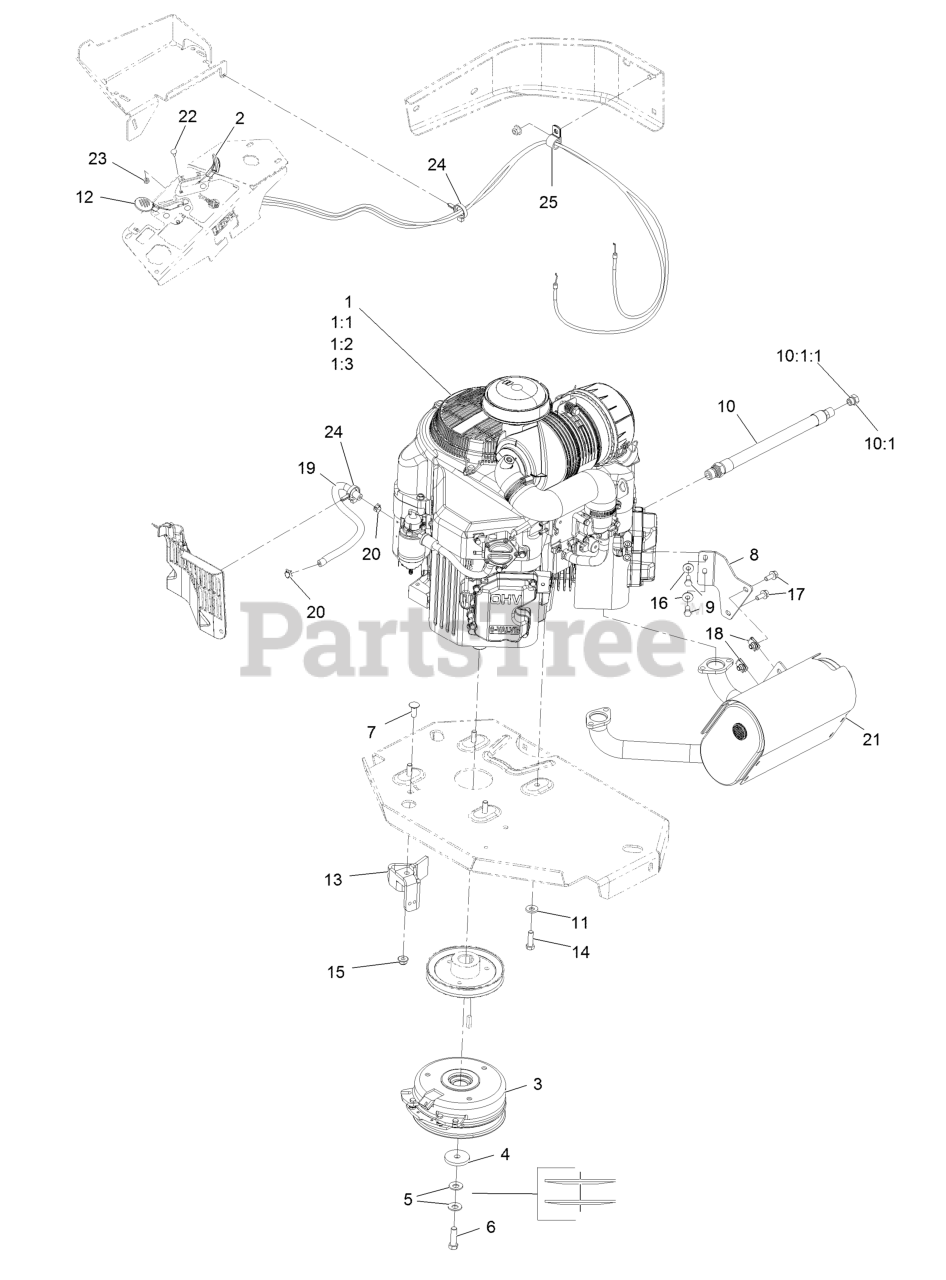

Engine Assembly Parts Diagram

  • Title

1

Engine-Kawasaki,Fx921V-S04-R

$

$

Not available

1:1

Kawasaki 49065-7007 Engine Oil Filter

$

$

Not available

1:2

Kawasaki 11013-7044 Engine Air Filter

$

$

Not available

1:3

Kawasaki 11013-7045 Safety Filter

$

$

Not available

2

Exmark 126-8222

Control, Choke

$48.99

$

Usually ships in 3-6 days

0

3

Exmark 126-4185

Clutch Kit

$776.99

$

In Stock, only 1 left!

0

4

Exmark 109-6919

Washer-Clutch

$8.99

$

In Stock, Qty 6

0

5

Exmark 1-603610

Washer-Spring

$5.99

$

In Stock, Qty 20+

0

6

Exmark 109-9761

Screw-HH

$5.99

$

In Stock, Qty 11

0

7

Exmark 3231-22

Screw-CARR

$3.99

$

In Stock, Qty 20+

0

8

Exmark 116-1587

Bracket-Muffler

$36.99

$

Usually ships in 3-6 days

0

9

Exmark 33114-020

Screw-HH

$0.99

$

In Stock, Qty 10

0

10

Exmark 116-4924

Engine Oil Drain Hose ASM

$42.99

$

In Stock, Qty 6

0

10:1

Exmark 353-508

Plug-HH

$9.49

$

In Stock, only 1 left!

0

10:1:1

Exmark 237-42

O-Ring

$3.49

$

In Stock, Qty 14

0

11

Exmark 98-5975

Washer-Belleville

$3.99

$

In Stock, Qty 20+

0

12

Exmark 133-1814

ASM,Throttle Cable

$56.99

$

In Stock, Qty 7

0

13

Exmark 116-2612-01

Clutch-Anchor

$60.99

$

Usually ships in 3-6 days

0

14

Exmark 323-7

Screw-HH

$3.49

$

In Stock, Qty 20+

0

15

Exmark 104-8301

Nut-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Exmark 1-303334

Washer-Spring

$2.99

$

In Stock, Qty 20+

0

17

Exmark 3234-5

Screw-HHF

$1.49

$

In Stock, Qty 20+

0

18

Exmark 94-2413

Nut-U

$2.99

$

In Stock, Qty 11

0

19

Exmark 109-0296

Hose-Fuel

$11.99

$

In Stock, only 2 left!

0

20

Exmark 2412-98

Clamp-Hose

$1.99

$

In Stock, Qty 20+

0

21

Exmark 116-1707

Muffler

$542.99

$

Usually ships in 3-6 days

0

22

Exmark 1-807513

Bolt-CARR

$2.99

$

In Stock, Qty 20+

0

23

Exmark 3296-2

Nut-Lock, NI

$2.49

$

In Stock, Qty 20+

0

24

Exmark 105-1853

Clamp-Hose

$5.99

$

In Stock, only 2 left!

0

25

Exmark 1-633396

Clip-Loom

$5.99

$

Usually ships in 3-6 days

0
