LZX940EKC606W0 - Exmark 60" Lazer Z X-Series Zero-Turn Mower, Kohler ECV940 (SN: 404314159 - 406294344) (2019) Engine Assembly Parts Diagram

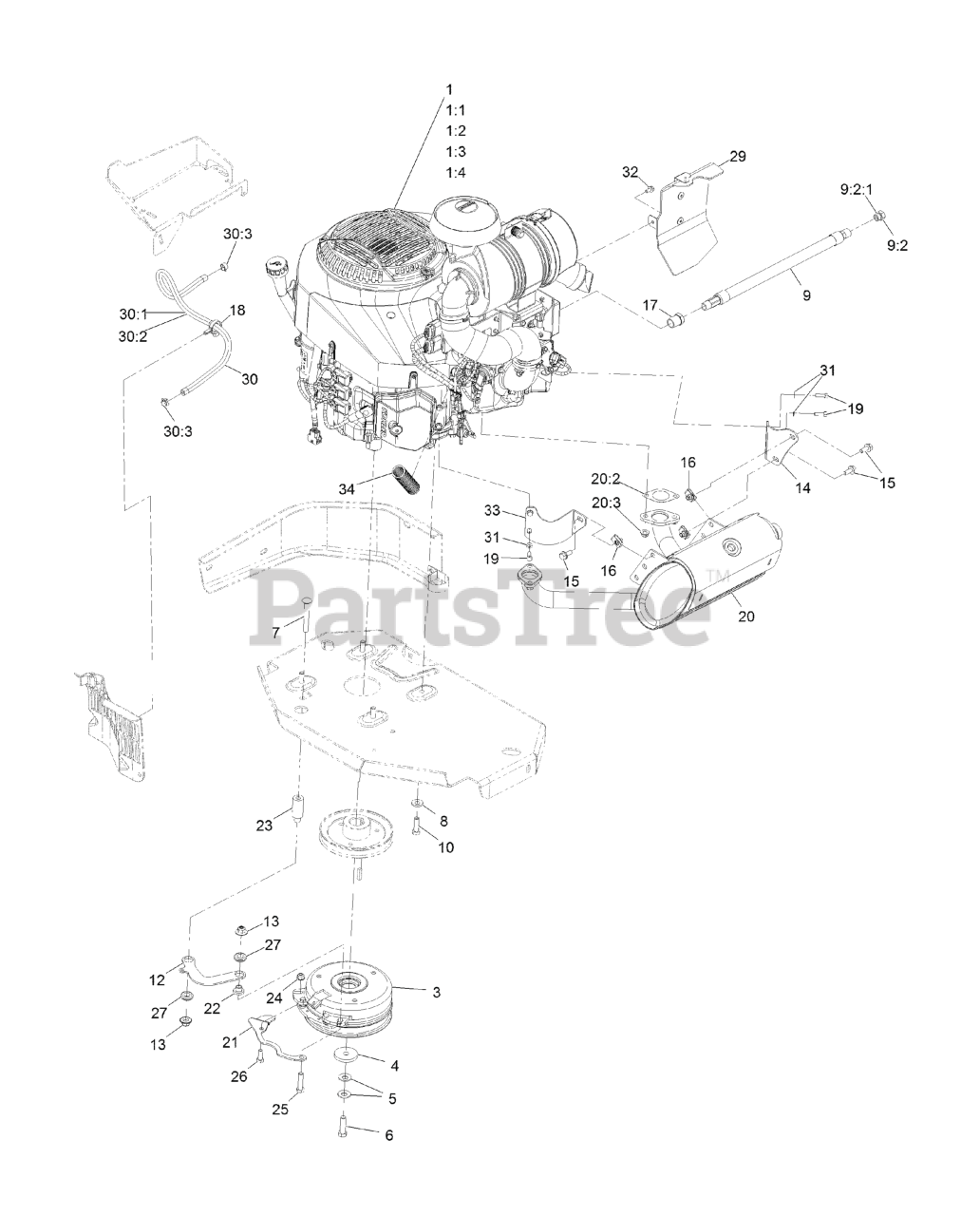

60" Lazer Z X-Series Zero-Turn Mower, Kohler ECV940

Engine Assembly Parts Diagram

  • Title

1

Engine-Kohler Ecv940-3017

Note: Not serviced separately l Obtain parts from www.kohlerplus.com

$

$

Not available

1:1

Kohler 52 050 02-S Engine Oil Filter

Note: Not serviced separately l Obtain parts from www.kohlerplus.com

$

$

Not available

1:2

Kohler 25 083 01-S Engine Air Filter

Note: Not serviced separately l Obtain parts from www.kohlerplus.com

$

$

Not available

1:3

Kohler 25 083 04-S Safety Filter

Note: Not serviced separately l Obtain parts from www.kohlerplus.com

$

$

Not available

1:4

Kohler 25 050 42-S Fuel Filter

Note: Not serviced separately l Obtain parts from www.kohlerplus.com

$

$

Not available

3

Exmark 126-4185

CLUTCH KIT

$776.99

$

Usually ships in 3-6 days

0

4

Exmark 109-6919

WASHER-CLUTCH

$8.99

$

In Stock, Qty 6

0

5

Exmark 1-603610

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

0

6

Exmark 109-9761

SCREW-HH 7/16-20 X 1 1/2 W/LOCTITE

$5.99

$

In Stock, Qty 11

0

7

Exmark 3231-42

SCREW-CARR

$2.99

$

Usually ships in 3-6 days

0

8

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

9

Exmark 116-5316

OIL DRAIN HOSE ASM

$62.99

$

In Stock, Qty 11

0

9:2

Exmark 353-508

PLUG-HH

Note: Torque to 24-26 ft-lb

$9.49

$

In Stock, only 1 left!

0

9:2:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

10

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

12

Exmark 116-3317-01

LINK-ANCHOR, CLUTCH

$17.99

$

In Stock, only 3 left!

0

13

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

14

Exmark 116-9048

BRACKET-MUFFLER

$25.99

$

Usually ships in 3-6 days

0

15

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

16

Exmark 94-2413

NUT-U

$2.99

$

In Stock, Qty 11

0

17

Exmark 103-1390

BUSHING

$6.99

$

Usually ships in 3-6 days

0

18

Exmark 105-1853

CLAMP-HOSE

$5.99

$

In Stock, only 2 left!

0

19

Exmark 116-4295

SCREW-HH M6-1 X 20Mm W/Patch

$5.99

$

Usually ships in 3-6 days

0

20

Exmark 126-5423

MUFFLER KIT

$748.99

$

Usually ships in 3-6 days

0

20:2

Exmark 126-0359

GASKET-EXHAUST

$5.99

$

Usually ships in 3-6 days

0

20:3

Exmark 116-9626

NUT-FLANGE, LOCK

$1.49

$

Usually ships in 3-6 days

0

21

Exmark 116-3331-01

BELT-GUIDE

$29.99

$

In Stock, only 1 left!

0

22

Exmark 116-3318

SPACER

$21.99

$

In Stock, only 3 left!

0

23

Exmark 116-3319

SPACER

$27.99

$

In Stock, only 1 left!

0

24

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

25

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

26

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 17

0

27

Exmark 93-5108

GROMMET-RUBBER

$17.99

$

In Stock, only 4 left!

0

29

Exmark 126-5708

REAR BAFFLE ASM
(Superseded to 135-7328)

$123.99

$

Usually ships in 3-6 days

0

30

Exmark 126-0231

FUEL LINE ASM

$31.99

$

Usually ships in 3-6 days

0

30:1

Exmark 109-0284

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0

30:2

Exmark 126-0232

SLEEVE, THERMAL

$15.99

$

Usually ships in 3-6 days

0

30:3

Exmark 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

31

Exmark 1-303435

WASHER-SPRING

$1.99

$

In Stock, Qty 20+

0

32

Exmark 104-2628

SCREW-HWH

$1.99

$

Usually ships in 3-6 days

0

33

Exmark 126-5620

BRACKET-MUFFLER, FRONT

$18.99

$

Usually ships in 3-6 days

0

34

Exmark 126-8136

CONDUIT-CONVOLUTED

$2.99

$

Usually ships in 3-6 days

0
