LZX980AKC726T0 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, Kohler CV980 (SN: 315000000 - 315999999) (2015) Caster Wheel and Fork Assembly Parts Diagram

72" Lazer Z X-Series Zero-Turn Mower, Kohler CV980

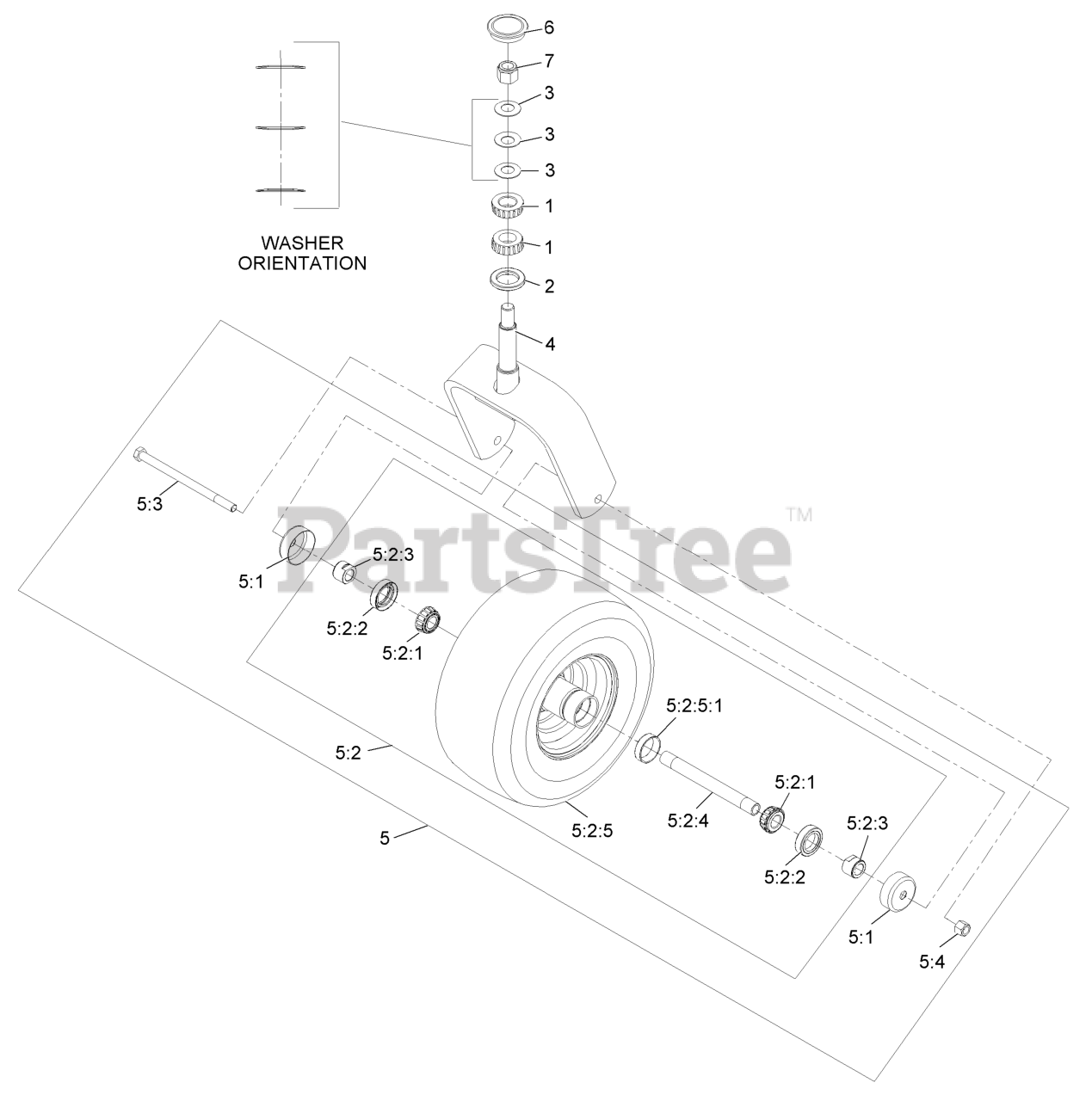

Caster Wheel and Fork Assembly Parts Diagram

  • Title

1

Exmark 1-543509

Cone-Bearing Tapered Roller

$15.99

$

In Stock, Qty 20+

0

2

Seal-Grease

$

$

Not available

3

Exmark 116-5647

SEAL-GREASE

$6.49

$

In Stock, Qty 20+

0

4

Exmark 1-633508

WASHER-BELLVILLE

$3.99

$

In Stock, Qty 20+

0

5

Exmark 116-6707-01

116-8888
(Superseded to 116-8888)

Note: Not serviced separately

$208.99

$

In Stock, Qty 20+

0

5:1

Exmark 109-9127

WHEEL & TIRE ASM

$372.99

$

In Stock, Qty 20+

0

5:2

Exmark 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

5:2:1

Bearing-Cone Tapered Roller

$

$

Not available

5:2:2

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$25.99

$

In Stock, Qty 20+

0

5:2:3

Exmark 103-0063

SEAL-CASTER

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads

$10.99

$

In Stock, Qty 20+

0

5:2:4

Exmark 103-3051

SPACER-NUT

$9.49

$

In Stock, Qty 20+

0

5:2:5

Exmark 103-5156

126-5361
(Superseded to 126-5361)

Note: Not serviced separately

$22.99

$

In Stock, Qty 7

0

5:2:5:1

Exmark 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 20+

0

5:3

Exmark 325-39

SCREW-HH

$19.99

$

In Stock, Qty 18

0

5:4

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

6

Exmark 103-4882

CAP-GREASE

$8.99

$

In Stock, Qty 20+

0

7

Exmark 3296-51

NUT-LOCK, NI

$7.49

$

In Stock, Qty 20+

0
