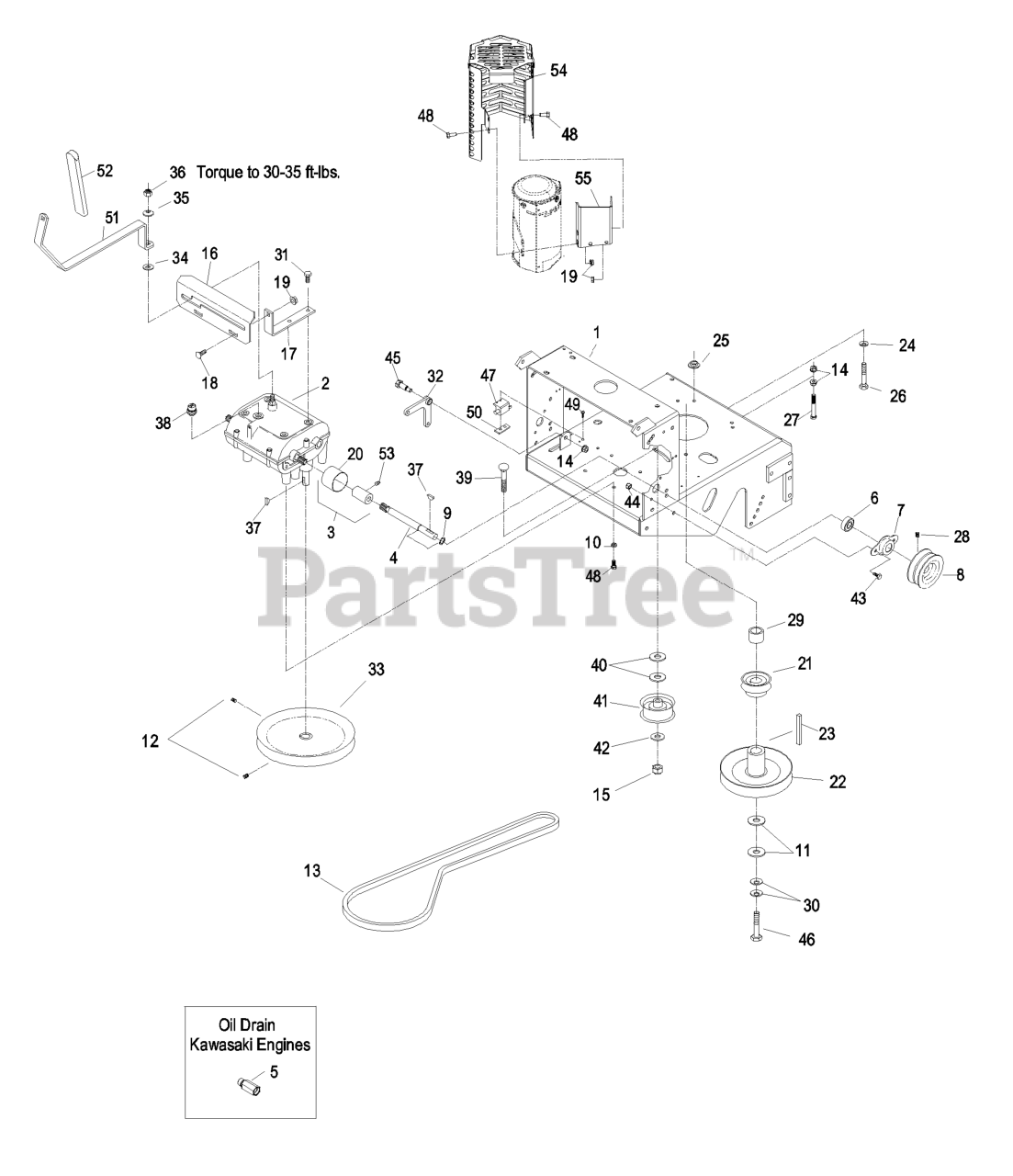

Exmark M15KA362 - Exmark 36" Metro Walk-Behind Mower, 15hp Kawasaki (SN: 790000 - 849999) (2009) Engine Deck Group Parts Lookup with Diagrams

1

Exmark 103-3499

116-6131

(Superseded to 116-6131) 

Note: (103-9897-01)

$1076.99

$

Usually ships in 3-6 days

2

Exmark 1-323500

137-4105

(Superseded to 137-4105) 

$677.99

$

In Stock, Qty 7

3

Exmark 1-324340

ASM,COUPLER/ZERK

$66.99

$

Usually ships in 3-6 days

4

Exmark 1-323502

SHAFT-TRANSMISSION

$34.99

$

In Stock, only 2 left!

5

Exmark 103-2587

ADAPTER

$31.99

$

Usually ships in 3-6 days

6

Exmark 1-323252

BEARING-SHAFT

Note: Apply anti-seize compound to bore of blade drive and transmission drive sheaves on engine, drive sheave on transmission, and bearings and sheaves on transmission output shafts.

$20.99

$

In Stock, Qty 14

7

Exmark 1-323254

FLANGE-OUTPUT

$11.99

$

In Stock, Qty 12

8

Exmark 103-6511

SHEAVE-TRANSMISSION

Note: (36"&48") Apply anti-seize compound to bore of blade drive and transmission drive sheaves on engine, drive sheave on transmission, and bearings and sheaves on transmission output shafts.

$129.99

$

In Stock, Qty 16

Exmark 103-6512

SHEAVE-TRANSMISSION

Note: (32") Apply anti-seize compound to bore of blade drive and transmission drive sheaves on engine, drive sheave on transmission, and bearings and sheaves on transmission output shafts.

$129.99

$

Usually ships in 3-6 days

9

Exmark 32151-62

RING-RETAINING

$1.99

$

In Stock, Qty 20+

10

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 19

11

Exmark 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

12

Exmark 3245-41

SCREW-HSH

Note: Use Pro-lock (Nut type) Part No. 1-840022 (.5ml tube) on setscrew threads and on sheave retaining bolt in engine crankshaft.

$2.99

$

In Stock, Qty 20+

13

Exmark 1-323280

BELT,TRANS DRIVE

(Superseded to 1-323280-SL) 

$50.99

$

In Stock, Qty 20+

14

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

15

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

16

Exmark 103-3498

PLATE,SHIFTER W/DECAL

Note: (1-323387-03)

$72.99

$

Usually ships in 3-6 days

17

Exmark 1-323389-03

BRACKET-PLATE, SHIFT

$34.99

$

Usually ships in 3-6 days

18

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

19

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

20

Exmark 51-4220

GUARD-COUPLER

$22.99

$

In Stock, only 1 left!

21

Exmark 103-1666

SHEAVE-TRANSMISSION

Note: Apply anti-seize compound to bore of blade drive and transmission drive sheaves on engine, drive sheave on transmission, and bearings and sheaves on transmission output shafts.

$45.99

$

Usually ships in 3-6 days

22

Exmark 103-1668

1-643292

(Superseded to 1-643292) 

Note: (6.71")(36") Apply anti-seize compound to bore of blade drive and transmission drive sheaves on engine, drive sheave on transmission, and bearings and sheaves on transmission output shafts.

$124.99

$

Usually ships in 3-6 days

Exmark 103-1667

1-403160

(Superseded to 1-403160) 

Note: (7.33")(32"&48") Apply anti-seize compound to bore of blade drive and transmission drive sheaves on engine, drive sheave on transmission, and bearings and sheaves on transmission output shafts.

$105.99

$

In Stock, only 2 left!

23

Exmark 103-4177

KEY

$5.99

$

In Stock, only 2 left!

24

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

25

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

26

Exmark 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

27

Exmark 323-13

SCREW-HH

$4.49

$

In Stock, Qty 20+

28

Exmark 1-803310

SCREW-SET

Note: Use Pro-lock (Nut type) Part No. 1-840022 (.5ml tube) on setscrew threads and on sheave retaining bolt in engine crankshaft.

$2.99

$

Usually ships in 3-6 days

29

Exmark 1-633453

SPACER-CLUTCH

$21.99

$

In Stock, only 2 left!

30

Exmark 1-603610

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

31

Exmark 9264964

SCREW-HWH, THREAD CUT

$1.99

$

In Stock, only 4 left!

32

Exmark 1-303186

BELLCRANK

$66.99

$

In Stock, only 1 left!

33

Exmark 1-323278

SHEAVE-TRANSMISSION

Note: Apply anti-seize compound to bore of blade drive and transmission drive sheaves on engine, drive sheave on transmission, and bearings and sheaves on transmission output shafts.

$92.99

$

In Stock, Qty 7
