M4815KC - Exmark 48" Metro Walk-Behind Mower, 15hp Kohler (SN: 320000 - 369999) (2002) ECS Upper Handles & Controls Parts Diagram

48" Metro Walk-Behind Mower, 15hp Kohler

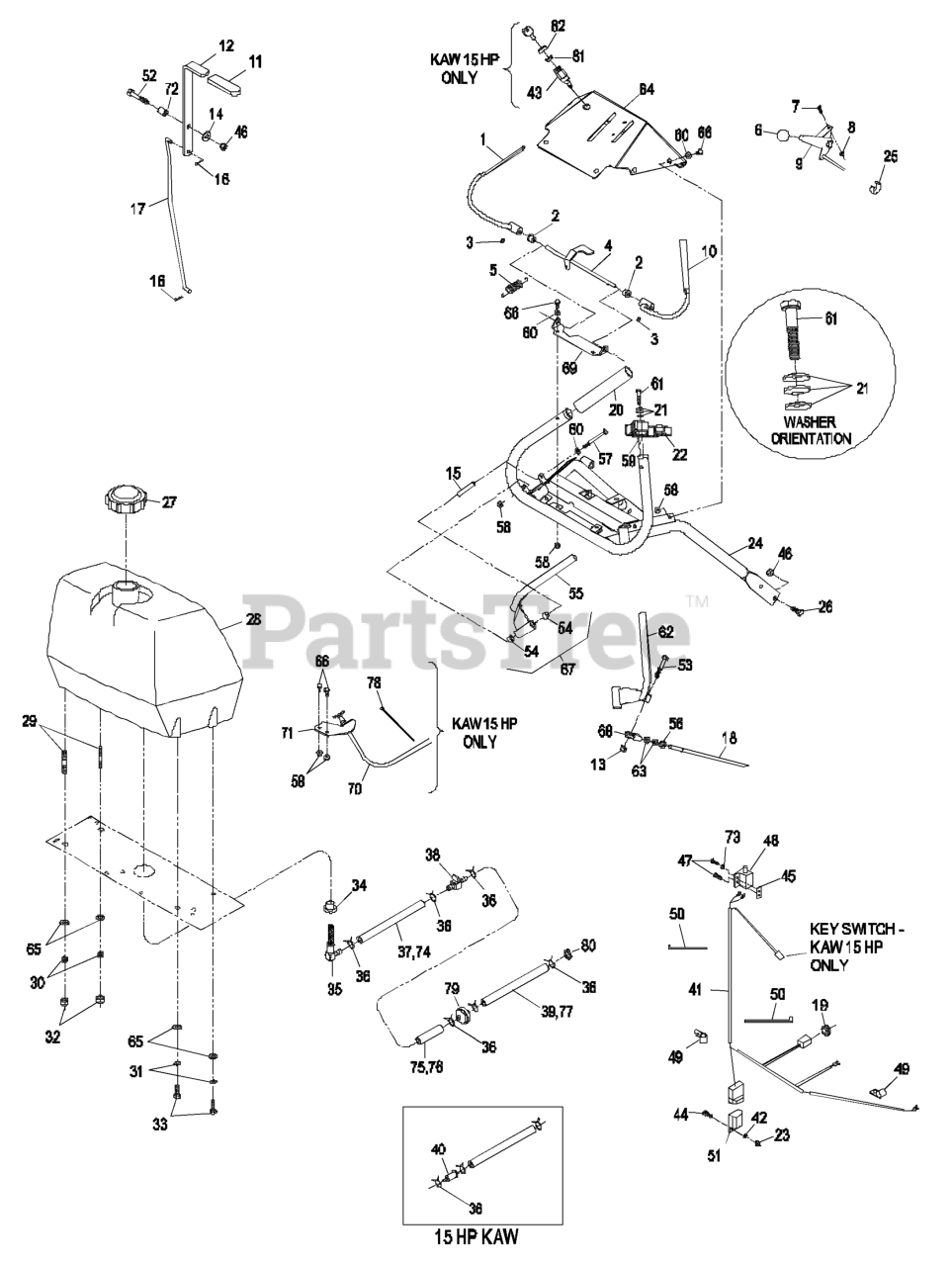

ECS Upper Handles & Controls Parts Diagram

  • Title

1

Exmark 103-1566-03

116-4079
(Superseded to 116-4079)

$42.99

$

In Stock, Qty 12

0

2

Exmark 1-303365

BUSHING-NYLON

$5.99

$

In Stock, Qty 20+

0

3

Exmark 1-803322

SCREW-SET

Note: Use Pro-lock nut type, P/N 1-840022 (.5cc tube) on setscrew threads and to thumb latch screws.

$1.49

$

In Stock, Qty 20+

0

4

Exmark 103-0769-03

WLD,OPC LEVER AXLE

$52.99

$

In Stock, Qty 20+

0

5

Exmark 1-303363

SPRING-EXTENSION

$7.49

$

In Stock, Qty 15

0

6

Exmark 1-513592

KNOB-BALL

$7.49

$

In Stock, Qty 16

0

7

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

8

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Exmark 1-633696

THROTTLE CABLE ASM

$68.99

$

In Stock, Qty 19

0

Exmark 1-323322

CABLE-CONTROL, THROTTLE

$72.99

$

In Stock, only 2 left!

0

10

Exmark 103-1567-03

116-4080
(Superseded to 116-4080)

$42.99

$

In Stock, Qty 10

0

11

Exmark 1-303020

GRIP-LEVER

$2.99

$

In Stock, only 2 left!

0

12

Exmark 103-1629

CLUTCH LEVER-W/GRIP

$25.99

$

Usually ships in 3-6 days

0

13

Exmark 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

14

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

15

Exmark 103-0027

BUSHING-LEVER, DRIVE

$22.99

$

In Stock, Qty 20+

0

16

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

17

Exmark 103-1627

LINKAGE,UPPER BLADE (PLT)

$21.99

$

In Stock, only 2 left!

0

18

Exmark 103-1604

LINKAGE,DRIVE (PLT)

$28.99

$

In Stock, only 3 left!

0

19

Exmark 1-543296

GROMMET

$9.49

$

In Stock, only 2 left!

0

20

Exmark 103-0815

GRIP-BAR, HANDLE

$13.99

$

In Stock, only 2 left!

0

21

Exmark 1-303435

WASHER-SPRING

$1.99

$

In Stock, Qty 20+

0

22

Exmark 103-1631

ASM,LH THUMB LATCH

$42.99

$

In Stock, only 2 left!

0

Exmark 103-1630

ASM,RH THUMB LATCH

Note: (Shown)

$42.99

$

In Stock, only 1 left!

0

23

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

24

Exmark 103-0770-03

WLD,UPPER ECS HANDLE

$751.99

$

Usually ships in 3-6 days

0

25

Exmark 1-303088

CLIP-CABLE

$2.99

$

Usually ships in 3-6 days

0

26

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

27

Exmark 1-513508

CAP-FUEL

$30.99

$

In Stock, Qty 20+

0

28

Exmark 1-413179

109-6930
(Superseded to 109-6930)

$

$

Not available

29

Exmark 1-633023

STUD

Note: Use Pro-lock retaining type, P/N 1-840023 (.5cc tube) on inside of bore of OPC hub and on fuel tank studs.

$6.99

$

In Stock, Qty 12

0

30

Exmark 1-633349

SPRING-TANK, FUEL

$5.99

$

In Stock, Qty 17

0

31

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 19

0

32

Exmark 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

33

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

34

Exmark 1-513645

46-6560
(Superseded to 46-6560)

$6.49

$

In Stock, Qty 20+

0

35

Exmark 1-543277

ELBOW-TANK, FUEL

$13.99

$

In Stock, Qty 20+

0

36

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 20+

0

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 20+

0

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 20+

0

37

Exmark 1-603955

HOSE-FUEL

$6.49

$

Usually ships in 3-6 days

0

38

Exmark 1-603770

VALVE-FUEL

$9.49

$

In Stock, only 4 left!

0

39

Exmark 1-303022

HOSE-FUEL

$

$

Not available

40

Kawasaki P/N 41019-1055 W/6" Fuel Line

$

$

Not available

41

Exmark 103-1660

HARNESS-WIRING

Note: Use dielectric grease on all electrical connectors.

$

$

Not available

Exmark 103-1640

HARNESS-WIRE

Note: Use dielectric grease on all electrical connectors.

$

$

Not available

Exmark 103-1610

HARNESS-WIRING

Note: Use dielectric grease on all electrical connectors.

$

$

Not available

42

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 18

0

43

Exmark 1-403121

SWITCH & KEY (INCLUDES NU

$25.99

$

In Stock, only 2 left!

0

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.99

$

In Stock, Qty 16

0

Exmark 103-2106

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

44

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

45

Exmark 1-633181

PLATE-TAPPED

$7.49

$

In Stock, only 3 left!

0

46

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

47

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

48

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$21.99

$

In Stock, Qty 13

0

49

Exmark 1-323229

CLIP-LOOM

$3.49

$

Usually ships in 3-6 days

0

Exmark 1-323229

CLIP-LOOM

$3.49

$

Usually ships in 3-6 days

0

50

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

51

Exmark 1-323430

MODULE-INTERLOCK

$153.99

$

In Stock, only 2 left!

0

52

Exmark 3231-4

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0

53

Exmark 322-9

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

54

Exmark 1-413152

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 20+

0

55

Exmark 103-2466-03

103-2514
(Superseded to 103-2514)

$156.99

$

In Stock, only 4 left!

0

56

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 8

0

57

Exmark 321-14

SCREW-HH

$5.49

$

In Stock, Qty 7

0

58

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

59

Exmark 103-0464

126-2925
(Superseded to 126-2925)

$1.49

$

In Stock, Qty 10

0

60

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

61

Exmark 103-0235

SCREW-HH

Note: Use Pro-lock nut type, P/N 1-840022 (.5cc tube) on setscrew threads and to thumb latch screws.

$1.49

$

In Stock, Qty 5

0

62

Exmark 103-2465-03

116-4082
(Superseded to 116-4082)

$62.99

$

Usually ships in 3-6 days

0

63

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

64

Exmark 103-0546-03

103-2458
(Superseded to 103-2458)

$

$

Not available

65

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

66

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

67

Exmark 103-2513

DRIVE LEVER-ASM, RH

$156.99

$

Usually ships in 3-6 days

0

Exmark 103-2514

DRIVE LEVER-ASM, LH

$156.99

$

In Stock, only 4 left!

0

68

Exmark 103-2463

JOINT-BALL, END

$31.99

$

In Stock, only 2 left!

0

69

Exmark 103-0489-03

BRACKET,OPC AXLE

$28.99

$

In Stock, only 2 left!

0

70

Exmark 103-1796

CABLE-CHOKE

$55.99

$

In Stock, Qty 13

0

71

Exmark 103-1797-01

BRACKET-CABLE, CHOKE

$10.99

$

In Stock, only 1 left!

0

72

Exmark 1-633080

BUSHING-LEVER, LIFT

$11.99

$

Usually ships in 3-6 days

0

73

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

74

Exmark 1-303022

HOSE-FUEL

$

$

Not available

75

Exmark 1-603776

HOSE-LINE, FUEL

$

$

Not available

76

Exmark 1-603955

HOSE-FUEL

$6.49

$

Usually ships in 3-6 days

0

77

Exmark 1-603954

HOSE-LINE, FUEL

$10.99

$

Usually ships in 3-6 days

0

78

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

79

Exmark 1-303197

109585
(Superseded to 139-5916)

$9.49

$

In Stock, Qty 20+

0

80

Exmark 1-303308

CLAMP-HOSE

$

$

Not available

81

Exmark 103-0498

NUT-SWITCH, IGNITION

$3.99

$

In Stock, Qty 10

0

82

Exmark 103-0499

SEAL-SWITCH, IGNITION

$3.49

$

Usually ships in 3-6 days

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

$21.99

$

In Stock, only 2 left!

0

Exmark 1-840023

PRO-LOCK-RETAINING 1

$23.99

$

Usually ships in 3-6 days

0
