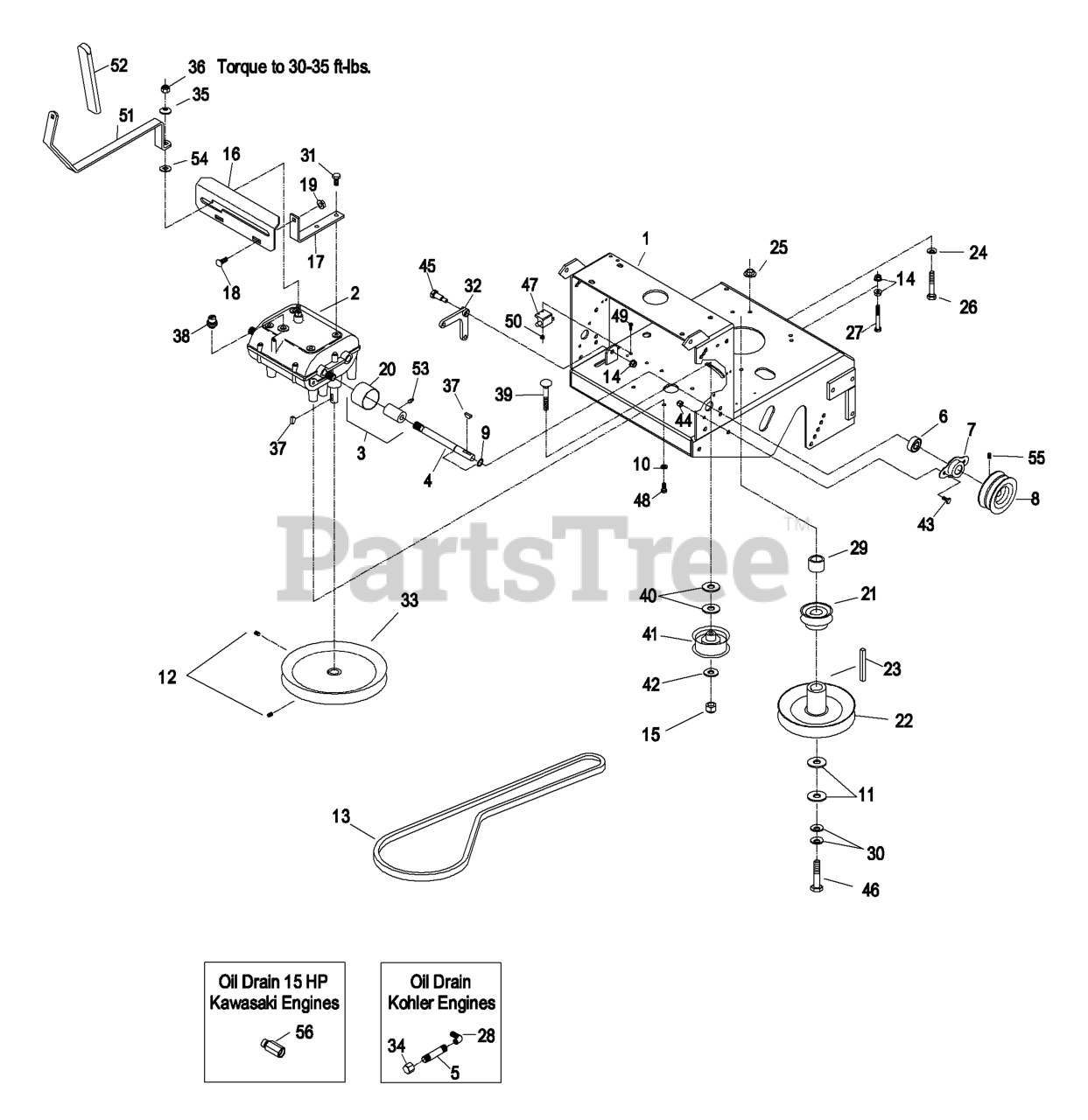

M4815KC - Exmark 48" Metro Walk-Behind Mower, 15hp Kohler (SN: 370000 - 439999) (2003) Engine Deck Group (Part 1) Parts Diagram
48" Metro Walk-Behind Mower, 15hp Kohler
Engine Deck Group (Part 1) Parts Diagram
$1076.99
$
$677.99
$
Exmark 1-324340
$66.99
$
Exmark 1-323502
$34.99
$
Exmark 1-323326
Note: Use Teflon Pipe Sealant (or equivalent) on all pipe threads, except cap. Kohler models only
$
$
Not available
Exmark 1-323252
Note: Apply anti-seize compound to bore of blade drive and transmission drive pulleys on engine, drive pulley on transmission, and bearings and sheaves on transmission output shafts.
$20.99
$
Exmark 1-323254
$11.99
$
Exmark 1-323257-03
Note: Apply anti-seize compound to bore of blade drive and transmission drive pulleys on engine, drive pulley on transmission, and bearings and sheaves on transmission output shafts.
$129.99
$
Exmark 1-323363-03
Note: Apply anti-seize compound to bore of blade drive and transmission drive pulleys on engine, drive pulley on transmission, and bearings and sheaves on transmission output shafts.
$129.99
$
Exmark 32151-62
$1.99
$
Exmark 1-805005
$1.49
$
Exmark 1-373034
$3.99
$
Exmark 3245-41
Note: Use Pro-lock (Nut type) Part No. 1-840022 (.5ml tube) on setscrew threads and on sheave retaining bolt in engine crankshaft.
$2.99
$
$50.99
$
Exmark 3290-357
$0.99
$
Exmark 3296-39
$2.99
$
$72.99
$
Exmark 1-323389-03
$34.99
$
Exmark 3230-1
$1.99
$
Exmark 32128-20
$1.49
$
Exmark 51-4220
$22.99
$
Exmark 103-1666
Note: Apply anti-seize compound to bore of blade drive and transmission drive pulleys on engine, drive pulley on transmission, and bearings and sheaves on transmission output shafts.
$45.99
$
Exmark 103-1668
Note: Apply anti-seize compound to bore of blade drive and transmission drive pulleys on engine, drive pulley on transmission, and bearings and sheaves on transmission output shafts.
$124.99
$
Exmark 103-1667
Note: Apply anti-seize compound to bore of blade drive and transmission drive pulleys on engine, drive pulley on transmission, and bearings and sheaves on transmission output shafts.
$105.99
$
Exmark 5-1336
$11.99
$
Exmark 1-303334
$2.99
$
Exmark 32128-20
$1.49
$
Exmark 322-7
Note: Torque Engine Mounting Bolts: 15 HP Kaw to 15-20 ft-lbs / Kohler & 12.5 HP Kaw to 25-30 ft-lbs.
$1.49
$
Exmark 33114-025
Note: Torque Engine Mounting Bolts: 15 HP Kaw to 15-20 ft-lbs / Kohler & 12.5 HP Kaw to 25-30 ft-lbs.
$1.99
$
Exmark 323-13
$4.49
$
Exmark 1-303431
Note: Use Teflon Pipe Sealant (or equivalent) on all pipe threads, except cap. Kohler models only
$
$
Not available
Exmark 1-633453
$21.99
$
Exmark 1-603610
$5.99
$
Exmark 98-5975
$3.99
$
Exmark 9264964
$1.99
$
Exmark 1-303186
$66.99
$
Exmark 1-323278
Note: Apply anti-seize compound to bore of blade drive and transmission drive pulleys on engine, drive pulley on transmission, and bearings and sheaves on transmission output shafts.
$92.99
$
$
$
Not available
Exmark 98-5975
$3.99
$
Exmark 3296-6
$1.99
$
Exmark 3257-5
$6.49
$
Exmark 1-303282
$54.99
$
Exmark 323-16
$3.49
$
Exmark 3256-5
$0.99
$
$56.99
$
Exmark 3256-24
$0.99
$
Exmark 321-3
$1.49
$
Exmark 3296-42
$0.99
$
Exmark 1-603403
$18.99
$
Exmark 3212-6
Note: Use Pro-lock (Nut type) Part No. 1-840022 (.5ml tube) on setscrew threads and on sheave retaining bolt in engine crankshaft.
$2.99
$
Exmark 33115-035
Note: Use Pro-lock (Nut type) Part No. 1-840022 (.5ml tube) on setscrew threads and on sheave retaining bolt in engine crankshaft.
$3.49
$
Exmark 1-513051
$21.99
$
Exmark 322-3
$0.99
$
Exmark 3290-500
$1.49
$
Exmark 3296-2
$2.49
$
Exmark 103-1606
$66.99
$
Exmark 103-1733
$17.99
$
Exmark 302-19
$2.99
$
Exmark 1-323379
$3.99
$
Exmark 1-803310
Note: Use Pro-lock (Nut type) Part No. 1-840022 (.5ml tube) on setscrew threads and on sheave retaining bolt in engine crankshaft.
$2.99
$
Exmark 103-2587
$31.99
$
