MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) Attachment Lift Selector Valve Assembly Parts Diagram

Maxi Sneaker Series E Trencher

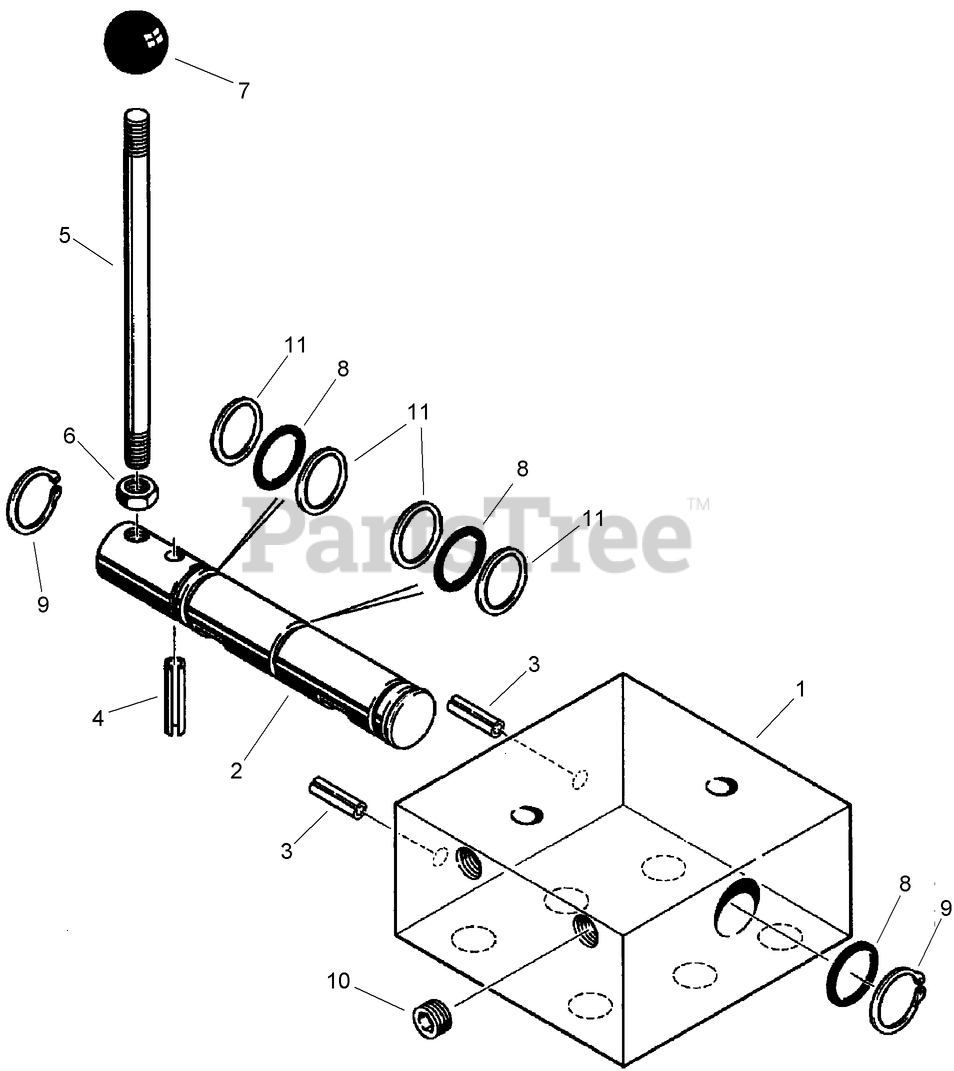

Attachment Lift Selector Valve Assembly Parts Diagram

  • Title

Toro AUH672689

See Supercession: 127-6557
(Superseded to 127-6557)

Note: Not illustrated

$1376.99

$

Usually ships in 3-6 days

0

1

HOUSING - Valve

Note: Not serviced separately

$

$

Not available

2

SPOOL - valve

Note: Not serviced separately

$

$

Not available

3

Toro AU38-11616

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0

4

Toro AU38-11624

PIN-SPRING, SLOTTED

$0.99

$

Usually ships in 3-6 days

0

5

Toro AUA161914

ROD

$49.99

$

Usually ships in 3-6 days

0

6

Toro AU425-155

NUT-JAM

$1.49

$

Usually ships in 3-6 days

0

7

Toro AUH249839

KNOB

$29.99

$

Usually ships in 3-6 days

0

8

Toro AU238-5115

See Supercession: AU129979
(Superseded to AU129979)

$0.99

$

Usually ships in 3-6 days

0

9

Toro AU100-1187

RING-SNAP

$

$

Not available

10

Toro AU221-841

See Supercession: AU217-504
(Superseded to AU217-504)

$0.99

$

Usually ships in 3-6 days

0

11

Toro AU223614A1

RING-BACKUP

$6.49

$

Usually ships in 3-6 days

0
