MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) Basic Hydraulic Circuit Parts Diagram

Maxi Sneaker Series E Trencher

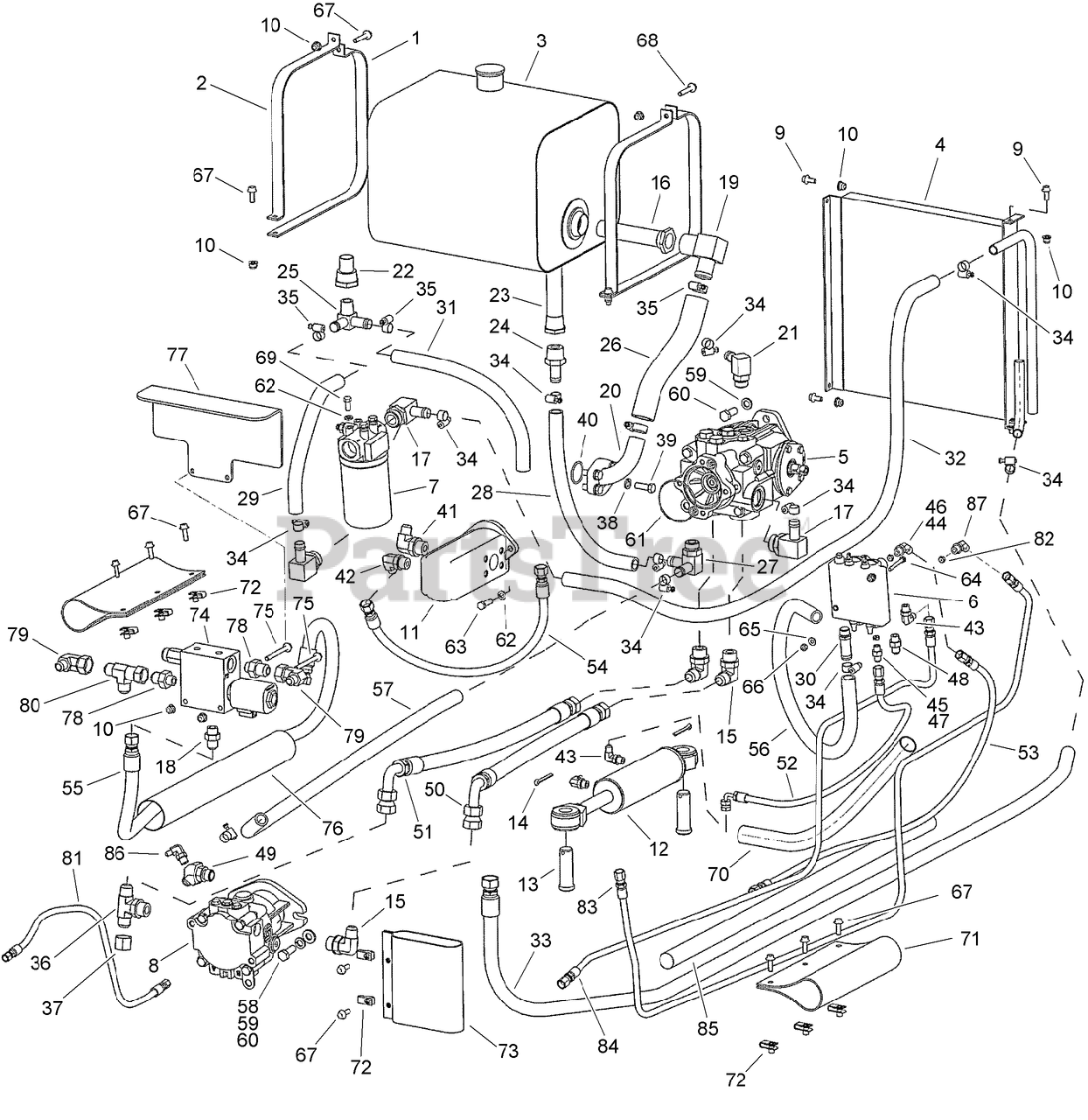

Basic Hydraulic Circuit Parts Diagram

  • Title

Toro AU106372

HYDRAULIC PLUMBING REF

Note: Not illustrated

$

$

Currently unavailable

1

Toro AUH435847

STRAP-TANK

$

$

Not available

2

Toro AUH435811

STRAP-TANK

$

$

Not available

3

Toro AU111566A1

See Supercession: 127-1097
(Superseded to 127-1097)

$1437.99

$

Usually ships in 3-6 days

0

4

Toro AU112963A1

COOLER-OIL

$1628.99

$

Usually ships in 3-6 days

0

5

Toro AU239918A1

HYD VARIABLE PUMP ASM

$3980.99

$

Usually ships in 3-6 days

0

6

Toro AU407213A1

HYD STEERING VALVE ASM

$2726.99

$

Usually ships in 3-6 days

0

7

Toro AUD121629

OIL FILTER ASM

$266.99

$

Usually ships in 3-6 days

0

8

Toro AU239920A2

HYD PISTON MOTOR ASM

$1926.99

$

Usually ships in 3-6 days

0

9

Toro AU100872

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

10

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

11

Toro AU188947A1

HYD PUMP ASM
(Superseded to 137-4680)

$2296.99

$

Usually ships in 3-6 days

0

12

Toro AU86992252

See Supercession: AU125471
(Superseded to AU125471)

$1953.99

$

Usually ships in 3-6 days

0

13

Toro AUH67272

PIN-CLEVIS

$87.99

$

Usually ships in 3-6 days

0

14

Toro AU432-1628

PIN-COTTER

$3.99

$

Usually ships in 3-6 days

0

15

Toro AU218-5108

FITTING-ELBOW,90

$34.99

$

Usually ships in 3-6 days

0

16

Toro AUH584631

FILTER ASM

$161.99

$

Usually ships in 3-6 days

0

17

Toro AU217-362

STEM-90 BEAD HOSE 3/4ID X1-5/

$62.99

$

Usually ships in 3-6 days

0

18

Toro AU218-5062

CONNECTOR-SHORT

$9.49

$

Usually ships in 3-6 days

0

19

Toro AU217-166

FITTING-ELBOW, 90

$34.99

$

Usually ships in 3-6 days

0

20

Toro AU119152A1

FITTING-ELBOW, 90 DEG

$

$

Not available

21

Toro AU217-351

STEM-90 BEAD HOSE 3/4ID X1-1/

$64.99

$

Usually ships in 3-6 days

0

22

Toro AUH428193

INDUCER-PRESSURE

$

$

Currently unavailable

23

Toro AUH151399

FILTER ASM

$

$

Not available

24

Toro AU217-384

FITTING-STRAIGHT

$110.99

$

Usually ships in 3-6 days

0

25

Toro AUD64786

FITTING-ELBOW, LATERAL

$216.99

$

Usually ships in 3-6 days

0

26

Toro AU135959A1

HOSE-CUT SUCTION

$38.99

$

Usually ships in 3-6 days

0

27

Toro AUH339762

TEE

$134.99

$

Usually ships in 3-6 days

0

28

Toro AUH380170

HOSE-CUT RETURN PTO

$31.99

$

Usually ships in 3-6 days

0

29

Toro AU107301

HOSE-CUT HYDRAULIC 3/4"X12.5"

$

$

Not available

30

Toro AU217-396

STEM-STR BEAD HOSE 3/4ID X 3/

$98.99

$

Usually ships in 3-6 days

0

31

Toro AUH383158

HOSE-CUT MAXI

$40.99

$

Usually ships in 3-6 days

0

32

Toro AU105252

HOSE-HYUDRAULIC 3/4" X 1495MM

$180.99

$

Usually ships in 3-6 days

0

33

Toro AU111856A1

HOSE-3/4 X 2135

$216.99

$

Usually ships in 3-6 days

0

34

Toro AU214-1412

CLAMP-HOSE TYPE F #12

$1.49

$

Usually ships in 3-6 days

0

35

Toro AU214-1424

CLAMP-HOSE

$1.99

$

Usually ships in 3-6 days

0

36

Toro AU218-5185

TEE-ADJ. 3/4 TUBE 37DEG FLARE

$61.99

$

Usually ships in 3-6 days

0

37

Toro AU218-335

CAP

$9.49

$

Usually ships in 3-6 days

0

38

Toro AU492-11044

WASHER-LOCK, 7/16 REG. ZND

$0.99

$

Usually ships in 3-6 days

0

39

Toro AU426-720

BOLT-7/16-14 X 1-1/4 GR 8 ZND

$0.99

$

Usually ships in 3-6 days

0

40

Toro AU238-5222

O-RING

$1.99

$

Usually ships in 3-6 days

0

41

Toro AU218-5119

ADAPTOR-ELBOW

$39.99

$

Usually ships in 3-6 days

0

42

Toro AU218-5121

ELBOW-1/2 TO 5/8 90 DEG.

$21.99

$

Usually ships in 3-6 days

0

43

Toro AU218-5105

ELBOW-90 DEG (ADJUSTABLE 37 DEG)

$4.99

$

Usually ships in 3-6 days

0

44

Toro AUH746875

PLATE-ORIFICE

$27.99

$

Usually ships in 3-6 days

0

45

Toro AUH433173

PLATE-ORIFICE

$40.99

$

Usually ships in 3-6 days

0

46

Toro AU218-5135

ELBOW-45

$

$

Not available

47

Toro AU218-5057

FITTING-STRAIGHT

$4.49

$

Usually ships in 3-6 days

0

48

Toro AU218-5059

CONNECTOR-SHORT 37FL 1/2 TUBE

$5.99

$

Usually ships in 3-6 days

0

49

Toro AU109554

FITTING-HYD, 45 (SPECIAL)

$

$

Not available

50

Toro AUA148749

HOSE-PUMP TO REG. VALVE

$177.99

$

Usually ships in 3-6 days

0

51

Toro AUA148749

HOSE-PUMP TO REG. VALVE

$177.99

$

Usually ships in 3-6 days

0

52

Toro AUH249029

HOSE-6/-4/-6 736MM OAL

$

$

Not available

53

Toro AUH172965

HOSE ASM, -4/-4/-4, 37" OAL

$110.99

$

Usually ships in 3-6 days

0

54

Toro AUH174672

HOSE - 610 mm (24 inch) Long, Pump to Steering Control Valve

$

$

Not available

55

Toro AUH431809

HOSE-5/8X1600

$245.99

$

Usually ships in 3-6 days

0

56

Toro AUH434280

HOSE-CUT MAXI

$103.99

$

Usually ships in 3-6 days

0

57

Toro AUH434280

HOSE-CUT MAXI

$103.99

$

Usually ships in 3-6 days

0

58

Toro AUH274894

WASHER

$2.99

$

Usually ships in 3-6 days

0

59

Toro AU492-11050

See Supercession: 3253-7
(Superseded to 325-37)

$7.49

$

Usually ships in 3-6 days

0

60

Toro AU426-820

BOLT-1/2-13 X 1-1/4 GR 8 ZND

$1.49

$

Usually ships in 3-6 days

0

61

Toro AU238-5152

O-RING

$1.99

$

Usually ships in 3-6 days

0

62

Toro AU492-11038

See Supercession: 3253-21
(Superseded to 3253-21)

$0.99

$

In Stock, only 4 left!

0

63

Toro AU426-620

See Supercession: 323-44
(Superseded to 323-44)

$5.99

$

Usually ships in 3-6 days

0

64

Toro AU426-432

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

65

Toro AUH426767

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

66

Toro AU232-4144

NUT - Prev Trq 1/4 GRC ZND Direct

$

$

Not available

67

Toro AU100873

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

68

Toro AU100320

SCREW-METRIC FLNGE M8 X 45

$1.99

$

Usually ships in 3-6 days

0

69

Toro AU426-612

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

70

Toro AUD131789

SLEEVE-HOSE PROTECTOR

$

$

Not available

71

Toro AU123989A1

BOOT-HOSE

$78.99

$

Usually ships in 3-6 days

0

72

Toro AU100862

NUT-U

$4.99

$

Usually ships in 3-6 days

0

73

Toro AU107409

BOOT-HOSE

$

$

Currently unavailable

74

Toro AU106887

3 WAY HYD PLOW VALVE ASM

$1450.99

$

Usually ships in 3-6 days

0

75

Toro AU100326

SCREW, METRIC FLANGE w/BODY - M8 x 80

$

$

Currently unavailable

76

Toro AUH434723

SLEEVE-HOSE PROTECTOR, MAXI

$

$

Not available

77

Toro AU109048

PLATE - Heat Shield

$

$

Not available

78

Toro AU218-5065

CONNECTOR-3/4 37FL-ORB 5/8

$19.99

$

Usually ships in 3-6 days

0

79

Toro AU218-5377

FITTING-ELBOW, 90

$58.99

$

Usually ships in 3-6 days

0

80

Toro AU218-5221

FITTING-TEE

$57.99

$

Usually ships in 3-6 days

0

81

Toro AUH362418

HOSE-1/4 X 48

$118.99

$

Usually ships in 3-6 days

0

82

Toro AUH757815

ORIFICE

$26.99

$

Usually ships in 3-6 days

0

83

Toro AUH249615

HOSE-1/4 X 62

$

$

Not available

84

Toro AUH433163

HOSE

$116.99

$

Usually ships in 3-6 days

0

85

Toro AUH434724

SLEEVE-HOSE PROTECTOR

$58.99

$

Usually ships in 3-6 days

0

86

Toro AU218-5283

FITTING-90 ADJ 37FL 1/4X3/8 T

$7.49

$

Usually ships in 3-6 days

0

87

Toro AU218-5552

ELBOW-90 ADJ LONG 3/8

$24.99

$

Usually ships in 3-6 days

0
