MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) Battery, Mounting and Cable Assembly Parts Diagram

Maxi Sneaker Series E Trencher

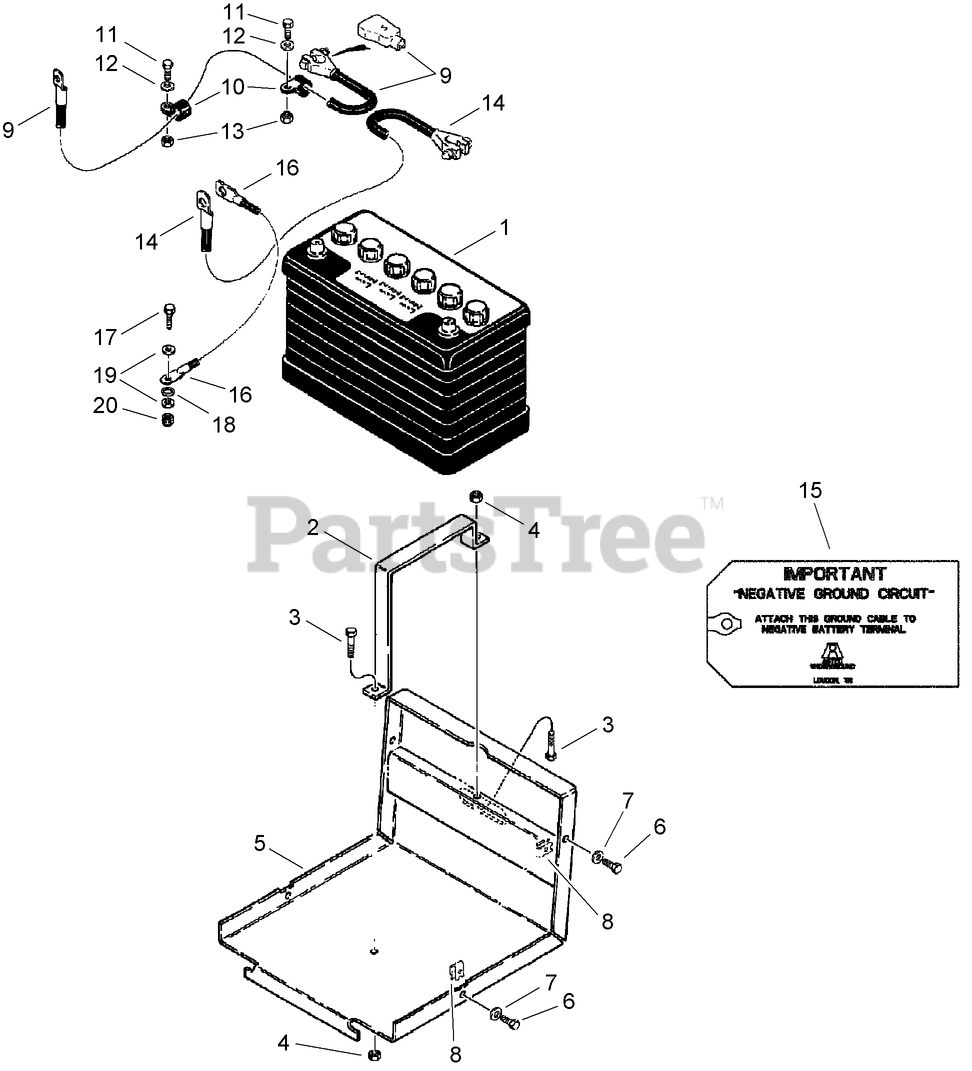

Battery, Mounting and Cable Assembly Parts Diagram

  • Title

1

BATTERY - 12 Volt (order from local Exide supplier)

Note: Not serviced separately

$

$

Not available

2

Toro AUH436777

See Supercession: AUH436777-03
(Superseded to AUH436777-03)

$129.99

$

Usually ships in 3-6 days

0

3

Toro AU426-620

See Supercession: 323-44
(Superseded to 323-44)

$5.99

$

Usually ships in 3-6 days

0

4

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

5

Toro AUH673382

TRAY - Battery

$

$

Not available

6

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

7

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

8

Toro AU131-634

NUT-SPRING

$5.99

$

Usually ships in 3-6 days

0

9

Toro AUD136982

CABLE-BATTERY - POSITIVE

$

$

Not available

10

Toro AU515-23127

CLAMP-12.7MM ""P"" INSUL 3/8

$2.49

$

Usually ships in 3-6 days

0

11

Toro AU426-516

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

12

Toro AU496-11034

See Supercession: 94-6936
(Superseded to 94-6936)

$0.99

$

Usually ships in 3-6 days

0

13

Toro AU232-4115

NUT-HEX

$

$

Not available

14

Toro AUH106096

CABLE-BATTERY

$76.99

$

Usually ships in 3-6 days

0

15

Toro AU102569

TAG-NEGATIVE GROUND CIRCUIT

$13.99

$

Usually ships in 3-6 days

0

16

Toro AUH256990

CABLE-BLACK

$

$

Not available

17

Toro AU426-516

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

18

Toro AU493-41033

WASHER-TOOTHED LOCK 5/16 ZND
(Superseded to 3255-8)

$0.99

$

In Stock, Qty 10

0

19

Toro AU496-11034

See Supercession: 94-6936
(Superseded to 94-6936)

$0.99

$

Usually ships in 3-6 days

0

20

Toro AU232-4115

NUT-HEX

$

$

Not available
