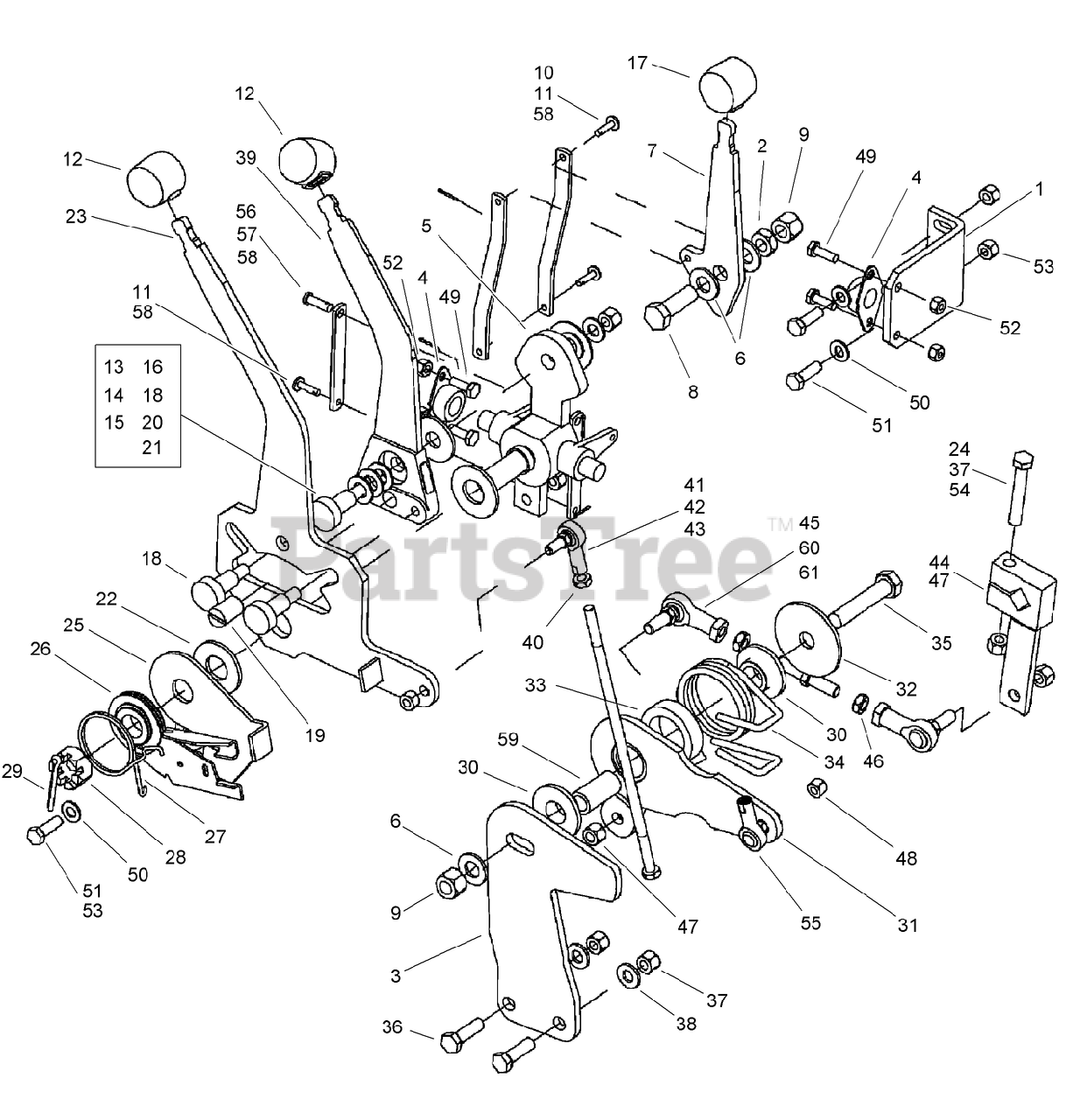

Maxi Sneaker Series E Trencher

Directional Controls Parts Diagram

  • Title

Toro AU105945

GROUND DRIVE CONTROLS REF

Note: Not illustrated

$

$

Currently unavailable

1

Toro AUH426163

ANGLE - Mounting

$

$

Currently unavailable

2

Toro AU425-148

NUT-JAM

$2.49

$

Usually ships in 3-6 days

0

3

Toro AU131966A2

PLATE-CENTERING

$71.99

$

Usually ships in 3-6 days

0

4

Toro AUH755785

BEARING

$21.99

$

Usually ships in 3-6 days

0

5

Toro AUH435855

PIVOT-CONTROL, STEERING

$491.99

$

Usually ships in 3-6 days

0

6

Toro AU495-11053

WASHER-FLAT, 1/2 ZND

$0.99

$

Usually ships in 3-6 days

0

7

Toro AU105259

HANDLE - Plow

$

$

Currently unavailable

8

Toro AU426-824

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

9

Toro AU230-4218

NUT-HEX

$3.49

$

Usually ships in 3-6 days

0

10

Toro AUH423046

LINK-CONTROL VALVE

$39.99

$

Usually ships in 3-6 days

0

11

Toro AUH44529

PIN-CLEVIS

$4.49

$

Usually ships in 3-6 days

0

12

Toro AUA177435

KNOB

$25.99

$

Usually ships in 3-6 days

0

13

Toro AUH429894

WASHER-FRICTION

$38.99

$

Usually ships in 3-6 days

0

14

Toro AUR14771

WASHER-BELLEVILLE

$12.99

$

Usually ships in 3-6 days

0

15

Toro AU495-11041

WASHER-FLAT, 3/8 ZND

$0.99

$

Usually ships in 3-6 days

0

16

Toro AU230-4216

See Supercession: 125-5069
(Superseded to 603773)

$2.99

$

In Stock, Qty 20+

0

17

Toro AUH438223

KNOB-GREEN

$

$

Not available

18

Toro AUH404822

See Supercession: 1-603403
(Superseded to 1-603403)

$18.99

$

Usually ships in 3-6 days

0

19

Toro AUH404731

BALL-PLUNGER

$108.99

$

Usually ships in 3-6 days

0

20

Toro AUH405035

RACE-THRUST

$10.99

$

Usually ships in 3-6 days

0

21

Toro AUH405043

BEARING-THRUST (NEEDLE)

$16.99

$

Usually ships in 3-6 days

0

22

Toro AUH433170

WASHER-SPACER

$2.49

$

Usually ships in 3-6 days

0

23

Toro AUH673413

HANDLE ASM-CONTROL

$

$

Not available

24

Toro AU110866A1

See Supercession: AU110866A1-03
(Superseded to AU110866A1-03)

$196.99

$

Usually ships in 3-6 days

0

25

Toro AUH436230

PLATE-CENTERING

$153.99

$

Usually ships in 3-6 days

0

26

Toro AUH673263

NEUTRAL SWITCH MOUNTING ASM

$154.99

$

Usually ships in 3-6 days

0

27

Toro AUH436231

SPRING-CENTERING

$29.99

$

Usually ships in 3-6 days

0

28

Toro AU425-1212

NUT-SLOTTED, HEX

$4.49

$

Usually ships in 3-6 days

0

29

Toro AU432-1224

PIN-3/16 X 1-1/2 COTTER ZN

$

$

Not available

30

Toro AUD128616

BUSHING-INSERT, PLASTIC

$33.99

$

Usually ships in 3-6 days

0

31

Toro AU110795A1

See Supercession: AU110795A1-03
(Superseded to AU110795A1-03)

$358.99

$

Usually ships in 3-6 days

0

32

Toro AU131967A1

WASHER-FLAT (SPECIAL)

$25.99

$

Usually ships in 3-6 days

0

33

Toro AU175086A1

SPACER-COLLAR

$

$

Currently unavailable

34

Toro AUH436303

SPRING

$94.99

$

Usually ships in 3-6 days

0

35

Toro AU426-840

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

36

Toro AU426-620

See Supercession: 323-44
(Superseded to 323-44)

$5.99

$

Usually ships in 3-6 days

0

37

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

38

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

39

Toro AU105258

HANDLE - Creep

$

$

Currently unavailable

40

Toro AU425-155

NUT-JAM

$1.49

$

Usually ships in 3-6 days

0

41

Toro AUH289652

JOINT-BALL (FEMALE)

$22.99

$

Usually ships in 3-6 days

0

42

Toro AU107334

ROD-ADUST

$48.99

$

Usually ships in 3-6 days

0

43

Toro AU103403

ROD END - Female Ball Joint LH

$

$

Currently unavailable

44

Toro AU425-156

NUT-JAM, HEX

$1.49

$

Usually ships in 3-6 days

0

45

Toro AU129-289

NUT-JAM, LH

$5.99

$

Usually ships in 3-6 days

0

46

Toro AU107344

SCREW-JACK, CONTROL

$81.99

$

Usually ships in 3-6 days

0

47

Toro AU232-4616

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

48

Toro AU232-4615

NUT-HEX

$

$

Not available

49

Toro AU426-412

BOLT

$0.99

$

Usually ships in 3-6 days

0

50

Toro AU495-11034

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

51

Toro AU426-516

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

52

Toro AU232-4114

NUT-PREV TRQ

$

$

Not available

53

Toro AU232-4115

NUT-HEX

$

$

Not available

54

Toro AU426-636

BOLT - Hex Hd .375 x 2.25 GR5 ZND

$

$

Not available

55

Toro AU103404

JOINT-BALL, LH (FEMALE)

$45.99

$

Usually ships in 3-6 days

0

56

Toro AUH423053

LINK - Strg Valve

$

$

Not available

57

Toro AUH169318

See Supercession: 9321204
(Superseded to 9321204)

$5.49

$

Usually ships in 3-6 days

0

58

Toro AU432-48

See Supercession: 3272-1
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 10

0

59

Toro AUH435694

SPACER

$44.99

$

Usually ships in 3-6 days

0

60

Toro AU139830A1

JOINT-BALL, STUD (ROD END)

$33.99

$

Usually ships in 3-6 days

0

61

Toro AUR47940

JOINT-BALL

$33.99

$

Usually ships in 3-6 days

0
