MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) Drive Line Mounting Assembly Parts Diagram

Maxi Sneaker Series E Trencher

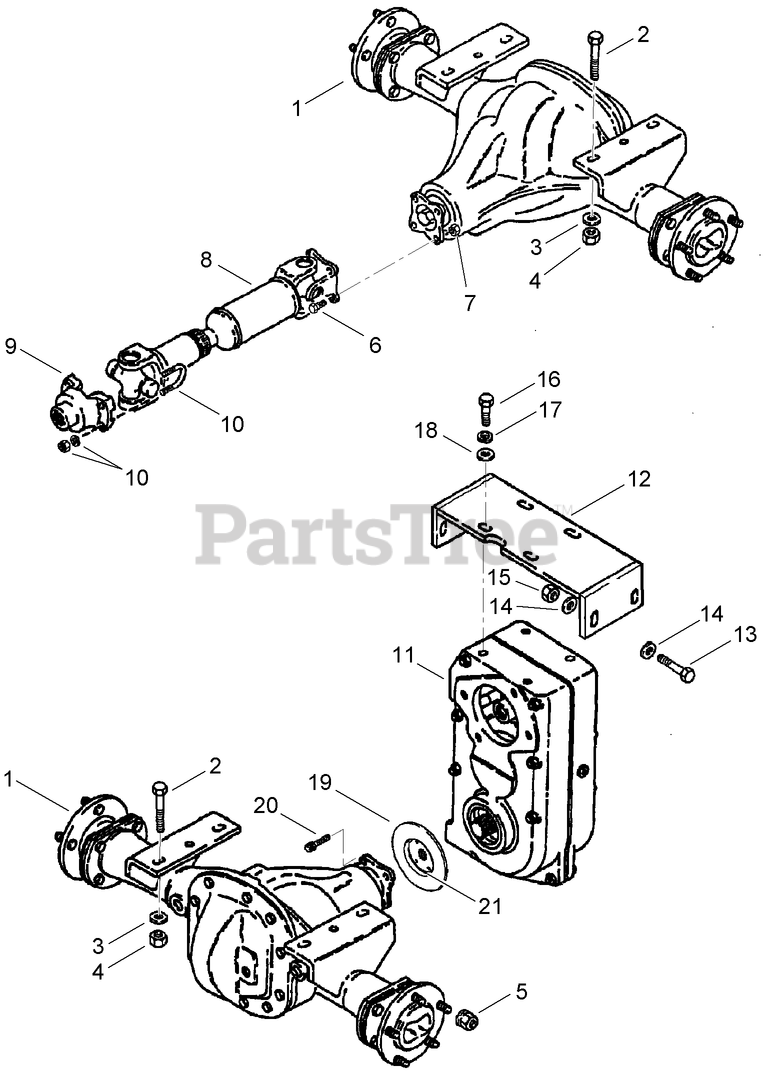

Drive Line Mounting Assembly Parts Diagram

  • Title

Toro AU111068A1

POWER TRAIN GROUP

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU110858A1

See Supercession: AU110858A1-03
(Superseded to AU110858A1-03)

$13696.99

$

Usually ships in 3-6 days

0

2

Toro AU426-928

BOLT

$2.99

$

Usually ships in 3-6 days

0

3

Toro AU896-11014

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

4

Toro AU232-4119

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

5

Toro AU131-918

NUT

$4.99

$

Usually ships in 3-6 days

0

6

Toro AUH304691

BOLT - Hex, Special, Yoke Mounting

$

$

Not available

7

Toro AU232-4616

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

8

Toro AU111086A1

DRIVE SHAFT ASM

$1095.99

$

Usually ships in 3-6 days

0

9

Toro AU131687A1

YOKE-TRANSMISSION

$

$

Not available

10

Toro AUH183566

BOLT-U (2 PER PACK)

$38.99

$

Usually ships in 3-6 days

0

11

Toro AU104951

TRANSMISSION ASM

$

$

Not available

12

Toro AU112027A1

See Supercession: AU112027A1-03
(Superseded to AU112027A1-03)

$

$

Not available

13

Toro AU426-928

BOLT

$2.99

$

Usually ships in 3-6 days

0

14

Toro AU896-11014

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

15

Toro AU232-4119

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

16

Toro AU426-820

BOLT-1/2-13 X 1-1/4 GR 8 ZND

$1.49

$

Usually ships in 3-6 days

0

17

Toro AU492-11050

See Supercession: 3253-7
(Superseded to 325-37)

$7.49

$

Usually ships in 3-6 days

0

18

Toro AUH274894

WASHER

$2.99

$

Usually ships in 3-6 days

0

19

Toro AU87403381

FLANGE-COMPANION

$1390.99

$

Usually ships in 3-6 days

0

20

Toro AU79-1612

SCREW-12 PT FLANGE

$5.99

$

Usually ships in 3-6 days

0

21

Toro AU238-5036

O-RING, SAE

$2.99

$

Usually ships in 3-6 days

0
