Maxi Sneaker Series E Trencher

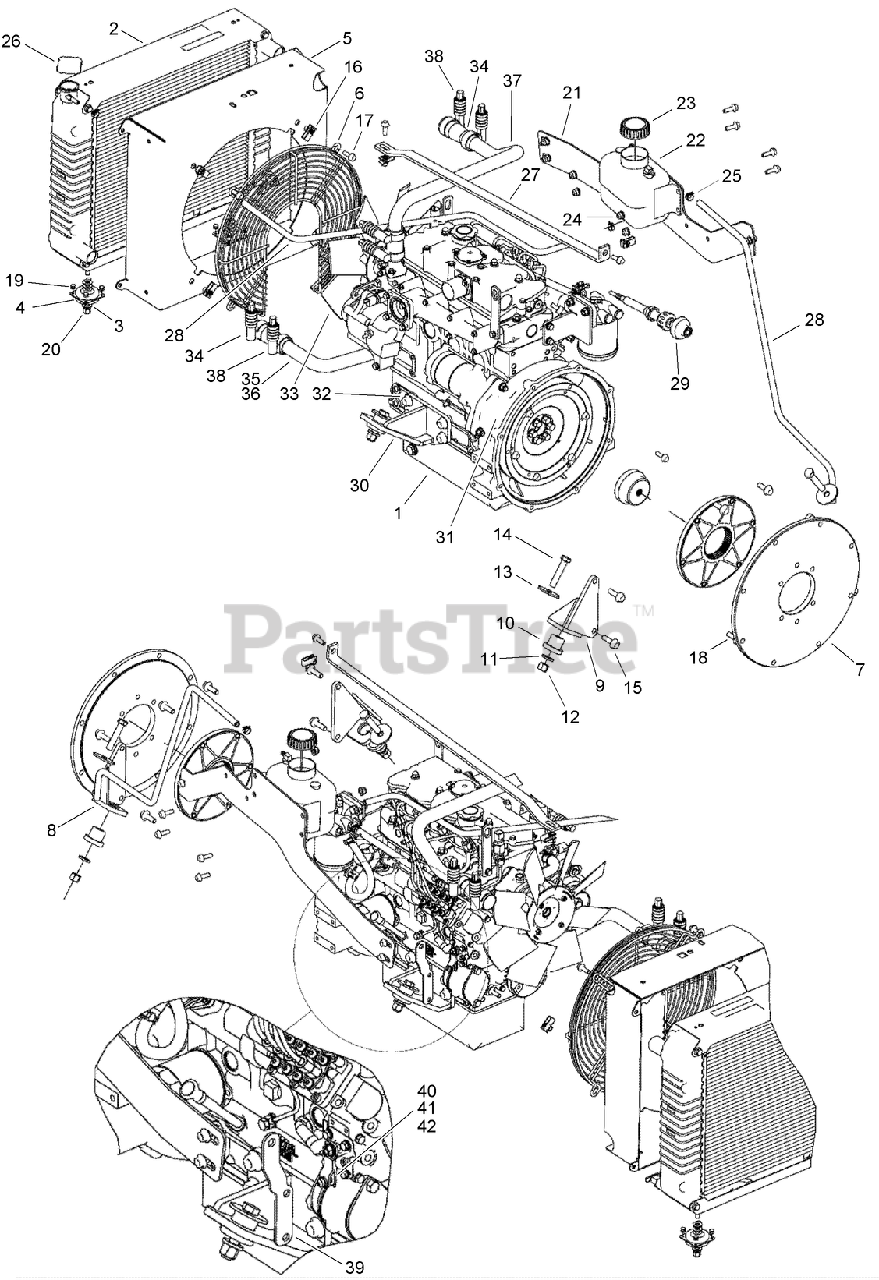

Engine and Pump Drive Coupler Mounting Assembly Parts Diagram

  • Title

Toro AU125768

GROUP - FUEL SYSTEM REF

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU125494

ENGINE - CAT C1.6

$

$

Currently unavailable

2

Toro AU125546

RADIATOR

$

$

Not available

3

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

4

Toro AUH433370

MOUNT-RADIATOR

$89.99

$

Usually ships in 3-6 days

0

5

Toro AU125486

SHROUD - Fan

$

$

Currently unavailable

6

Toro AU125574

GUARD-FINGER

$1863.99

$

Usually ships in 3-6 days

0

7

Toro AU125558

PUMP DRIVE COUPLER KIT

$1178.99

$

Usually ships in 3-6 days

0

8

Toro AU104924

WELDMENT - RR Motor Mount

$

$

Currently unavailable

9

Toro AU104923

WELDMENT - LR Motor Mount

$

$

Currently unavailable

10

Toro AUH426395

MOUNT-RUBBER

$32.99

$

Usually ships in 3-6 days

0

11

Toro AUH274894

WASHER

$2.99

$

Usually ships in 3-6 days

0

12

Toro AU232-4118

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

13

Toro AU496-81018

WASHER-FLAT

$4.99

$

Usually ships in 3-6 days

0

14

Toro AU426-840

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

15

Toro AU100878

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

16

Toro AU100862

NUT-U

$4.99

$

Usually ships in 3-6 days

0

17

Toro AU100873

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

18

Toro AU100877

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0

19

Toro AU151-539

RIVET

$0.99

$

Usually ships in 3-6 days

0

20

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

21

Toro AU113804

PLATE-OVERFLOW BOTTLE BRKT

$

$

Not available

22

Toro AU138189A1

TANK-RECOVERY, COOLANT

$101.99

$

Usually ships in 3-6 days

0

23

Toro AUA184079

See Supercession: 87-7050
(Superseded to 87-7050)

$25.99

$

In Stock, Qty 5

0

24

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

25

Toro AUA171099

See Supercession: 92-2379
(Superseded to 92-2379)

$0.99

$

In Stock, Qty 9

0

26

Toro AU105197

CAP-RADIATOR, 13 PSI

$62.99

$

Usually ships in 3-6 days

0

27

Toro AU107293

See Supercession: AU107293-03
(Superseded to AU107293-03)

$303.99

$

Usually ships in 3-6 days

0

28

Toro AU113886

HOSE-RECOVERY, COOLANT

$

$

Not available

29

Toro AU112937A1

CABLE-THROTTLE

$189.99

$

Usually ships in 3-6 days

0

30

Toro AU125521

WELDMENT - LF Motor Mount

$

$

Currently unavailable

31

Toro AU125520

WELDMENT - RF Motor Mount

$

$

Currently unavailable

32

Toro AU125538

SCREW, METRIC FLANGE w/BODY - M12 x 25

$

$

Currently unavailable

33

Toro AU125618

FAN

$510.99

$

Usually ships in 3-6 days

0

34

Toro AU125770

REDUCER - Straight, 1-3/8 - 1-1/8

$

$

Currently unavailable

35

Toro AU125773

TUBING - Radiator, Lower 1-1/8 OD x 16 Ga Wall

$

$

Currently unavailable

36

Toro AU125803

HOSE - Radiator, 28.58 ID x 76.2 Lg

$

$

Currently unavailable

37

Toro AU125772

TUBING - Radiator, Upper 1-1/8 OD x 16 Ga Wall

$

$

Currently unavailable

38

Toro AU21000940

CLAMP-TORQUE, CONSTANT

$36.99

$

Usually ships in 3-6 days

0

39

Toro AU126697

Bracket-Throttle Cable

$

$

Currently unavailable

40

Toro AU126701

PIN-THROTTLE

$71.99

$

Usually ships in 3-6 days

0

41

Toro AU490-1108

See Supercession: AU86625206
(Superseded to AU86625206)

$

$

Not available

42

Toro AU432-616

PIN-COTTER - 3/32X1 ZINC PL

$

$

Not available
