MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) Ground Drive Hydraulic Circuit Parts Diagram

Maxi Sneaker Series E Trencher

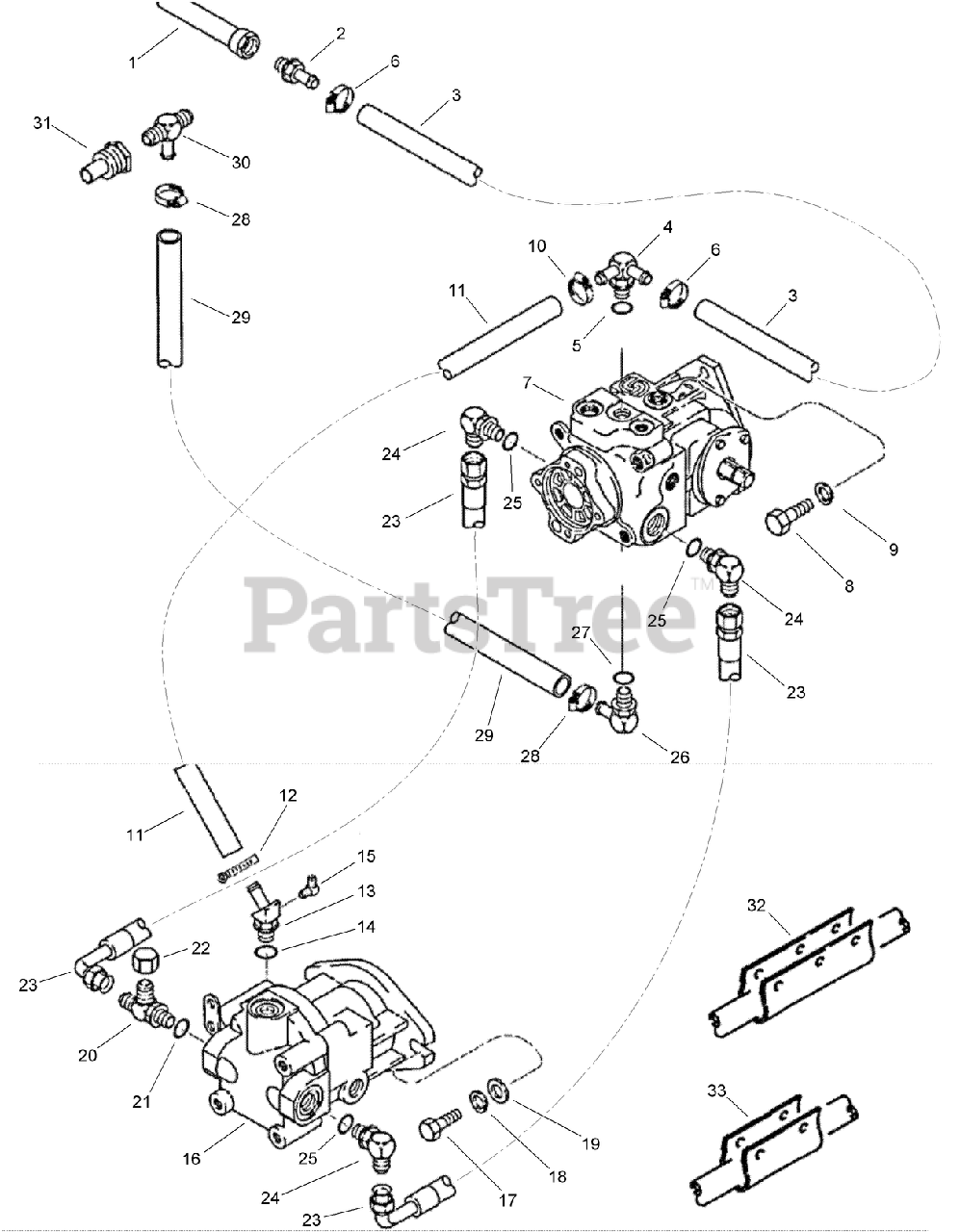

Ground Drive Hydraulic Circuit Parts Diagram

  • Title

1

Toro AUH151399

FILTER ASM

$

$

Not available

2

Toro AU217-384

FITTING-STRAIGHT

$110.99

$

Usually ships in 3-6 days

0

3

Toro AUH352237

HOSE - 368 mm (14-1/2 inch) Long (cut from H379214 bulk hose)

$

$

Currently unavailable

4

Toro AUH339762

TEE

$134.99

$

Usually ships in 3-6 days

0

5

Toro AU237-6012

O-RING, 3/4 OD TUBE CLASS 6

$

$

Not available

6

Toro AU214-1412

CLAMP-HOSE TYPE F #12

$1.49

$

Usually ships in 3-6 days

0

7

Toro AU239918A1

HYD VARIABLE PUMP ASM

$3980.99

$

Usually ships in 3-6 days

0

8

Toro AU426-820

BOLT-1/2-13 X 1-1/4 GR 8 ZND

$1.49

$

Usually ships in 3-6 days

0

9

Toro AU492-11050

See Supercession: 3253-7
(Superseded to 325-37)

$7.49

$

In Stock, Qty 20+

0

10

Toro AU214-1412

CLAMP-HOSE TYPE F #12

$1.49

$

Usually ships in 3-6 days

0

11

Toro AUH434280

HOSE-CUT MAXI

$103.99

$

Usually ships in 3-6 days

0

12

Toro AU214-1412

CLAMP-HOSE TYPE F #12

$1.49

$

Usually ships in 3-6 days

0

13

Toro AU109554

FITTING-HYD, 45 (SPECIAL)

$

$

Not available

14

Toro AU237-6010

O-RING
(Superseded to 237-80)

$7.49

$

In Stock, Qty 7

0

15

Toro AU218-5283

FITTING-90 ADJ 37FL 1/4X3/8 T

$7.49

$

Usually ships in 3-6 days

0

16

MOTOR ASSEMBLY - Ground Drive

Note: Not illustrated

$

$

Not available

16

MOTOR ASSEMBLY - Ground Drive

Note: Not serviced separately

$

$

Not available

17

Toro AU426-820

BOLT-1/2-13 X 1-1/4 GR 8 ZND

$1.49

$

Usually ships in 3-6 days

0

18

Toro AU492-11050

See Supercession: 3253-7
(Superseded to 325-37)

$7.49

$

In Stock, Qty 20+

0

19

Toro AUH274894

WASHER

$2.99

$

Usually ships in 3-6 days

0

20

Toro AU218-5185

TEE-ADJ. 3/4 TUBE 37DEG FLARE

$61.99

$

Usually ships in 3-6 days

0

21

Toro AU237-6012

O-RING, 3/4 OD TUBE CLASS 6

$

$

Not available

22

Toro AU218-335

CAP

$9.49

$

Usually ships in 3-6 days

0

23

Toro AUA148749

HOSE-PUMP TO REG. VALVE

$177.99

$

Usually ships in 3-6 days

0

24

Toro AU218-5108

FITTING-ELBOW,90

$34.99

$

Usually ships in 3-6 days

0

25

Toro AU237-6012

O-RING, 3/4 OD TUBE CLASS 6

$

$

Not available

26

Toro AU217-362

STEM-90 BEAD HOSE 3/4ID X1-5/

$62.99

$

Usually ships in 3-6 days

0

27

Toro AU237-6016

O-RING

$3.99

$

Usually ships in 3-6 days

0

28

Toro AU214-1412

CLAMP-HOSE TYPE F #12

$1.49

$

Usually ships in 3-6 days

0

29

Toro AUH383158

HOSE-CUT MAXI

$40.99

$

Usually ships in 3-6 days

0

30

Toro AUD64786

FITTING-ELBOW, LATERAL

$216.99

$

Usually ships in 3-6 days

0

31

Toro AUH428193

INDUCER-PRESSURE

$

$

Currently unavailable

32

Toro AU123989A1

BOOT-HOSE

$78.99

$

Usually ships in 3-6 days

0

33

Toro AU107409

BOOT-HOSE

$39.99

$

Usually ships in 3-6 days

0

Toro AUH379214

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro AUD55911

See Supercession: AU364360C2
(Superseded to AU364360C2)

Note: Not illustrated

$121.99

$

Usually ships in 3-6 days

0
