MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) Ground Drive Pump Assembly End Cap, Gerotor and Adapting Parts Parts Diagram

Maxi Sneaker Series E Trencher

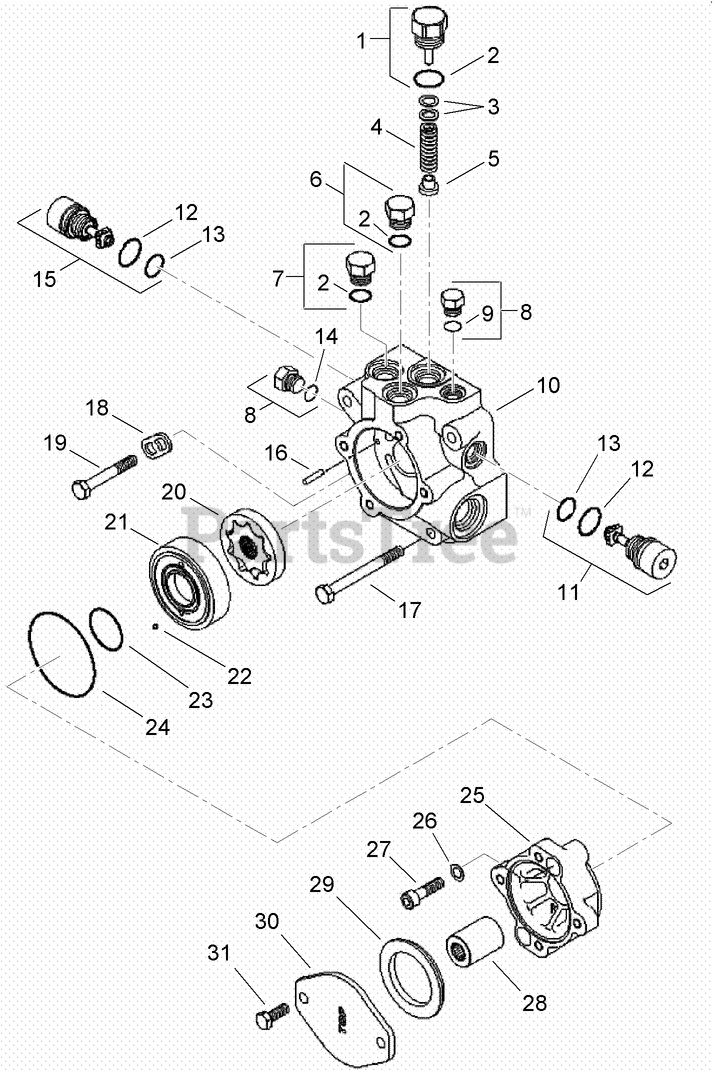

Ground Drive Pump Assembly End Cap, Gerotor and Adapting Parts Parts Diagram

  • Title

Toro AU239918A1

HYD VARIABLE PUMP ASM

Note: Not illustrated

$3980.99

$

Usually ships in 3-6 days

0

1

Toro AU234850A1

PLUG

$

$

Not available

2

Toro AU237-6010

O-RING
(Superseded to 237-80)

$7.49

$

In Stock, Qty 7

0

3

Toro AU132377A1

KIT - Charge Relief Shim

$

$

Currently unavailable

4

Toro AU124828A1

SPRING

$

$

Currently unavailable

5

Toro AUH438300

POPPET - Charge Rel

$

$

Currently unavailable

6

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

7

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

8

Toro AU218-5155

PLUG-HH

$4.49

$

Usually ships in 3-6 days

0

9

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

10

Toro AU124839A1

CAP - Pump End

$

$

Currently unavailable

11

Toro AU258793A1

POPPET - Check Valve

$

$

Not available

12

Toro AU238-5210

O-RING, 3/4 X 1 CLASS 5

$

$

Not available

13

Toro AU237-6008

See Supercession: AU128825
(Superseded to AU128825)

$

$

Not available

14

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

15

ASSEMBLY - Check Valve

Note: Not serviced separately

$

$

Not available

16

Toro AUH351445

PIN

$

$

Not available

17

Toro AU827-10080

BOLT-M10 X 80 10.9 ZND

$

$

Not available

18

Toro AU100703A1

BRACKET-Lifting

$

$

Currently unavailable

19

Toro AU827-10065

BOLT - M10 x 65

$

$

Currently unavailable

20

Toro AU124842A1

GEROTOR

$

$

Not available

21

Toro AU124843A1

SPACER

$

$

Not available

22

Toro AU211-1006

See Supercession: AU211-204

$

$

Not available

23

Toro AU234848A1

O-RING

$17.99

$

Usually ships in 3-6 days

0

24

Toro AU234849A1

O-RING

$21.99

$

Usually ships in 3-6 days

0

25

Toro AU124844A1

ADAPTER

$1439.99

$

Usually ships in 3-6 days

0

26

Toro AU124845A1

WASHER

$5.49

$

Usually ships in 3-6 days

0

27

Toro AU862-10040

SCREW-M10 X 40 CLASS 12.9 ZND

$

$

Not available

28

Toro AU124846A1

COUPLING

$176.99

$

Usually ships in 3-6 days

0

29

Toro AU251661A1

See Supercession: 107-4377
(Superseded to 107-4377)

$82.99

$

Usually ships in 3-6 days

0

30

Toro AUH438063

PLATE - Cover

$

$

Currently unavailable

31

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0
