MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) Hydra-Borer Attachment Universal Joint Assembly Parts Diagram

Maxi Sneaker Series E Trencher

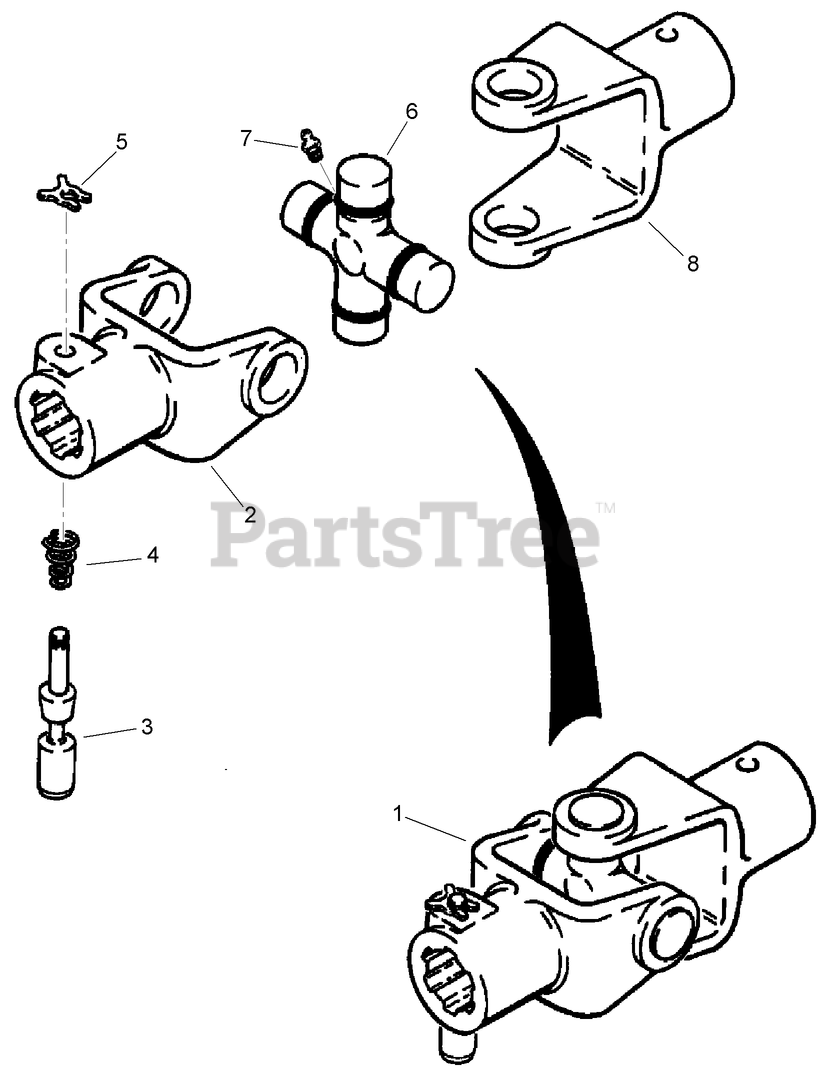

Hydra-Borer Attachment Universal Joint Assembly Parts Diagram

  • Title

1

Toro AUH511113

See Supercession: AUH511113-03
(Superseded to AUH511113-03)

$406.99

$

Usually ships in 3-6 days

0

Toro AUH71142

YOKE

Note: Not illustrated

$324.99

$

Usually ships in 3-6 days

0

2

YOKE - Splined

Note: Not serviced separately

$

$

Not available

Toro AUH658179

KIT-REPAIR

Note: Not illustrated

$125.99

$

Usually ships in 3-6 days

0

Toro AU182951A1

KIT-REPAIR

Note: Not illustrated

$47.99

$

Usually ships in 3-6 days

0

3

PIN - Retainer

Note: Not serviced separately

$

$

Not available

4

WASHER - Special

Note: Not serviced separately

$

$

Not available

5

RING - Snap, Pin Retaining

Note: Not serviced separately

$

$

Not available

Toro AUH71167

JOURNAL

Note: Not illustrated

$107.99

$

Usually ships in 3-6 days

0

6

CROSS - Universal Joint

Note: Not serviced separately

$

$

Not available

7

Toro AU219-11

FITTING-GREASE, 1/4-28

$4.99

$

Usually ships in 3-6 days

0

8

Toro AUH71159

YOKE

$249.99

$

Usually ships in 3-6 days

0
