Maxi Sneaker Series E Trencher

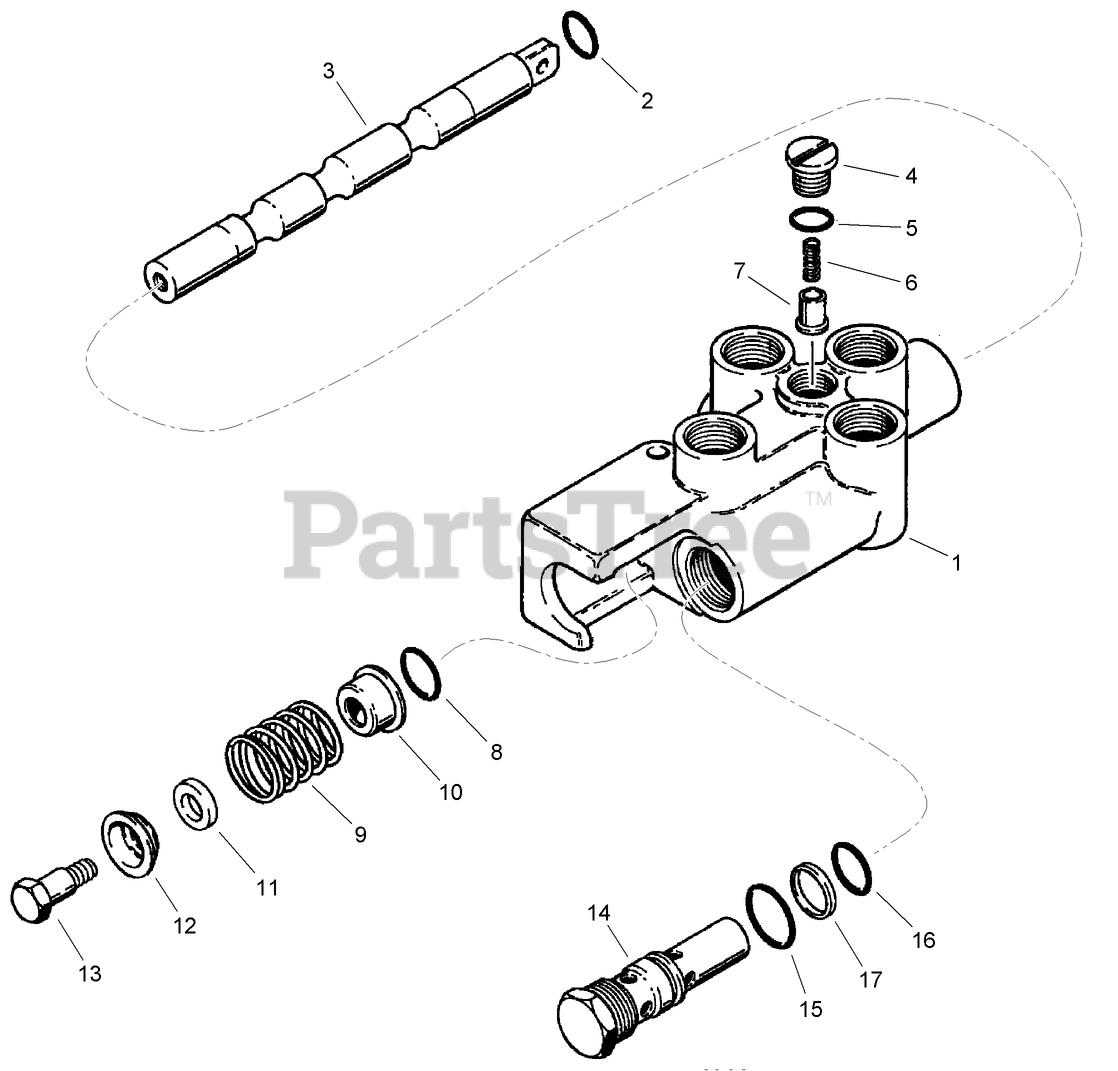

Hydra-Borer Control Valve Assembly Parts Diagram

  • Title

Toro AU107110A1

SINGLE SPOOL VALVE ASM

Note: Not illustrated

$

$

Not available

1

BODY - Control Valve

Note: Not serviced separately

$

$

Not available

2

Toro AU114313A1

O-RING

$3.99

$

Usually ships in 3-6 days

0

3

Toro AUT55119

SPOOL - Valve

$

$

Currently unavailable

Toro AUH47506

PLUG ASM

Note: Not illustrated

$

$

Not available

4

PLUG - Load Check

Note: Not serviced separately

$

$

Not available

5

Toro AU238-7112

See Supercession: AU238-5112
(Superseded to AU238-5112)

$0.99

$

Usually ships in 3-6 days

0

6

Toro AUFH730374

SPRING - Load Check Valve

$

$

Currently unavailable

7

Toro AUFH730366

PLUNGER

$55.99

$

Usually ships in 3-6 days

0

8

Toro AU114314A1

O-RING

$5.99

$

Usually ships in 3-6 days

0

9

Toro AUH52928

SPRING

$

$

Not available

10

Toro AUH52902

WASHER

$

$

Not available

11

Toro AUH746164

WASHER

$2.99

$

Usually ships in 3-6 days

0

12

Toro AUF59116

WASHER

$12.99

$

Usually ships in 3-6 days

0

13

Toro AUH428292

BOLT - Hex, Special, Special, Spool

$

$

Not available

Toro AUN8813

DISCONTINUED

Note: Not illustrated

$

$

Not available

14

VALVE - Relief, Control Valve

Note: Not serviced separately

$

$

Not available

15

Toro AU238-5116

O-RING-3/4 ID x 3/32 inch wide

$

$

Not available

16

Toro AU238-5114

O-RING
(Superseded to 60-5720)

$2.99

$

Usually ships in 3-6 days

0

17

Toro AUG32626

RING - Backup, Plug O-Ring

$

$

Not available
